AR46.10-P-0300T Remove/Install Steering Angle Sensor

Remove/Install Steering Angle Sensor

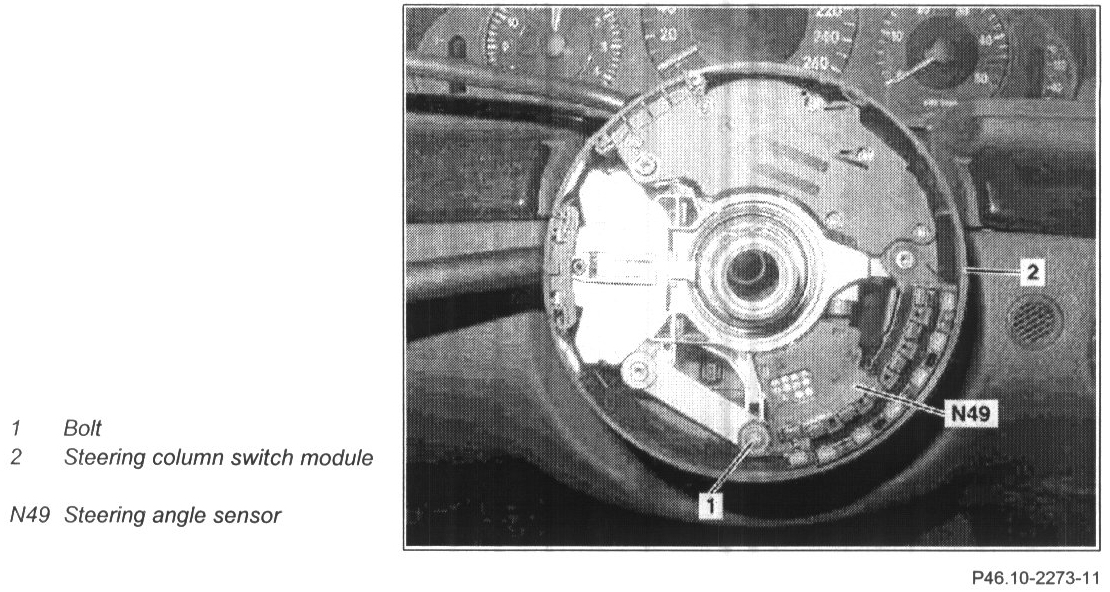

1 Remove clock spring contact
2 Unscrew bolt (1)
3 Remove steering angle sensor (N49) from steering column switch module (2)
4 Install in the reverse order.
