AR54.25-P-2803TA Remove/Install Cruise Control Switch
AR54.25-P-2803TA Remove/Install Cruise Control Switch
AR54.25-P-2803TA Remove/Install
Cruise Control Switch

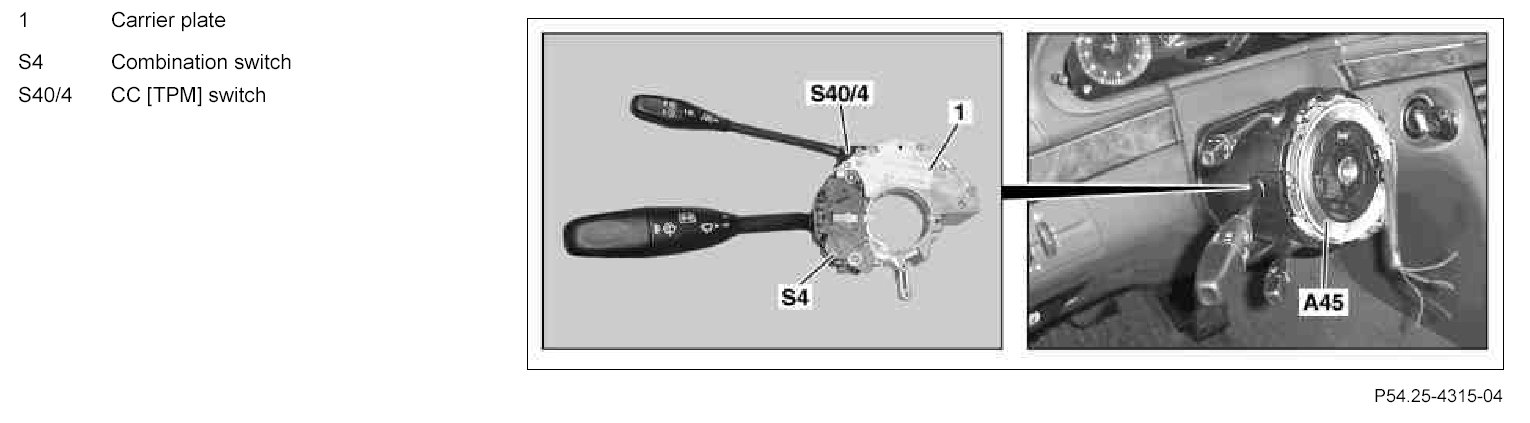

Component Identification:

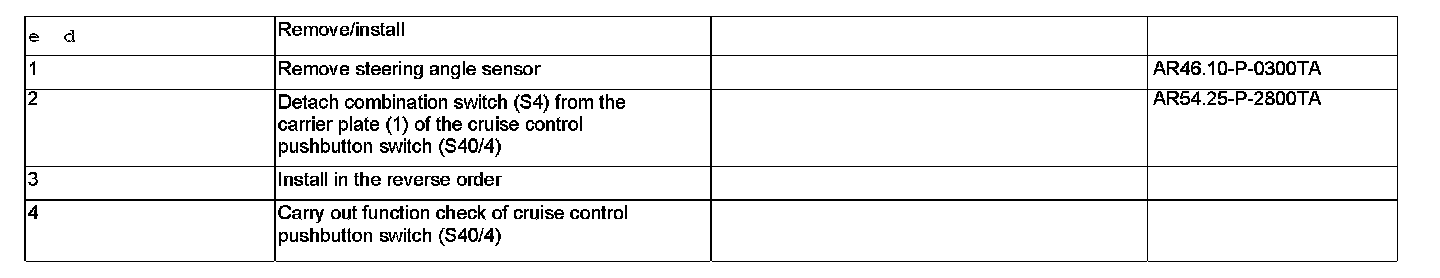

Steps 1 - 4:
