Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Pump >> Service and Repair >> AR82.35-P-6002P Remove/Install Windshield Washer System Pump

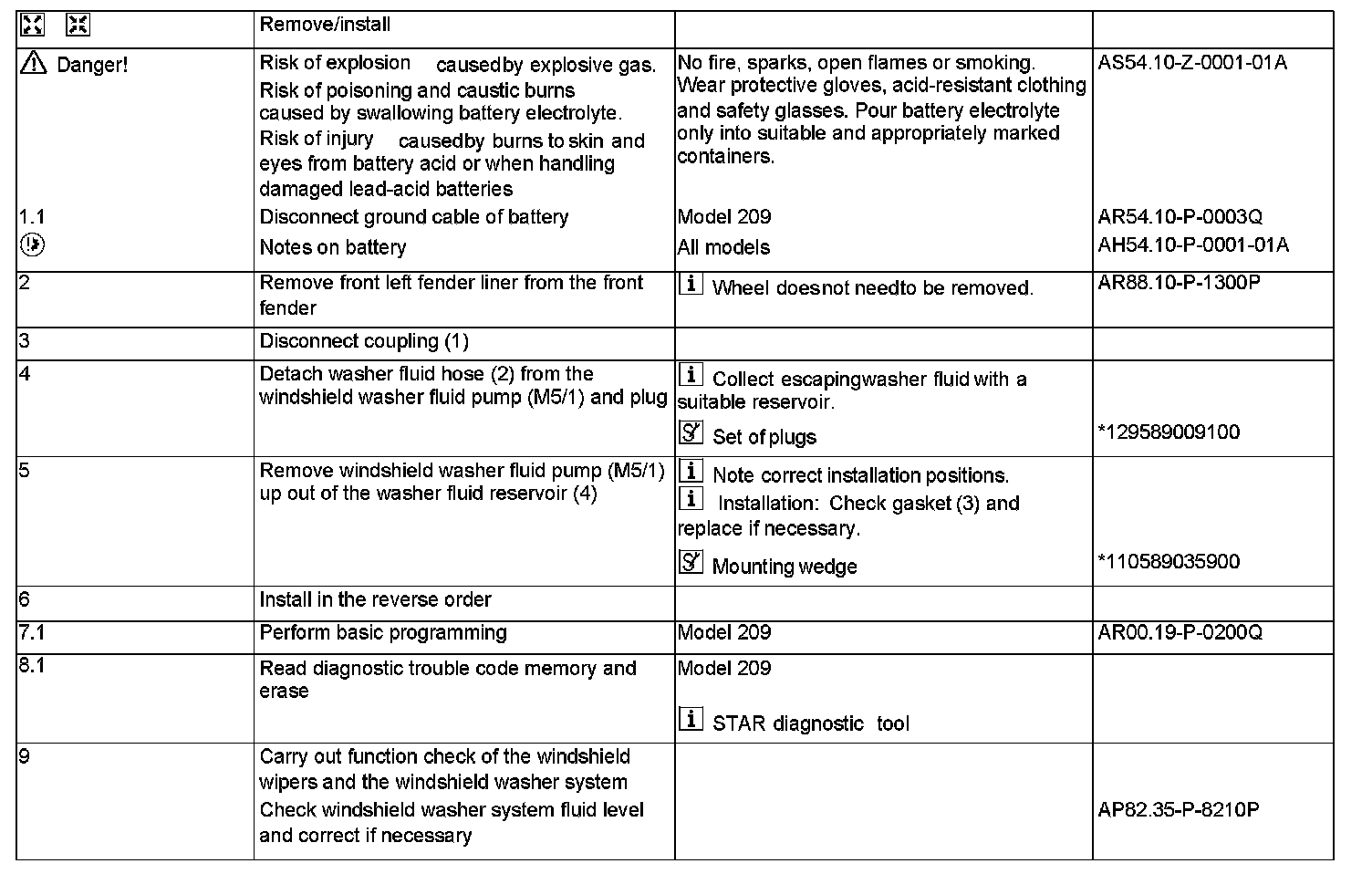

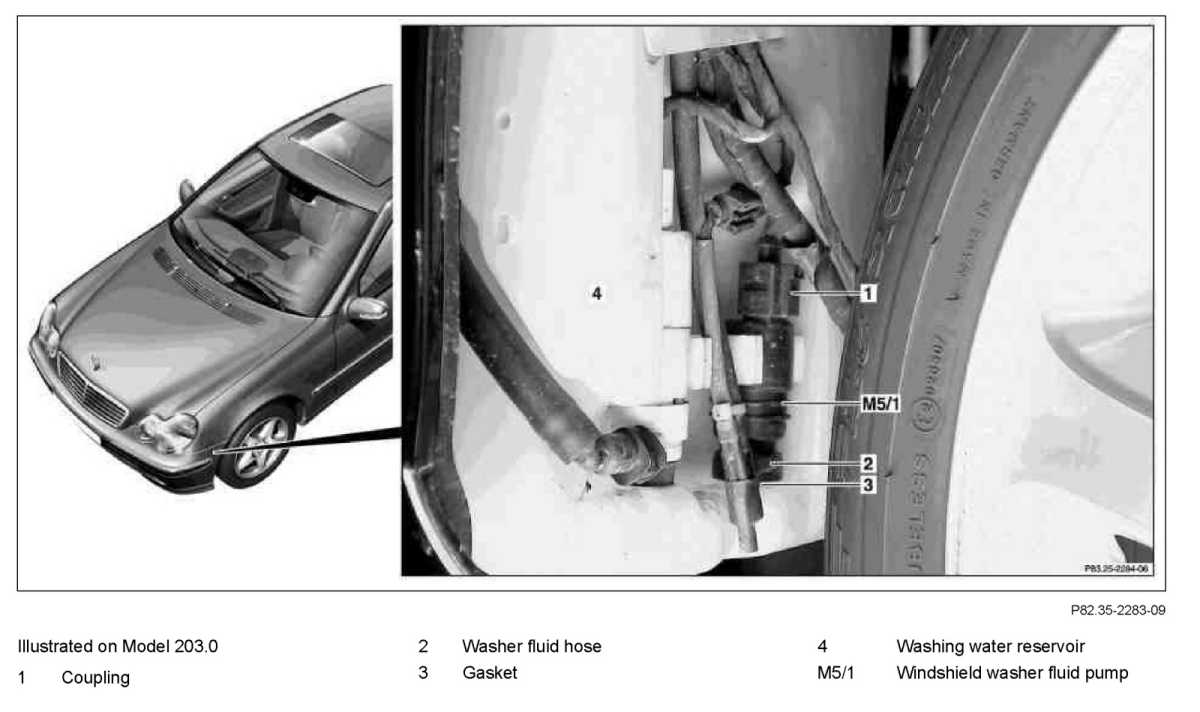

AR82.35-P-6002P Remove/Install Windshield Washer System Pump



AR82.35-P-6002P Remove/Install Windshield Washer System Pump
- except CODE (P98) Black Series [model 209]
