GF82.30-P-3004Q Windshield Wiper, Function

GF82.30-P-3004Q Windshield Wiper, Function

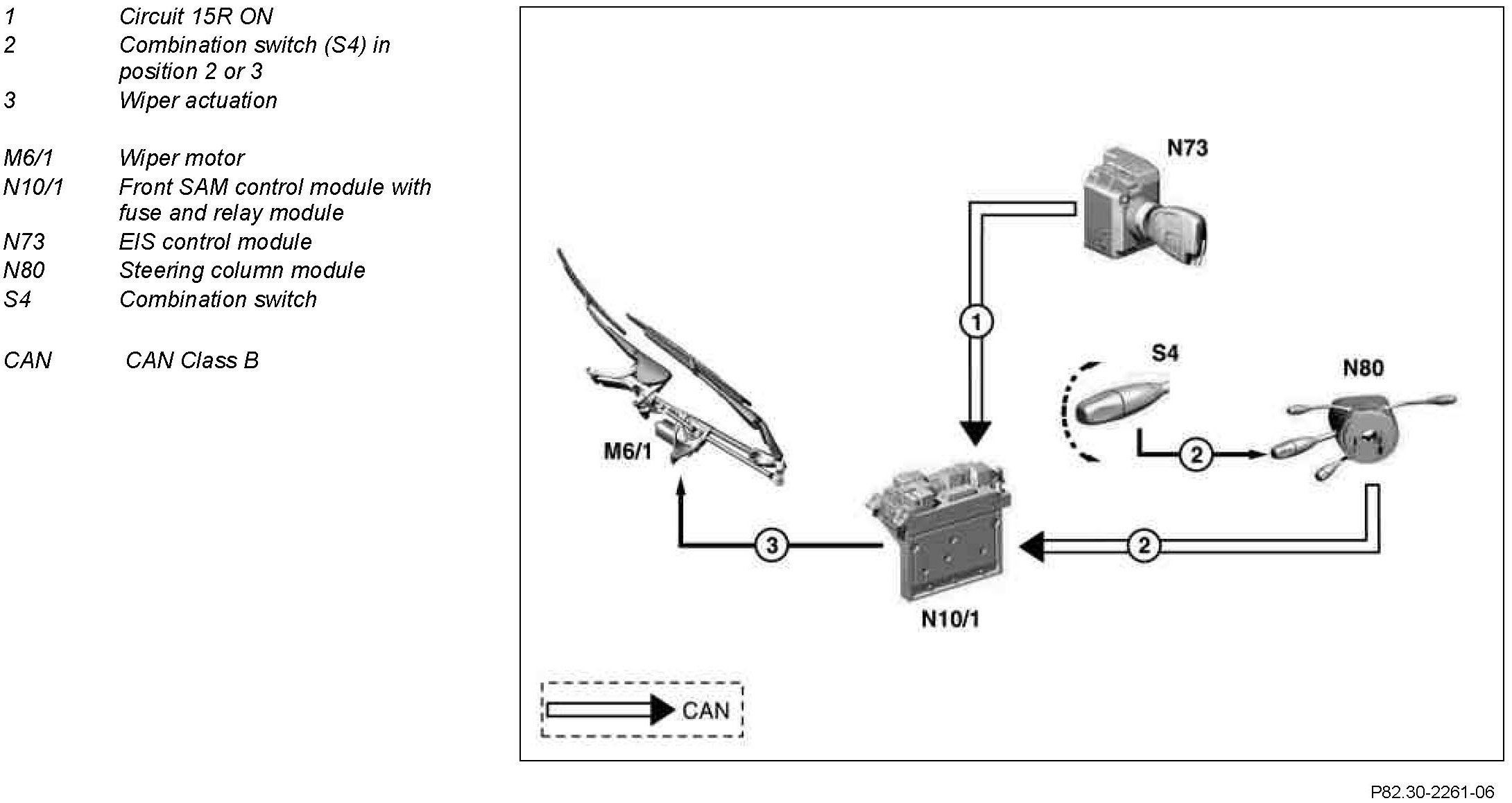

Component Identification:

Function prerequisites:
^ Circuit 15R ON

Function Continuous wiping at slow speed (stage 1) or fast speed (stage 2)

For continuous wiping at a slow speed, turn the combination switch (S4) to position "2".
For continuous wiping at a fast speed, turn the combination switch (S4) to position "3".

The wiper system, and thus the wiper motor (M6/1), is informed of the wiper speed by the front SAM control module with fuse and relay module (N10/1) via the serial interface. Wiper operation is not influenced by one-touch or afterwiping. The front SAM control module with fuse and relay module (N10/1) receives messages via CAN class B from the steering column module (N80).
