AR67.30-P-4200-08Q Adjust Short Stroke on Rear Side Window

AR67.30-P-4200-08Q Adjust Short Stroke On Rear Side Window

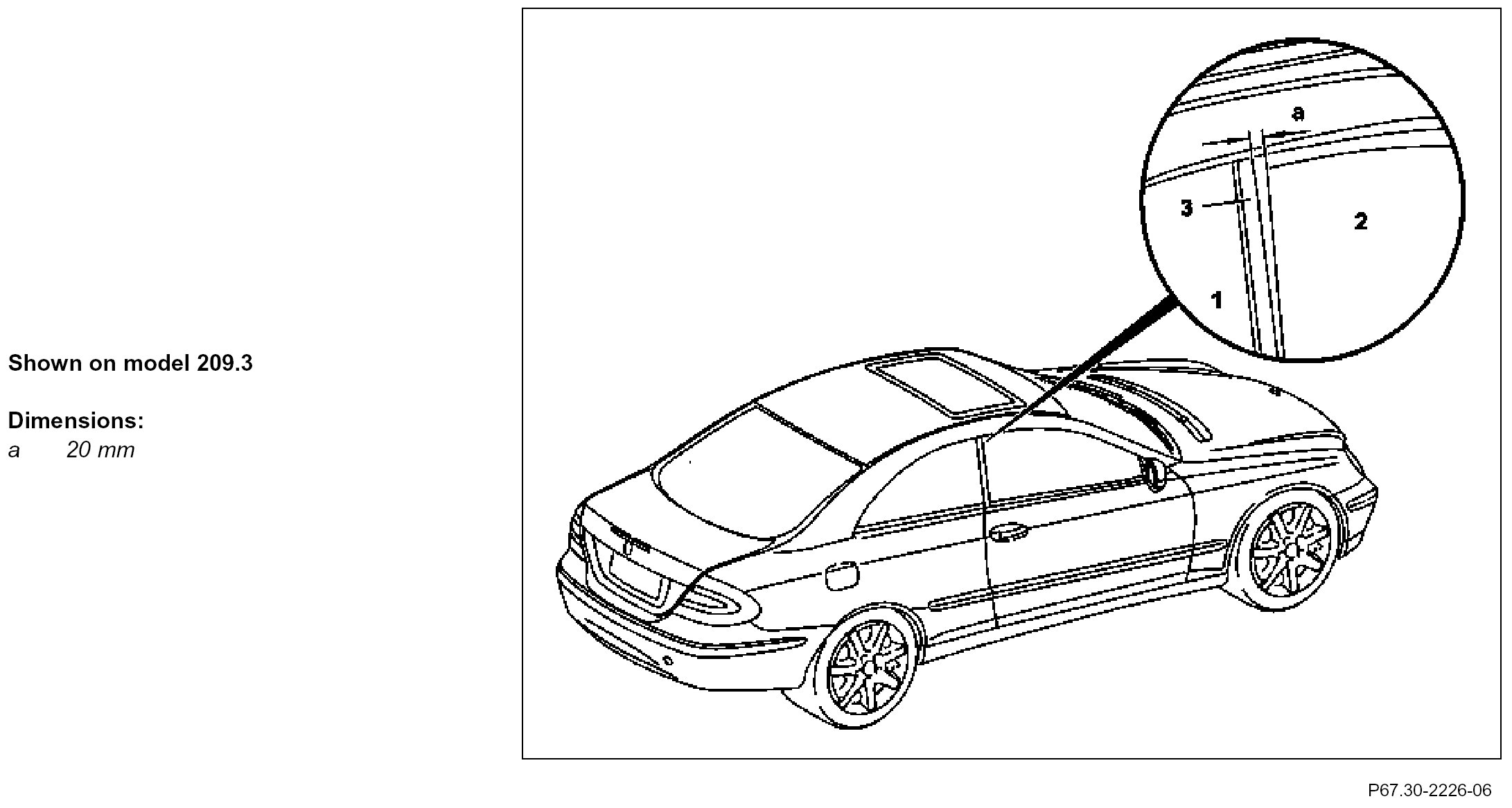

Component Identification:

1. Adjust short stroke on rear side window (1) in relation to front door window (2).
Dimension a for short stroke position should be maximum 20 mm.
The front door must arrest in the first catch of the door lock to adjust the rear side window (1).
