AR67.30-P-4200-03Q Adjust Tension of Rear Side Window

AR67.30-P-4200-03Q Adjust Tension Of Rear Side Window

Special Tools:

1. Remove rub strip on rear fender.

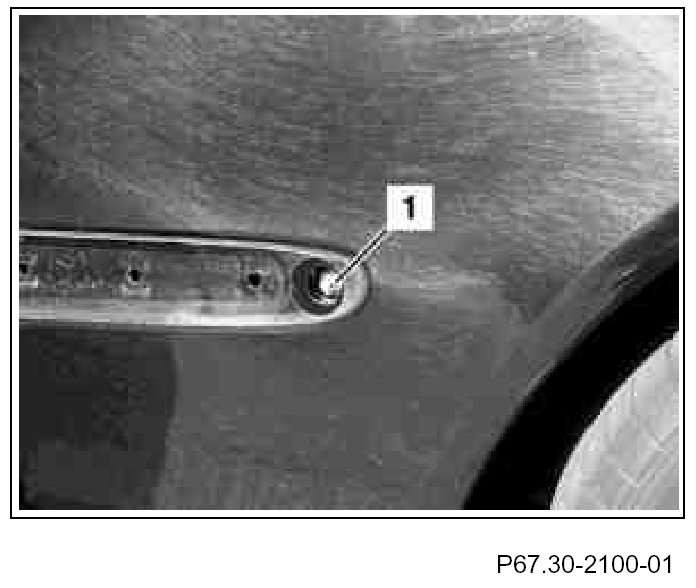

2. Adjustment by means of adjustment screw (1) with socket wrench.
The upper edge of the rear window web seal must run centrally into the roof frame seal when raising the rear side window.

3. Check preload.
