AR67.30-P-4200-02Q Adjust Window Transition of Rear Side Window

AR67.30-P-4200-02Q Adjust Window Transition Of Rear Side Window

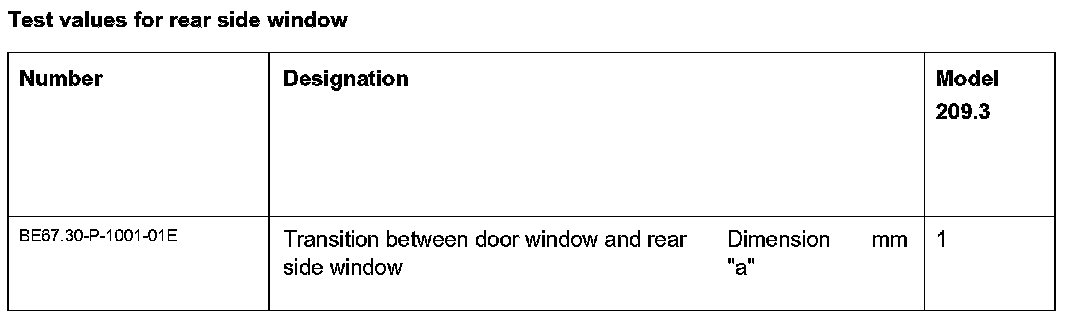

Test Values For Rear Side Window:

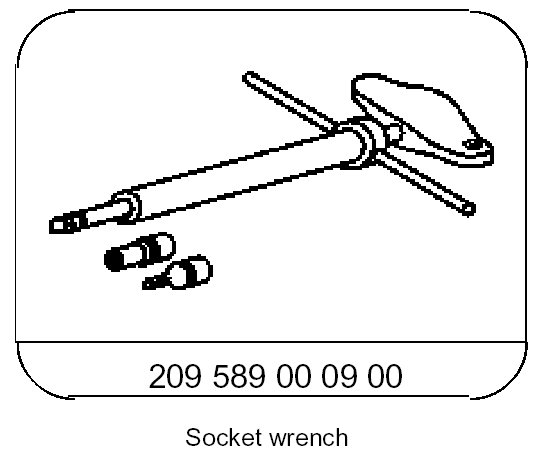

Special Tools:

1. Check dimension "a" between door window (1) and rear side window stay (2)

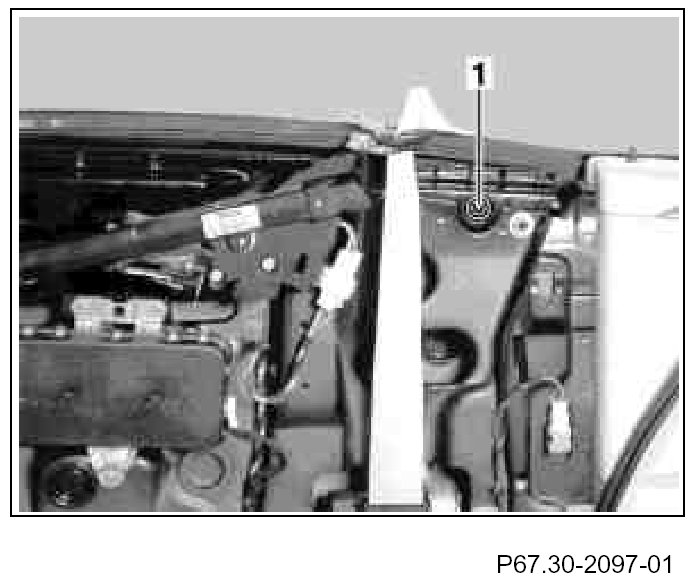

2. Adjustment by means of adjustment screw (1) with socket wrench.
If transition cannot be created: Adjust driver's door with upper power window mounting point by opening behind SRS badge with socket wrench.
