Heated Glass Element: Diagrams



Function Schematic For Heated Rear Window Electrical System PE67.29-U-2050BA

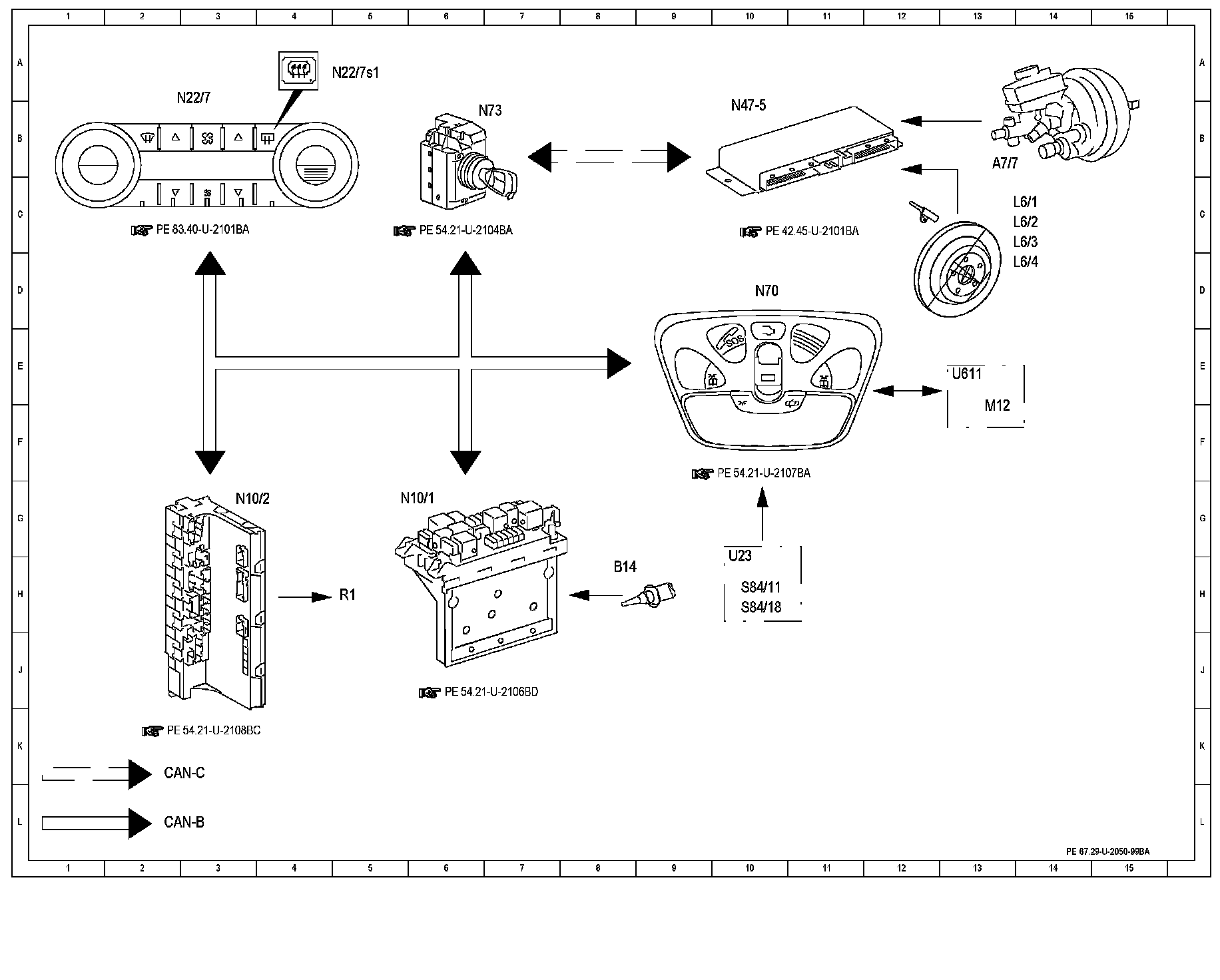

Function Diagram:

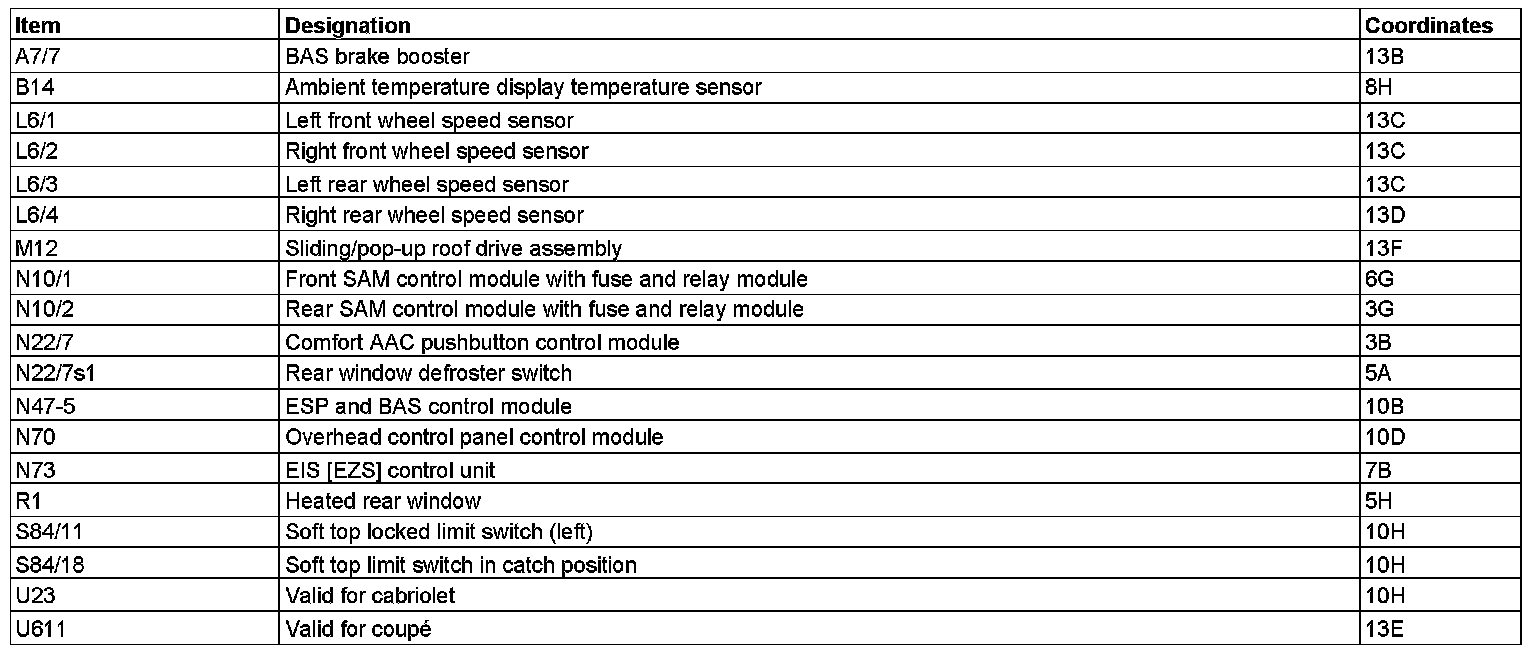

Component Description/Coordinates, A7/7 To U611:
