AR41.10-P-0050-07EA Mount Front Propeller Shaft to Transmission



AR41.10-P-0050-07EA Mount front propeller shaft to transmission

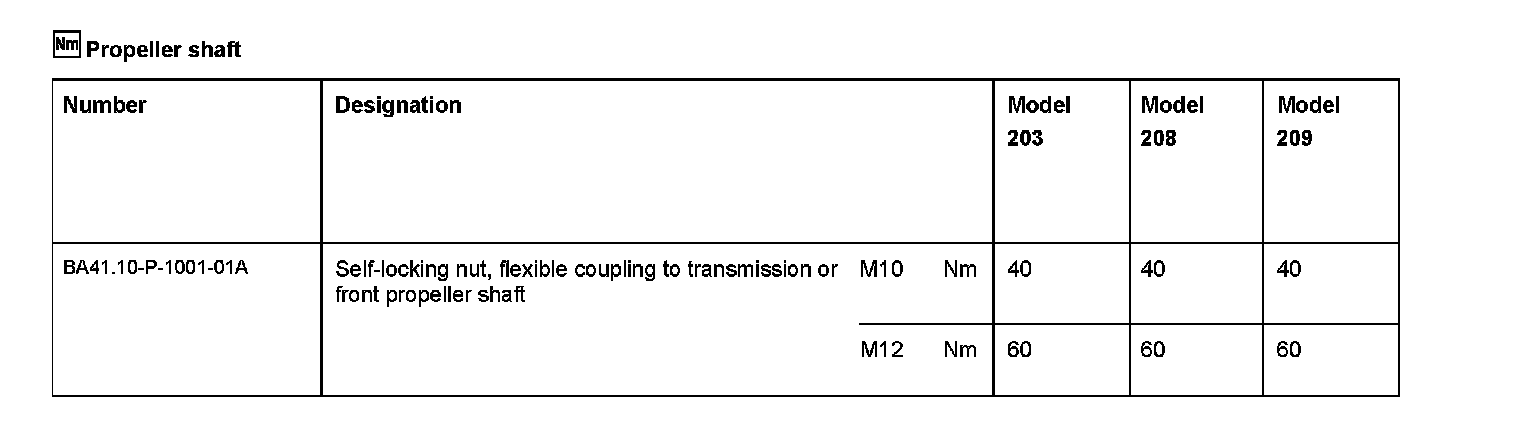

Propeller shaft:

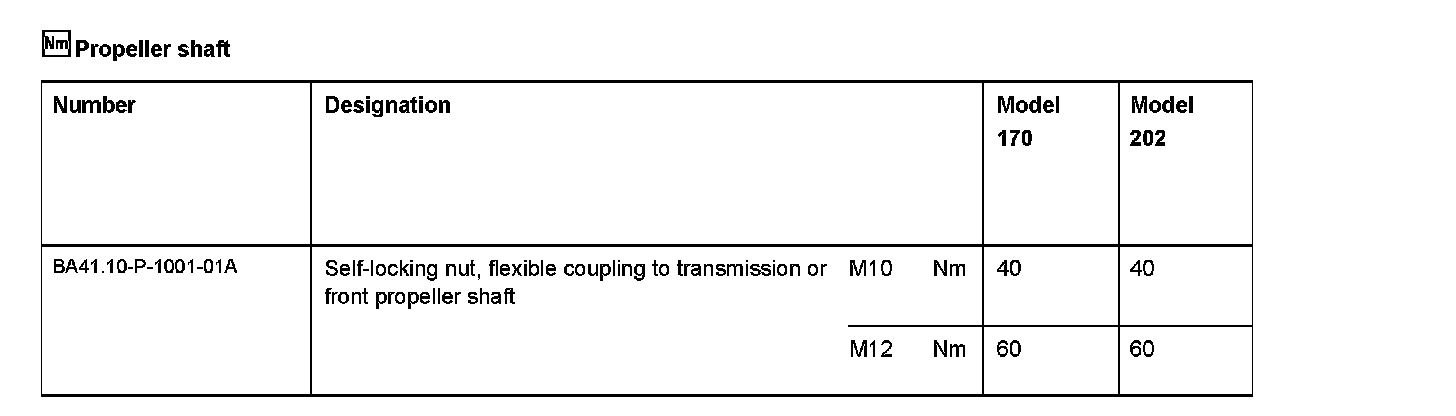

Propeller shaft:

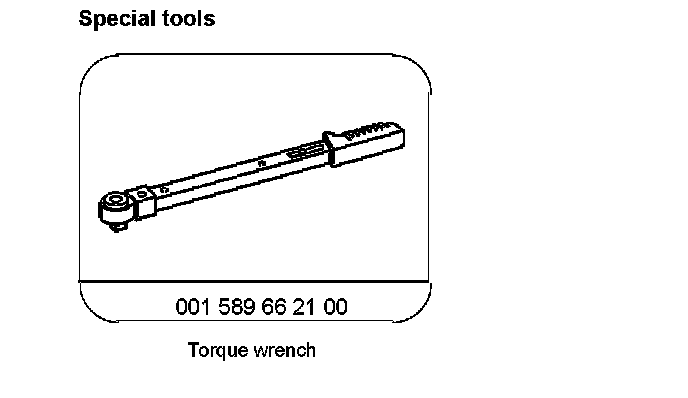

Special tools:

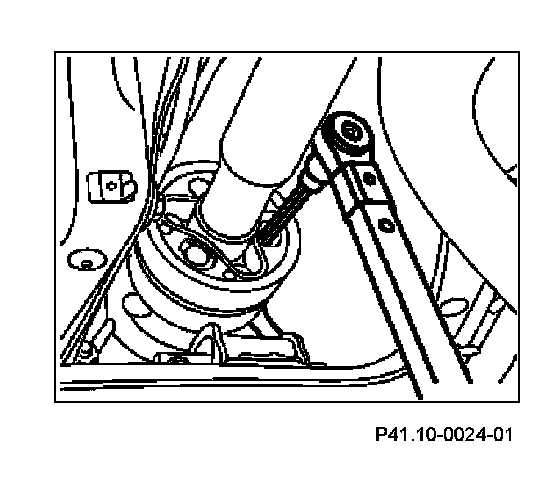

1 Connect front propeller shaft to transmission(!)

Replace self-locking nuts in order to rule out automatic loosening of the connection.
