AR41.10-P-0050-04EA Mount Rear Propeller Shaft to Rear Axle Center Assembly

AR41.10-P-0050-04EA Mount rear propeller shaft to rear axle center assembly

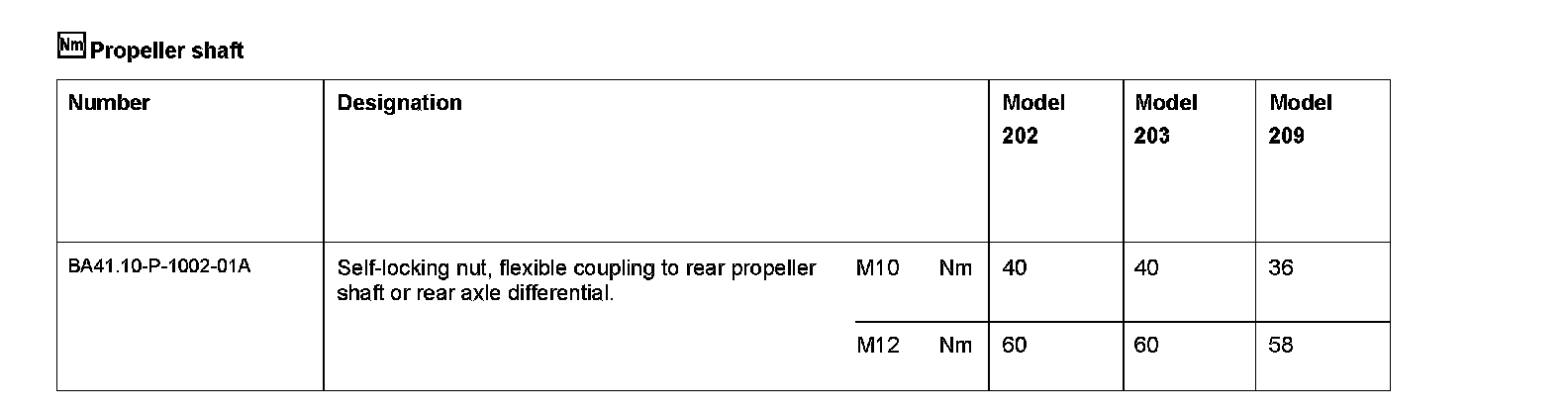

Propeller shaft:

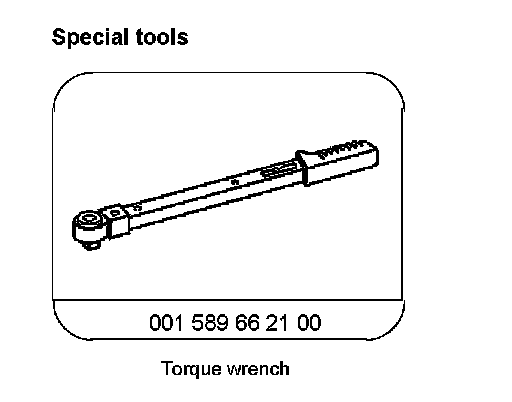

Special Tools:

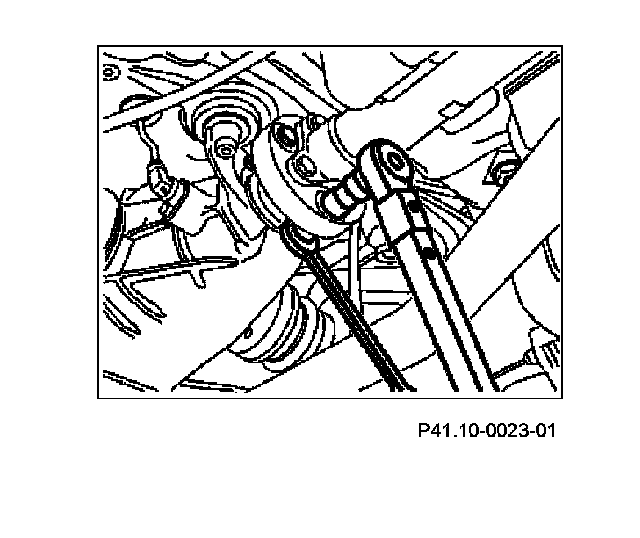

1 Connect rear propeller shaft to rear axle center assembly.

Install new self-locking nuts to prevent propeller shaft from working loose.

Illustrated on model 202.1
