AR41.10-P-0050-02EA Dismantle Front Propeller Shaft From Transmission



AR41.10-P-0050-02EA Dismantle front propeller shaft from transmission

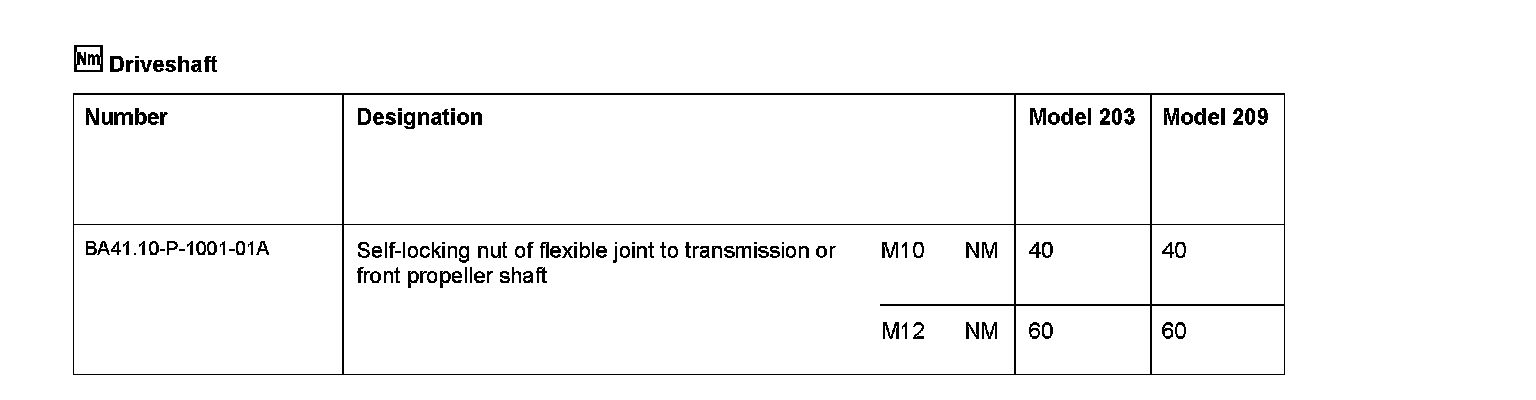

Driveshaft

Driveshaft:

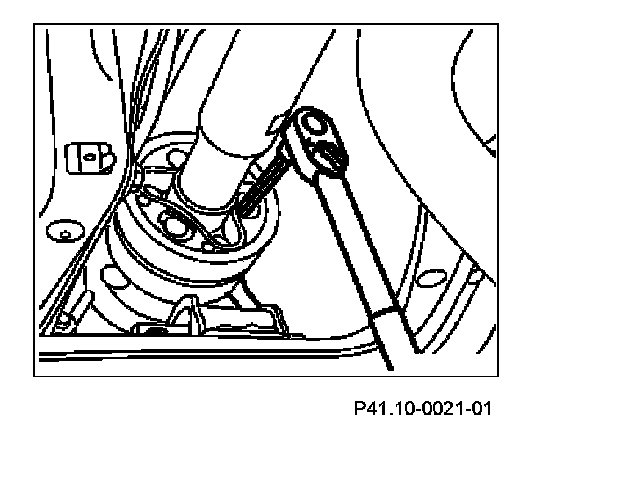

1 Dismantle front propeller shaft from transmission.

Flexible disk remains on propeller shaft

Shown with mass damper
