AR35.31-P-0550-03PA Removing and Inserting Differential In Rear Axle Housing



AR35.31-P-0550-03PA Removing and inserting differential in rear axle housing
- Rear axle center assembly dia. 185, 198, 210


Component Identification:

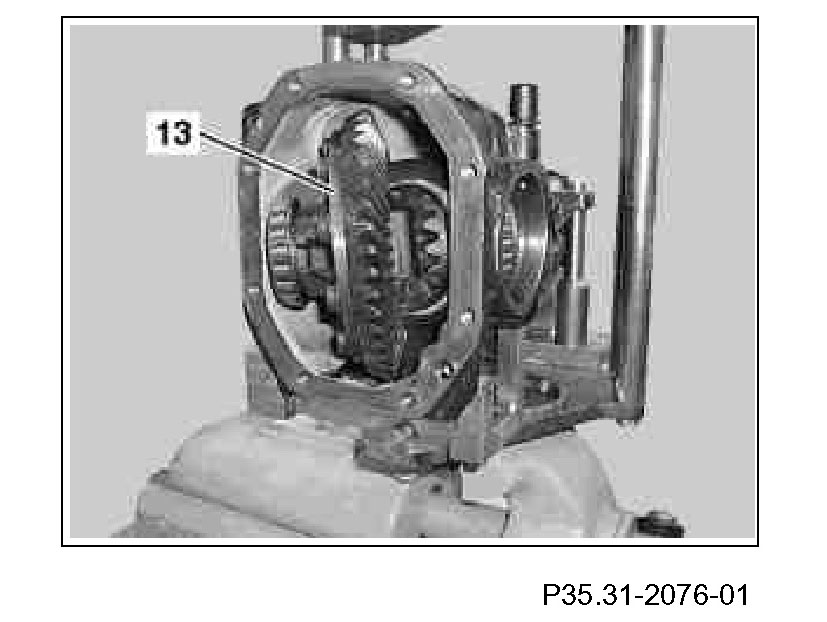

1 Move the differential (13) into the position shown and remove or insert at the rear axle housing.
