AR35.31-P-0560A Disassemble/Assemble Differential

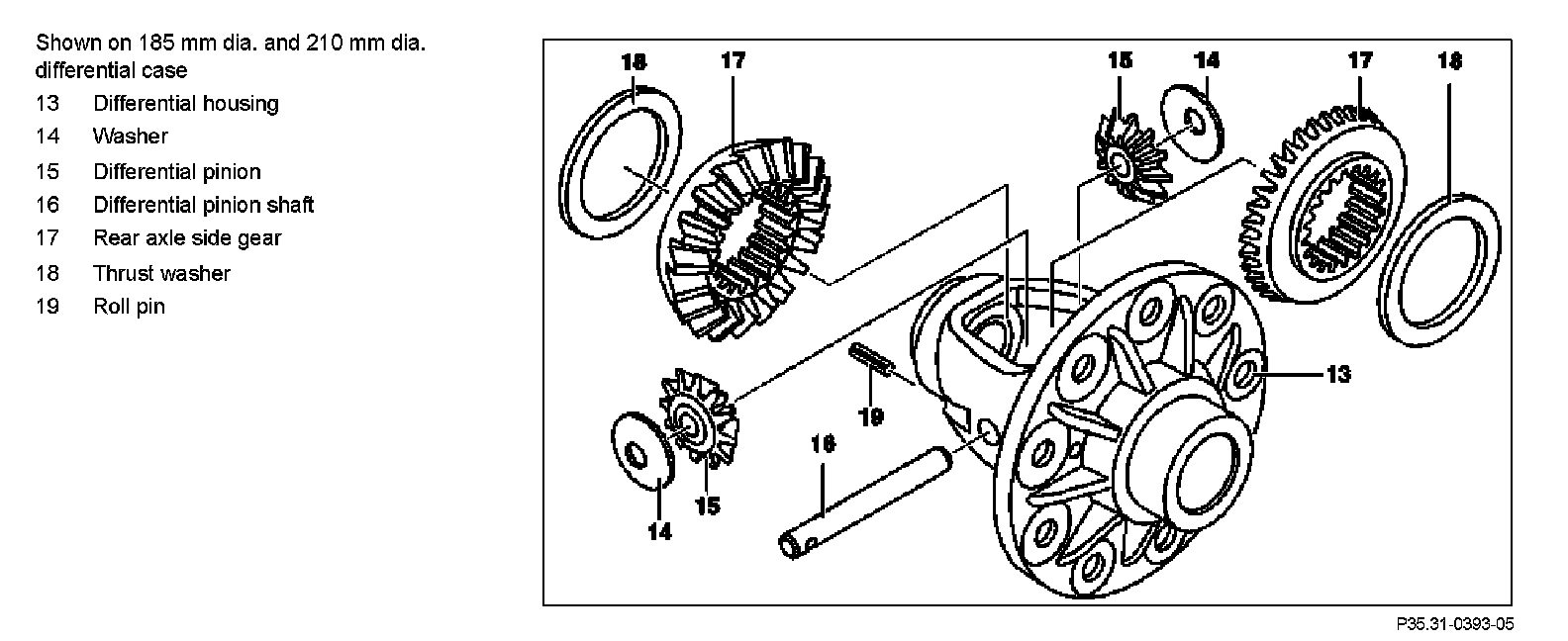

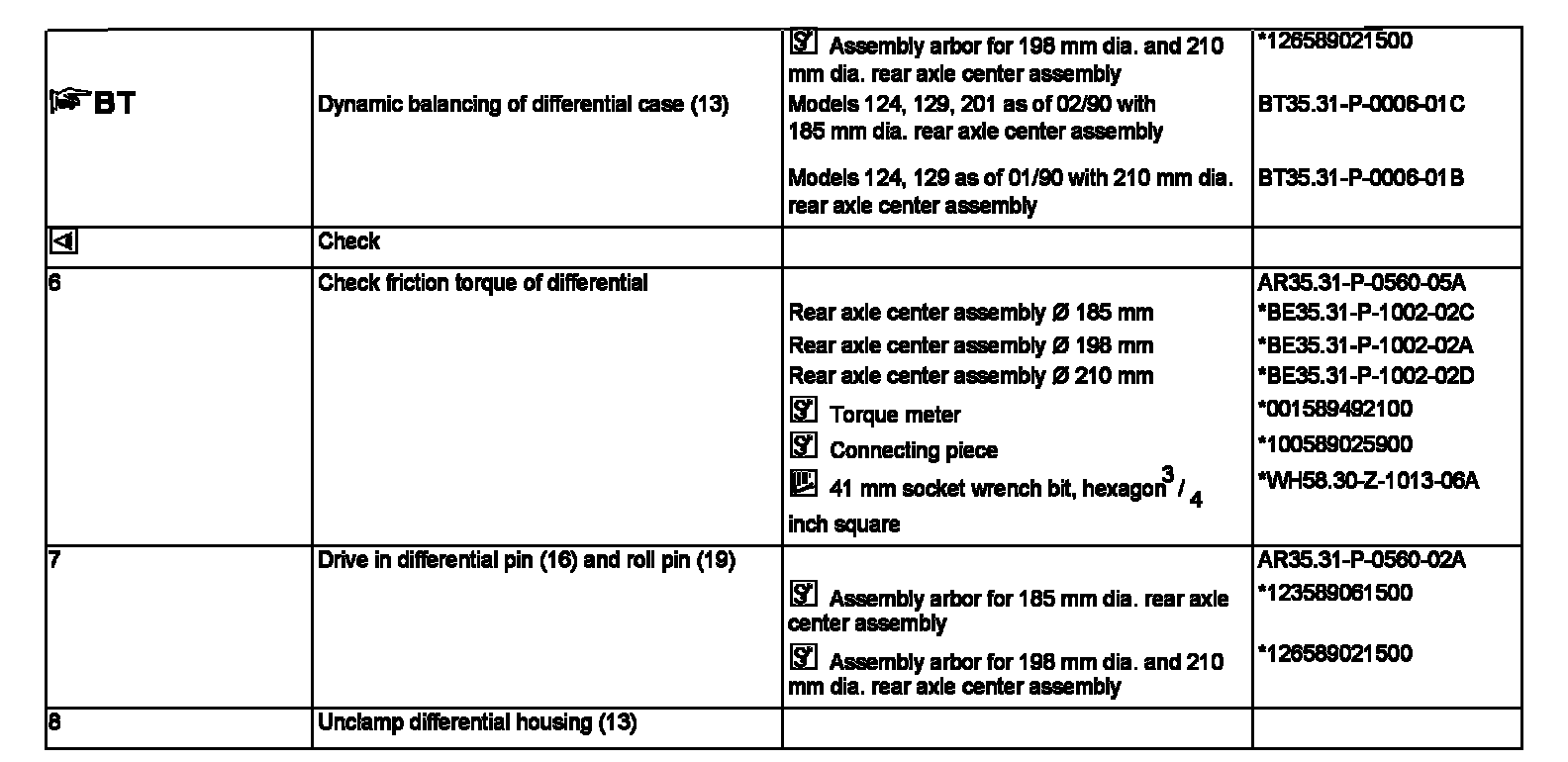

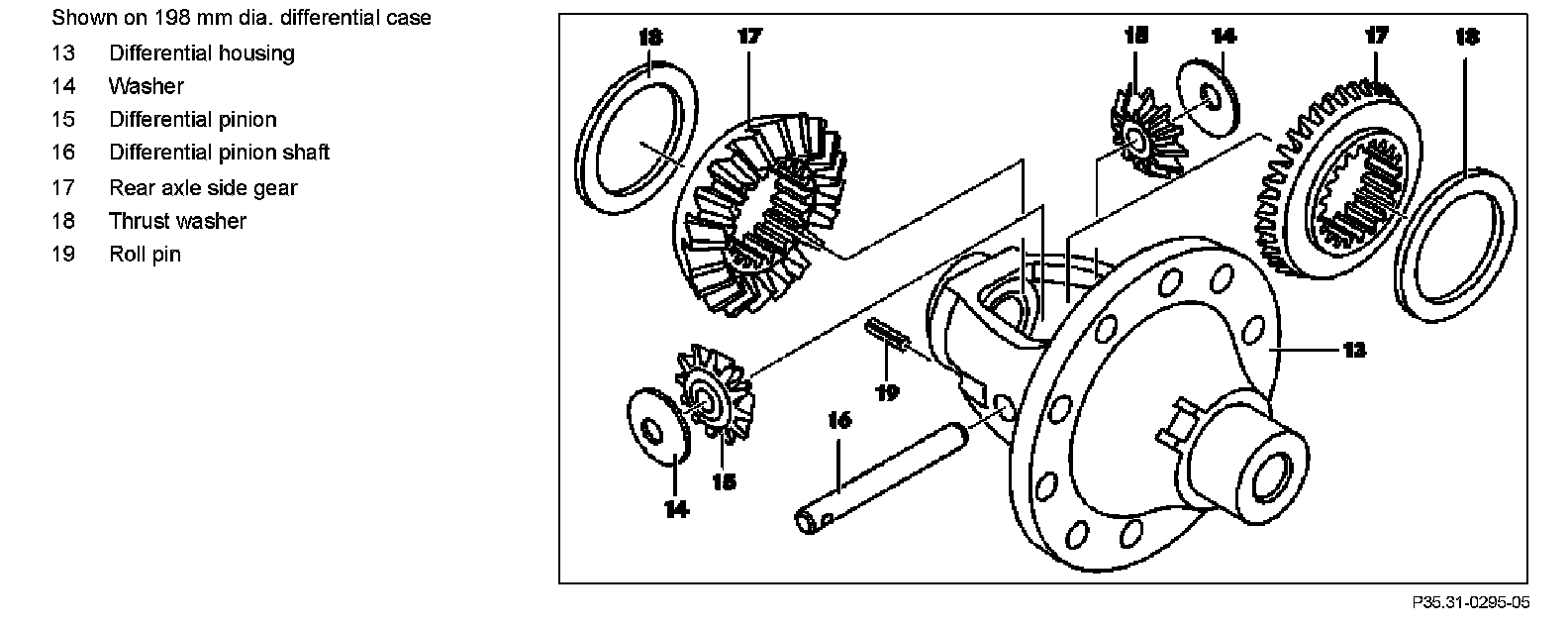

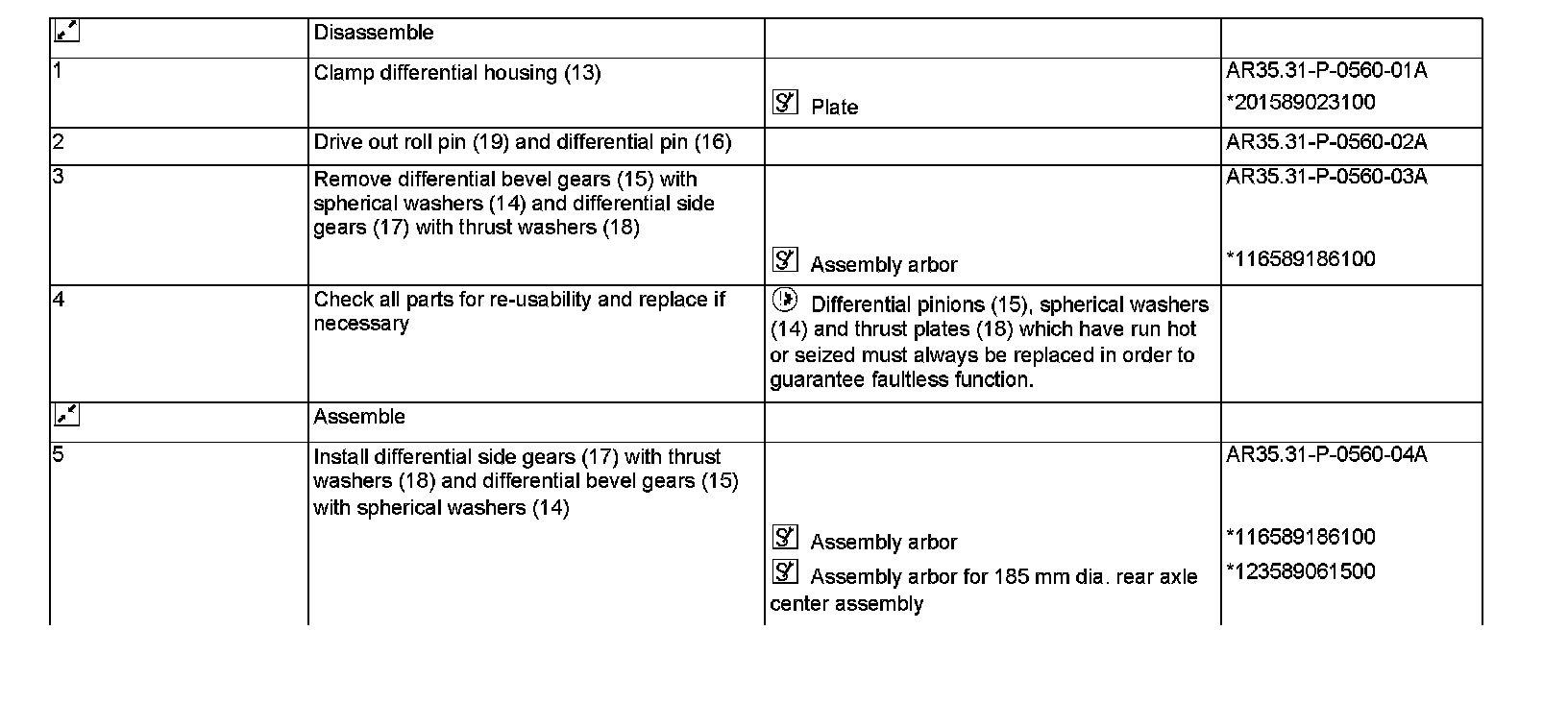

Disassembling and assembling differential

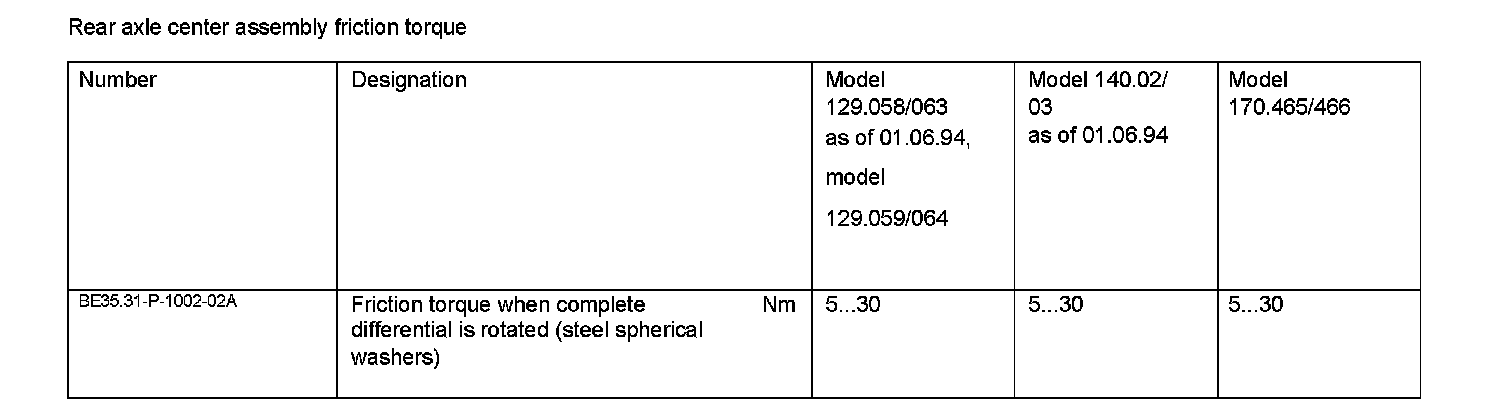

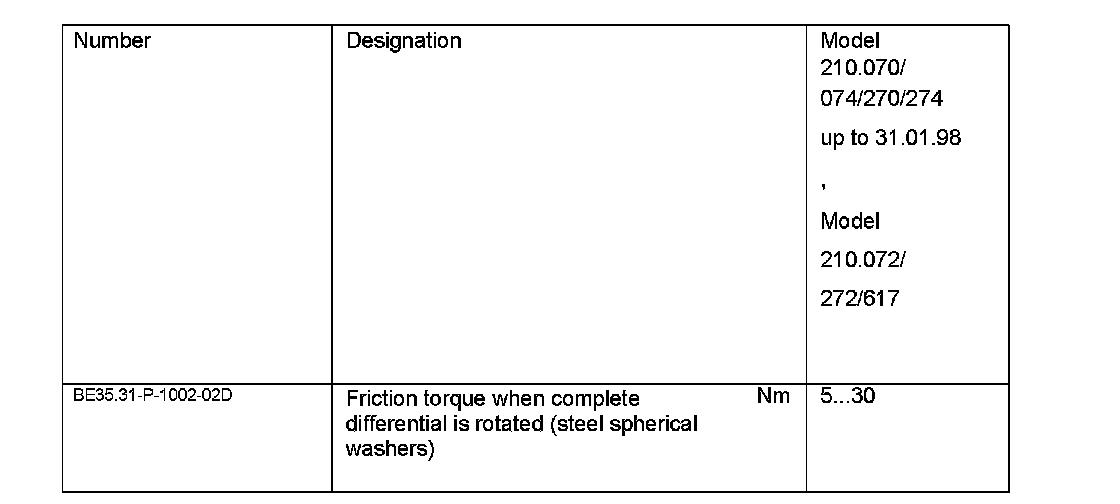

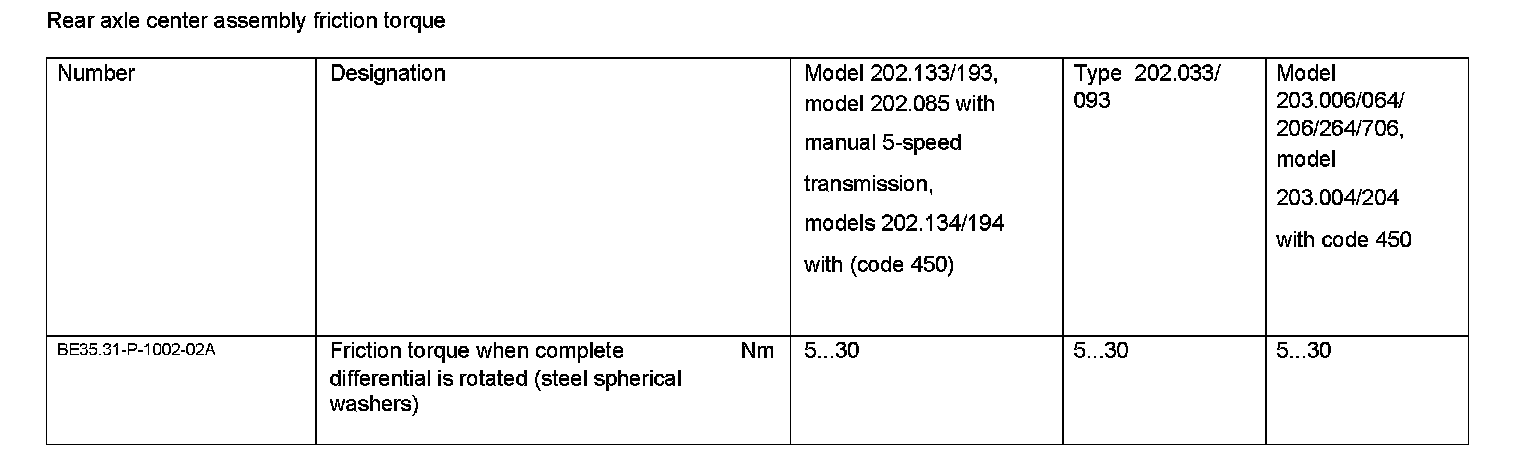

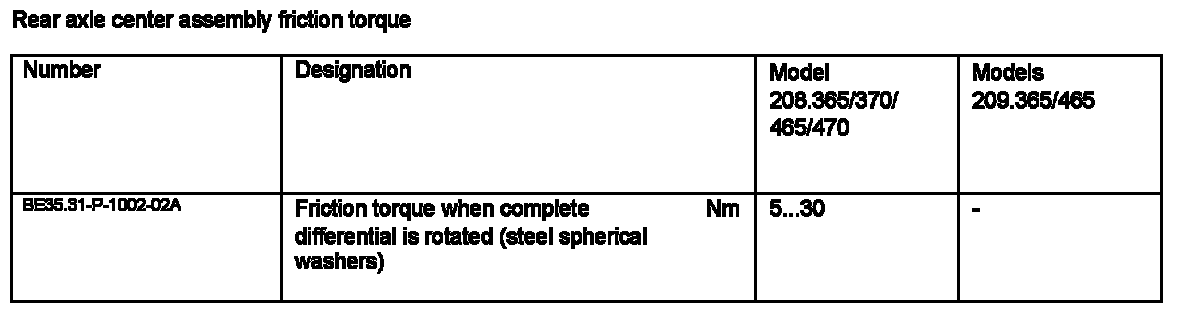

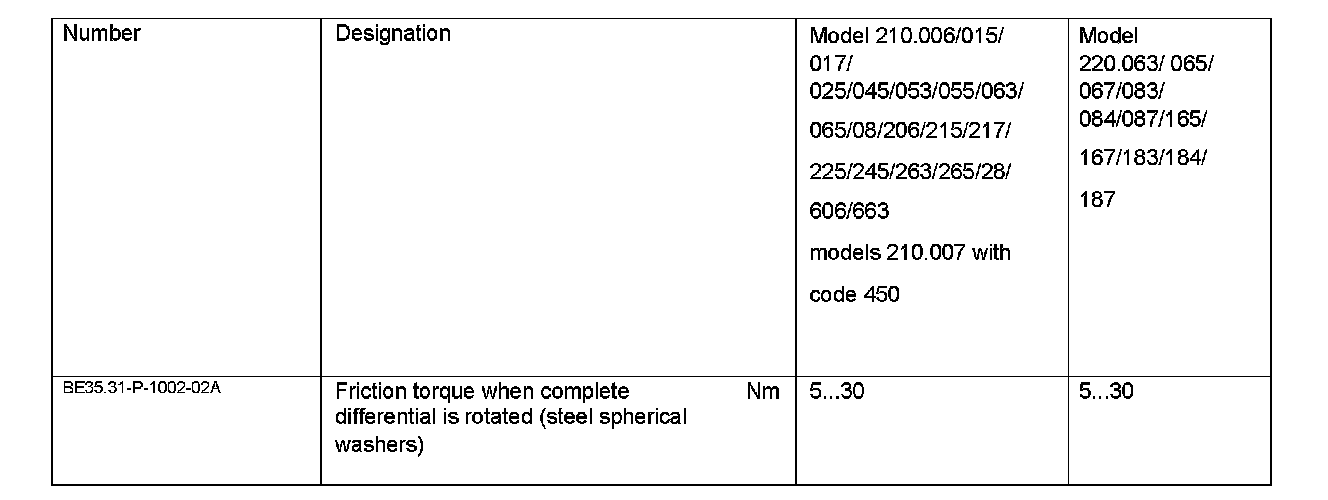

Rear axle center assembly friction torque:

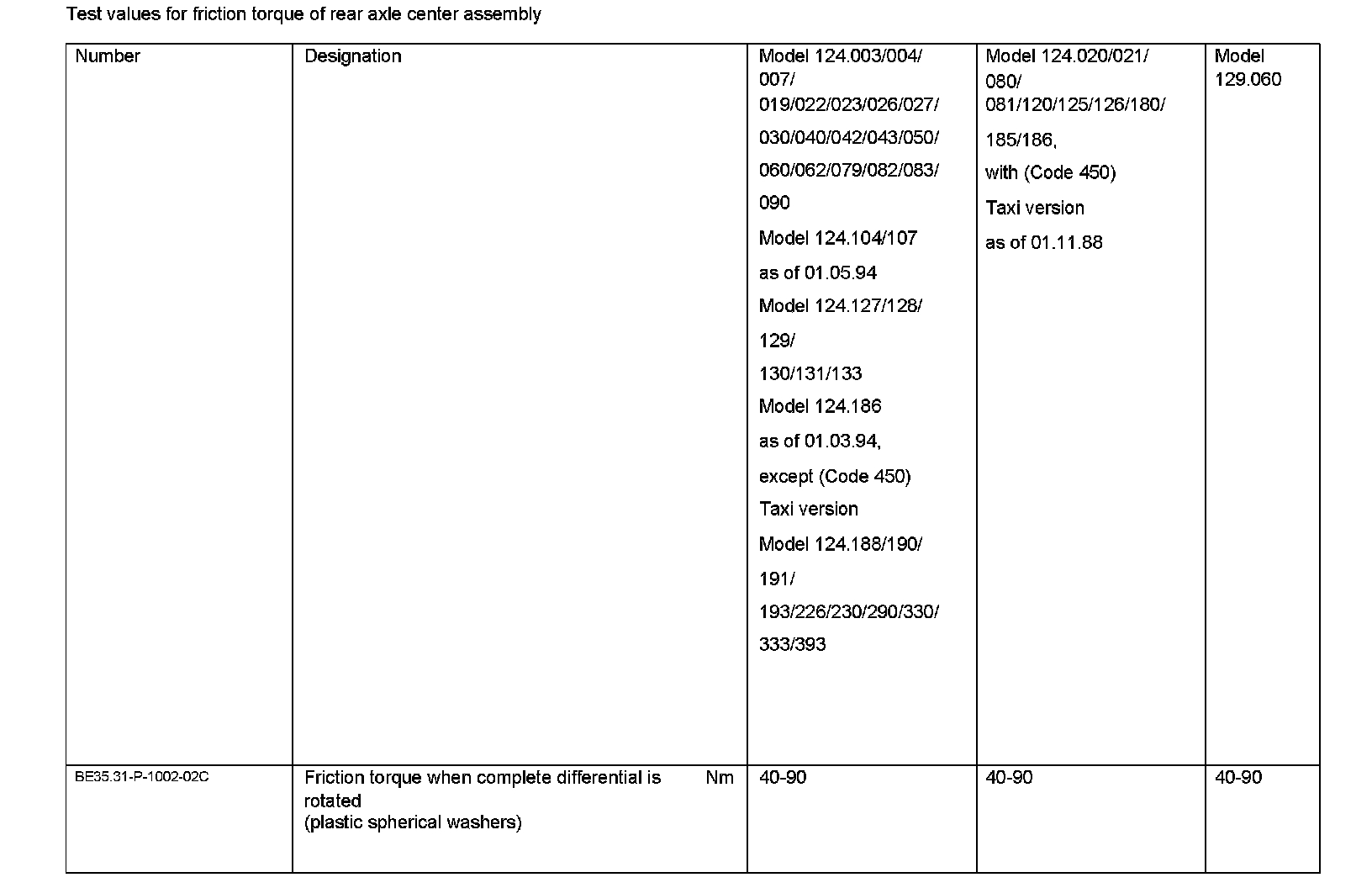

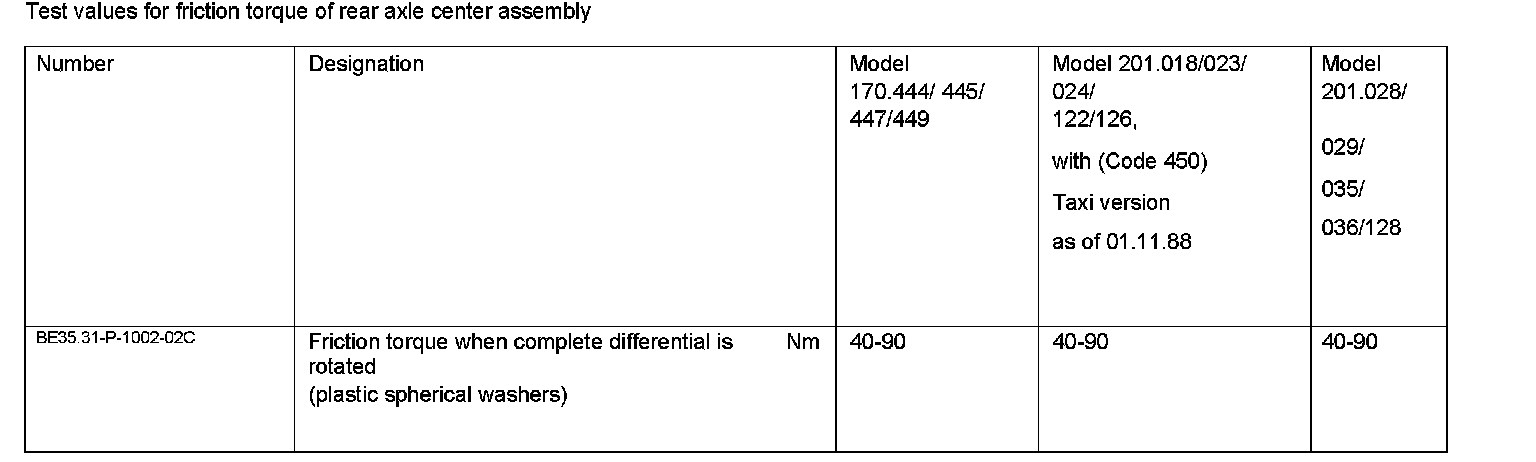

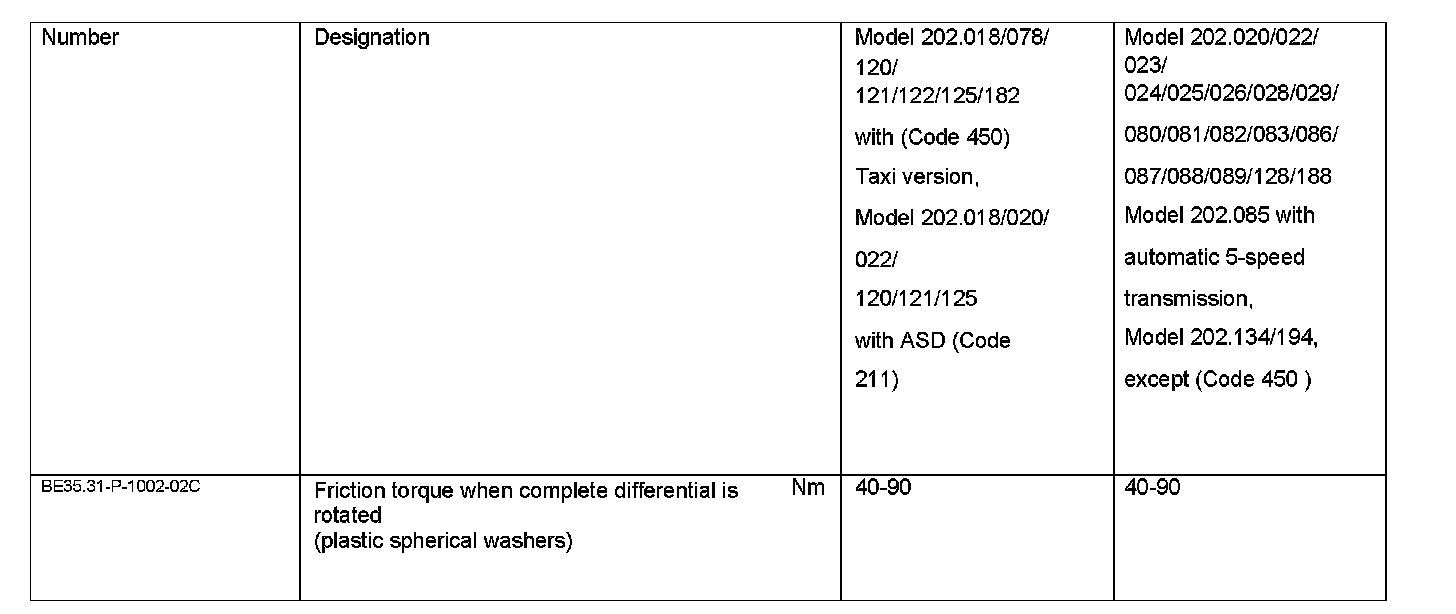

Test values for friction torque of rear axle center assembly:

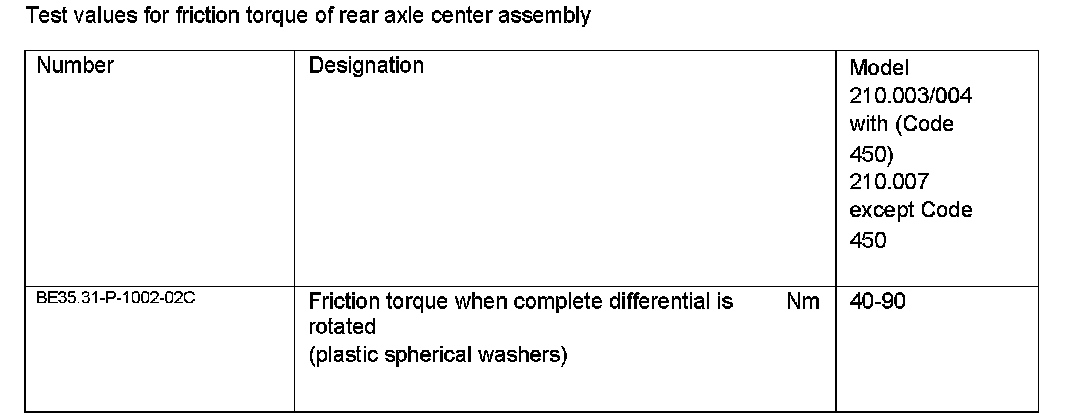

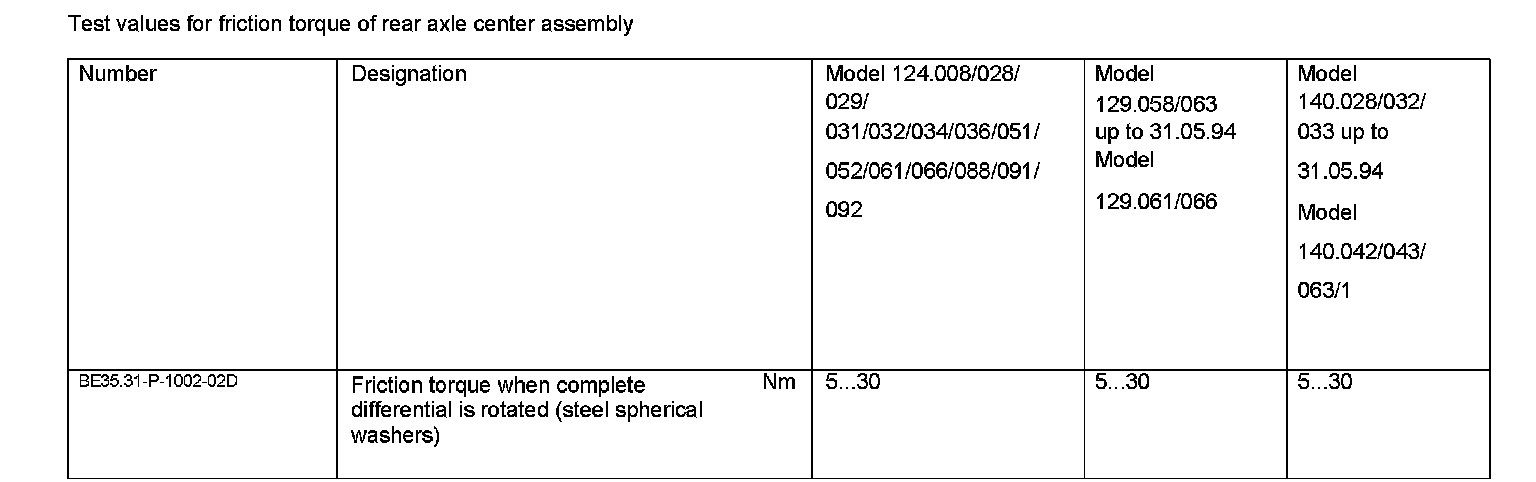

Test values for friction torque of rear axle center assembly:
