AR35.31-P-0550-21PA Install Right Tapered Roller Bearing Outer Race In Rear Axle Housing

AR35.31-P-0550-21PA Install right tapered roller bearing outer race in rear axle housing
- Rear axle center assembly dia. 185, 198, 210

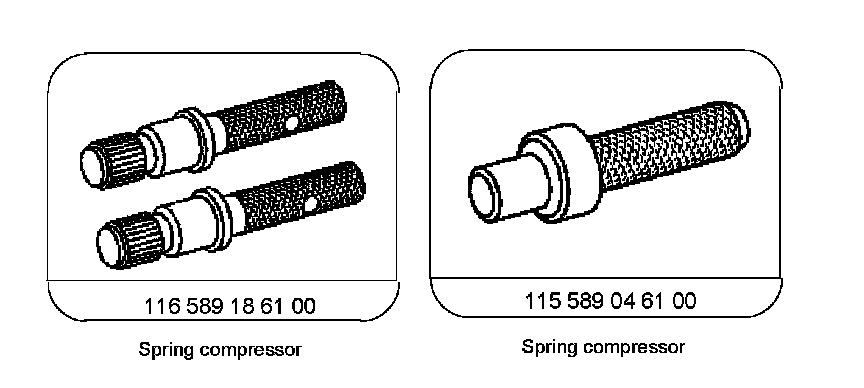

Special Tools:

Component Identification:

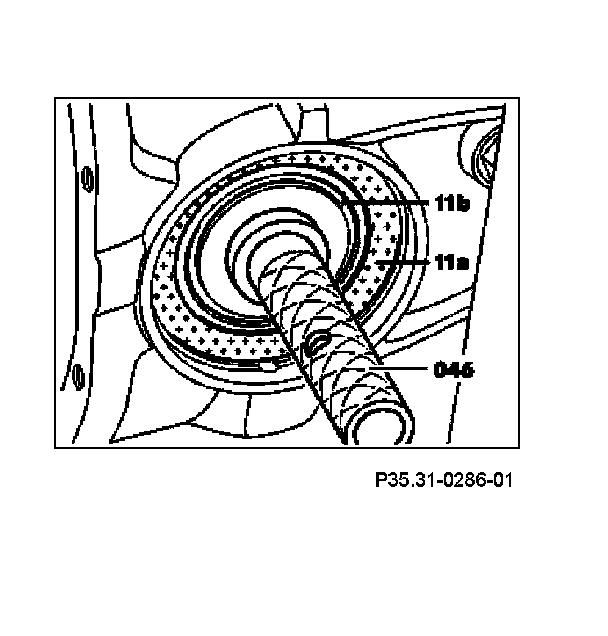

1 To fix in position, insert assembly drift (046) into rear axle housing.
2 Press right tapered roller bearing outer race (11a) into rear axle housing until it lies against tapered roller bearing inner race (11b).
