AR35.31-P-0550-14PA Pull Tapered Roller Bearing Outer Races Into Rear Axle Housing

AR35.31-P-0550-14PA Pull tapered roller bearing outer races into rear axle housing
- Rear axle center assembly dia. 185, 198, 210

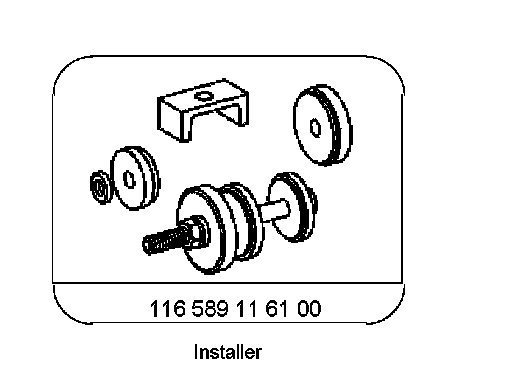

Special Tools:

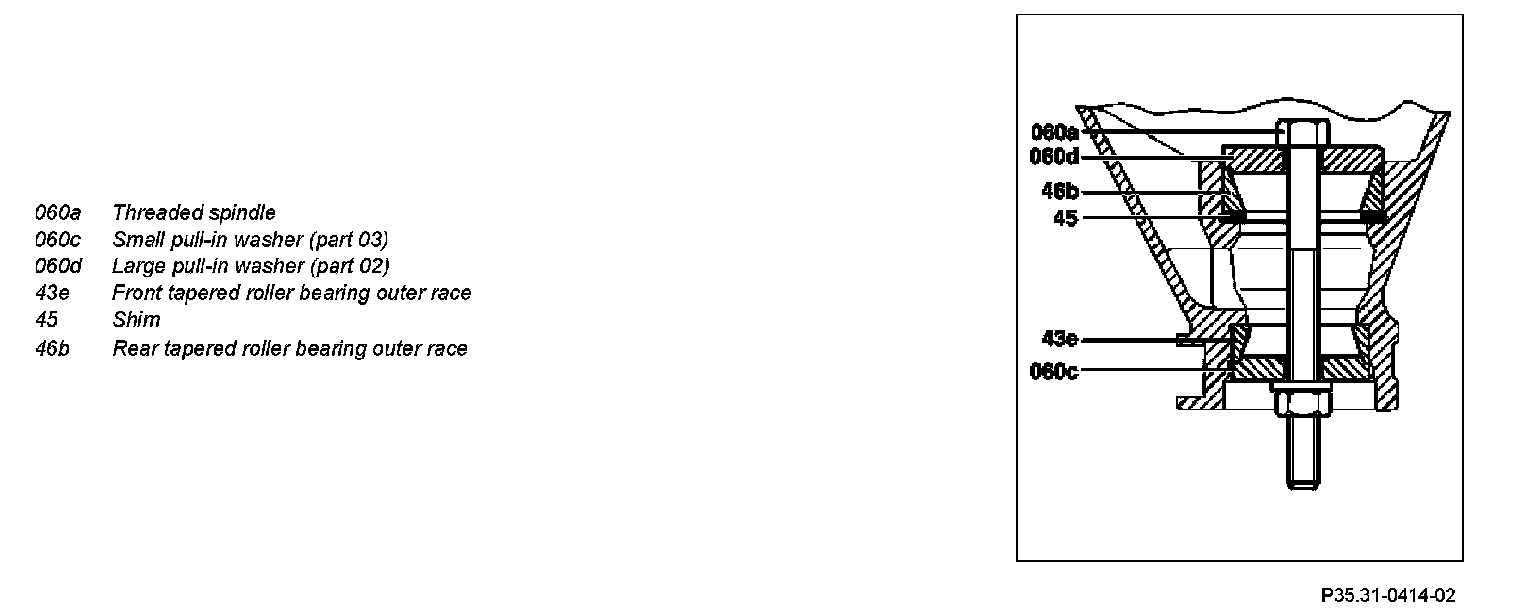

Component Identification:

1 Using insertion device (060a, 060c, 060d), pull front tapered roller bearing outer race (43e) and rear tapered roller bearing outer race (46b) into rear axle housing as far as they will go.

Ensure that the shim (45) is inserted. Do not tilt the tapered roller bearing outer races (43e, 46b) when pulling in.
