AR35.31-P-0590QBS Remove/Install Oil Cooler of Rear Axle Center Assembly



AR35.31-P-0590QBS Remove/install oil cooler of rear axle center assembly
- Rear axle center assembly dia. 215
- with CODE (P98) Black Series

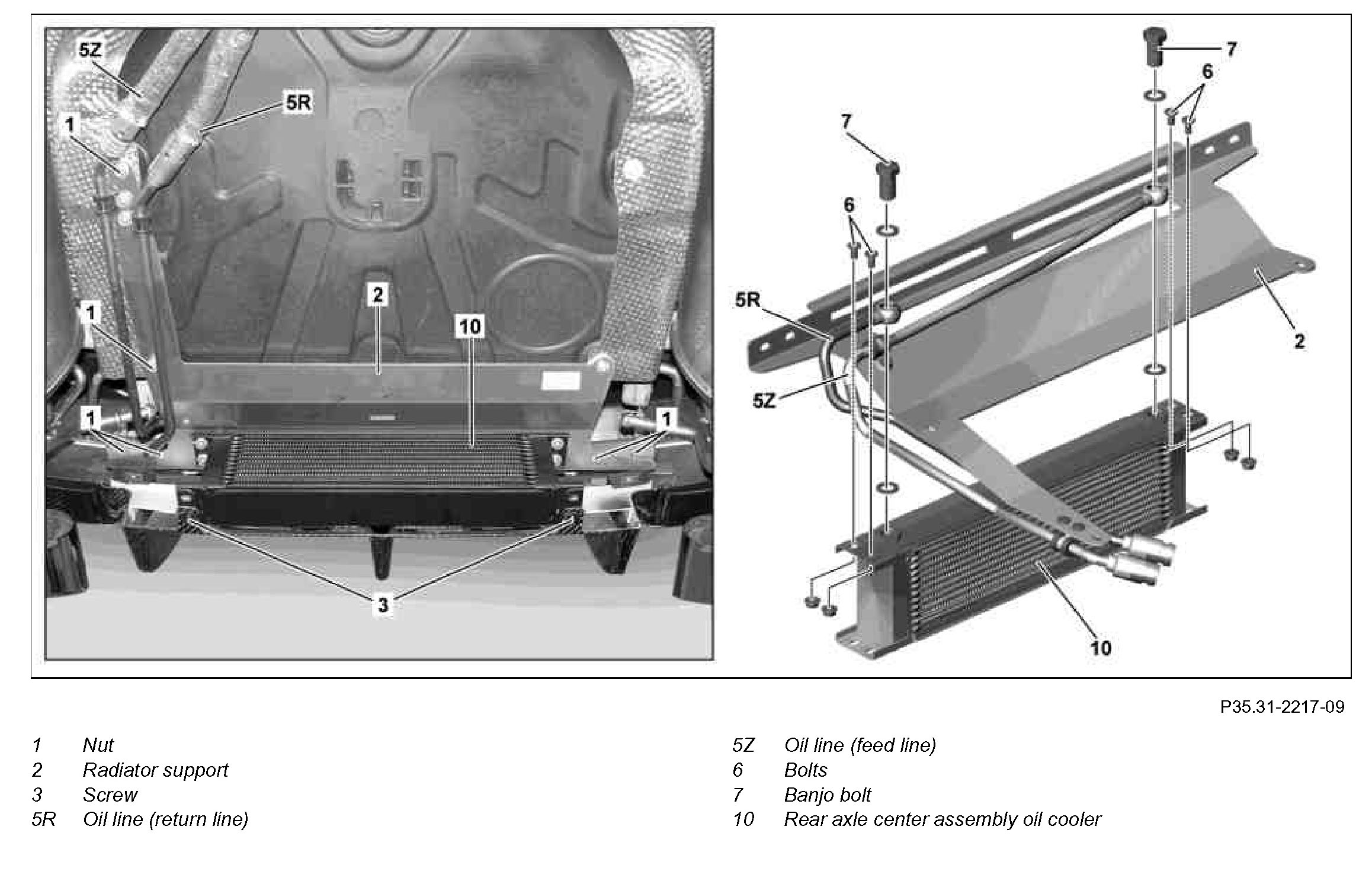

Component Identification:

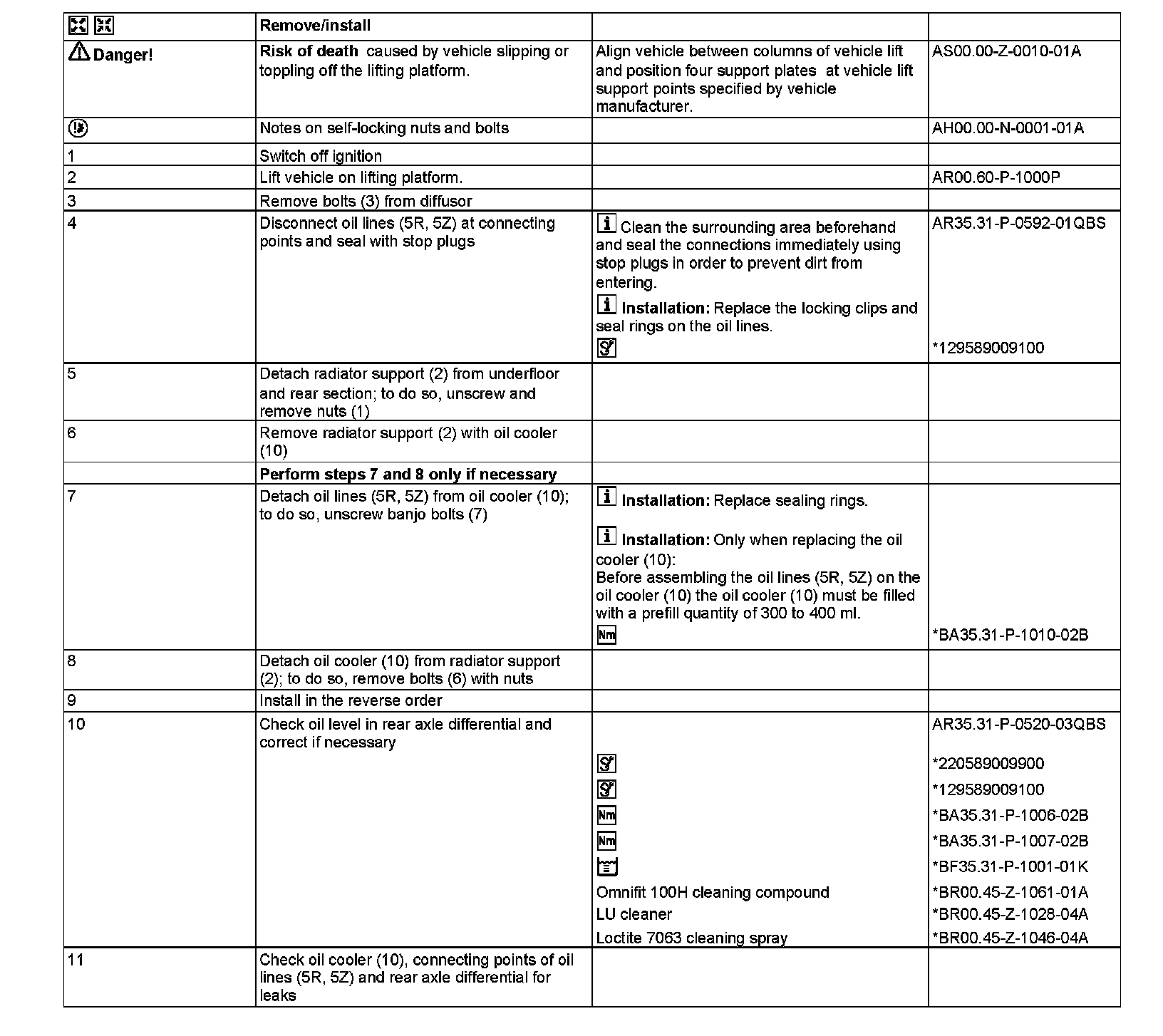

Steps 1-11:

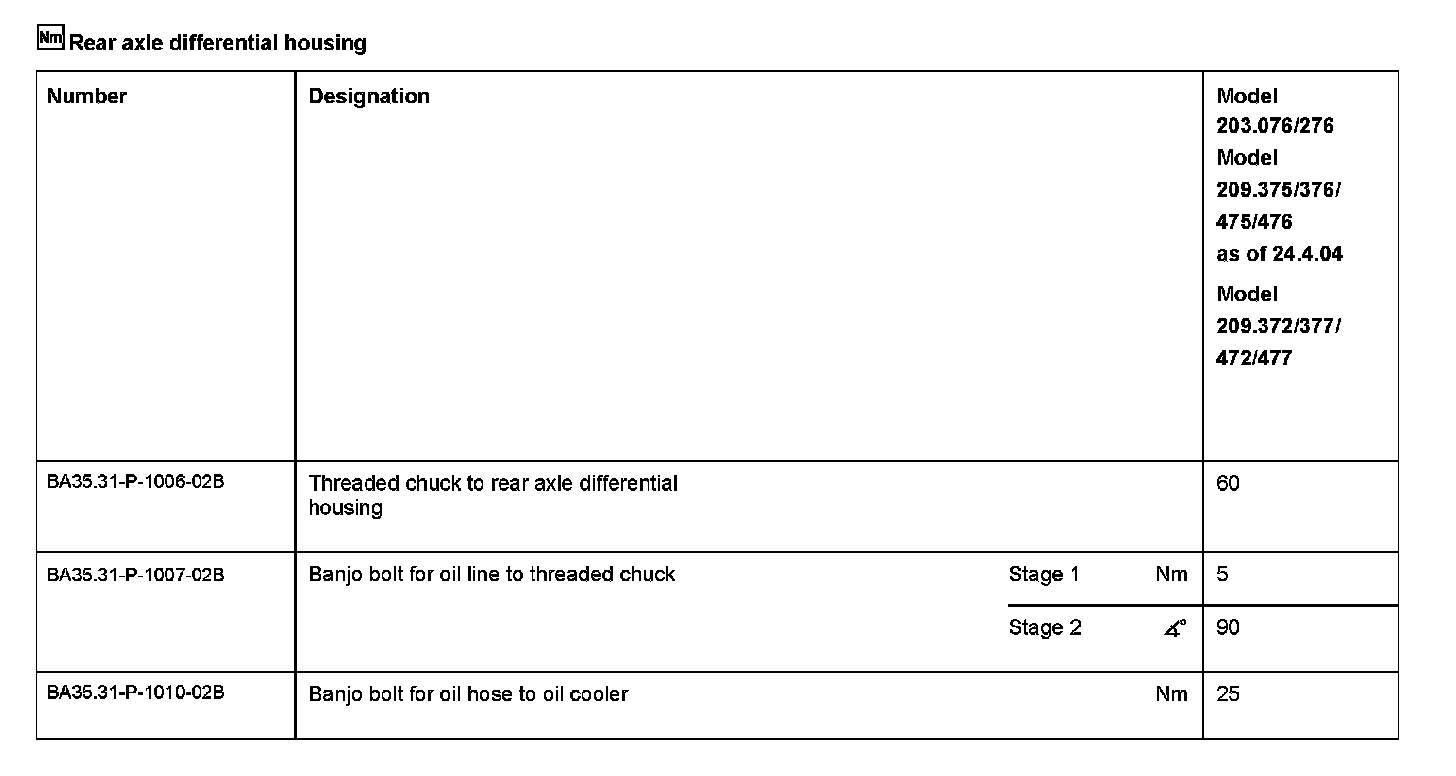

Rear axle differential housing:

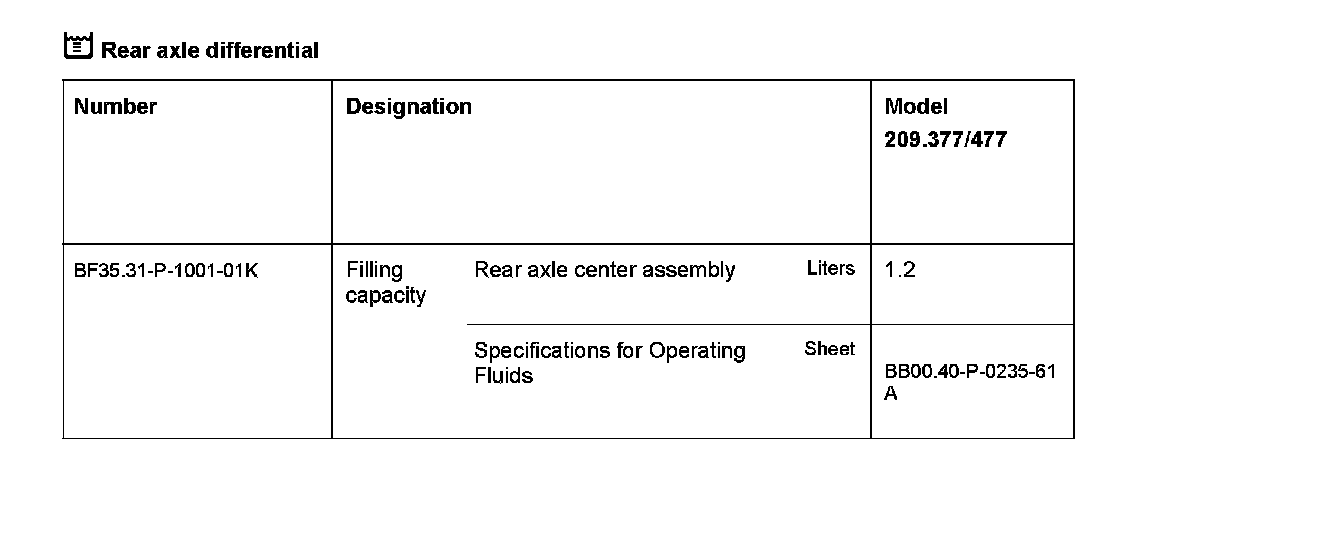

Rear axle differential:

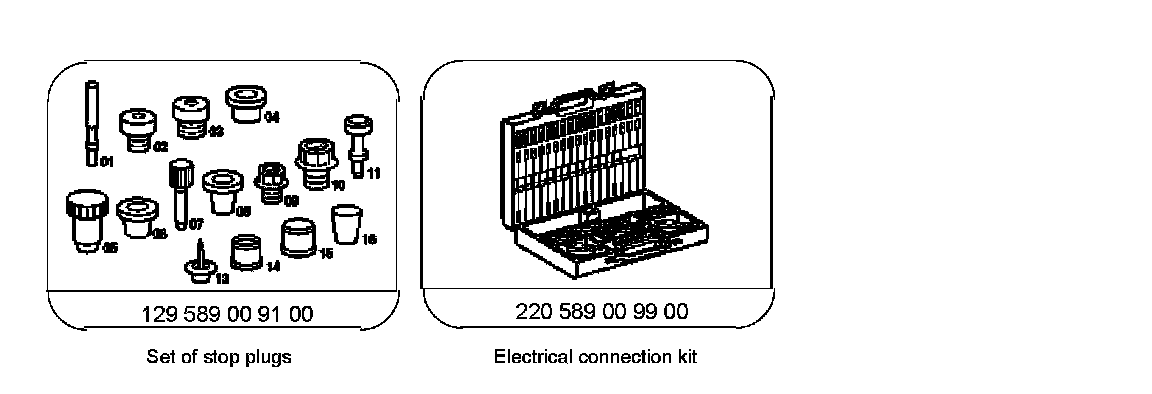

Special Tools:

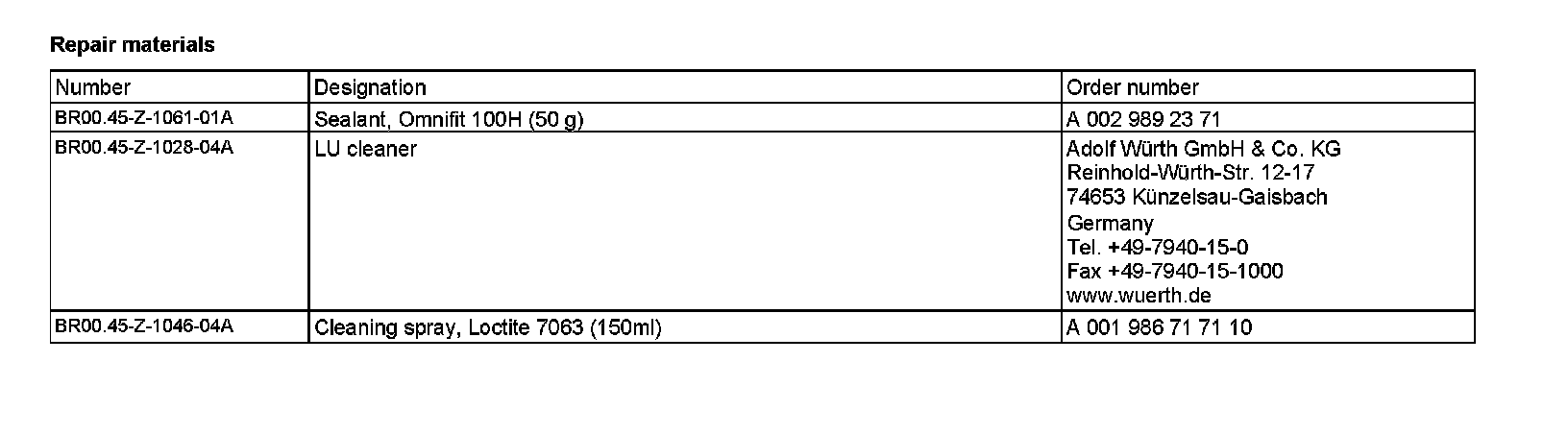

Repair materials:
