Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Clutch Pedal Assembly >> Service and Repair >> AR29.10-P-4598P Remove/Install Clutch Pedal

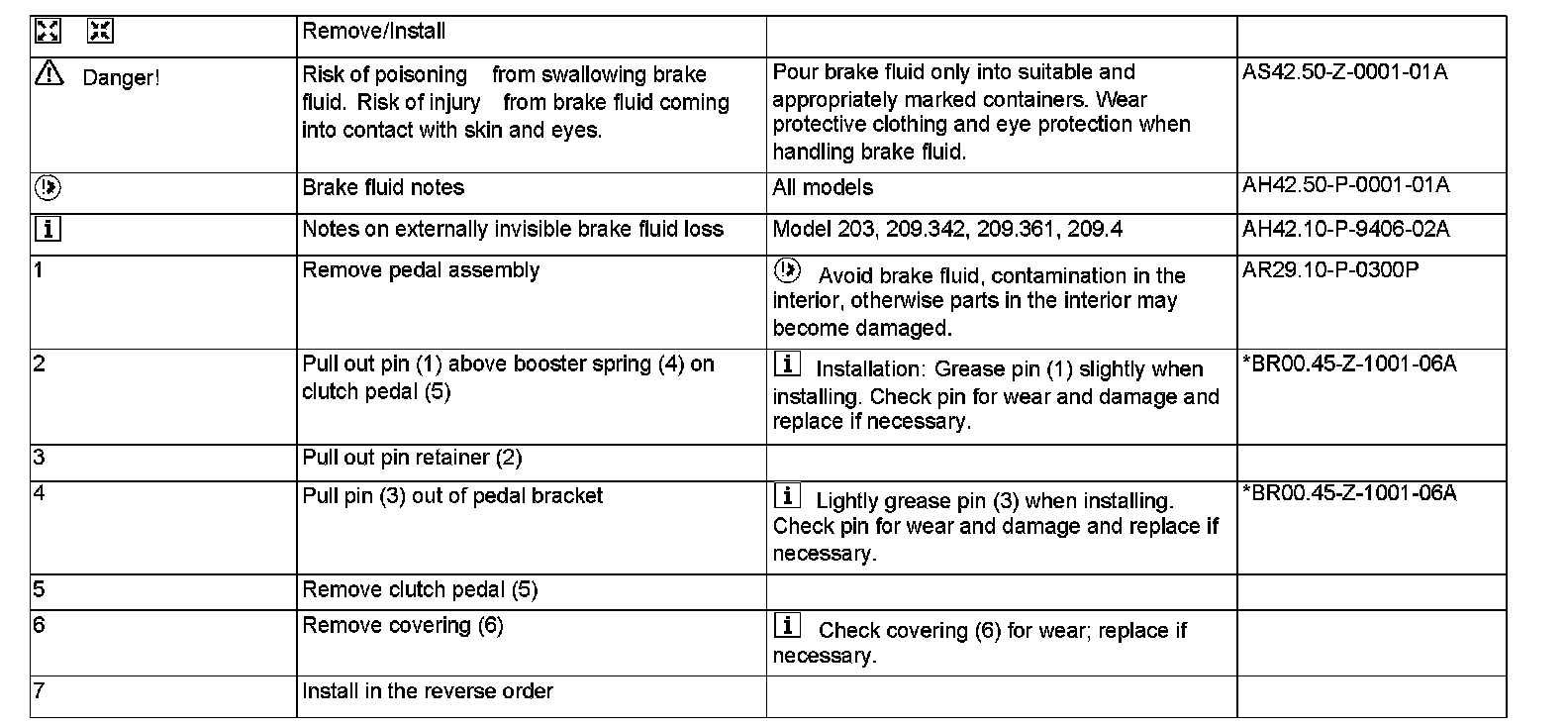

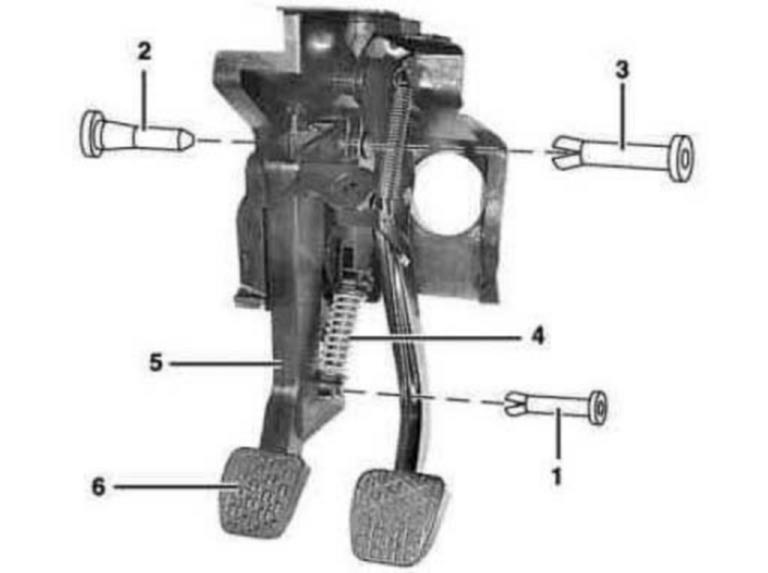

AR29.10-P-4598P Remove/Install Clutch Pedal




AR29.10-P-4598P Remove/Install Clutch Pedal
- with transmission 722.6
