AR27.55-P-0001PI Flushing Out Oil Cooler Lines and Oil Cooler



AR27.55-P-0001PI Flushing out oil cooler lines and oil cooler
- with transmission 722.9

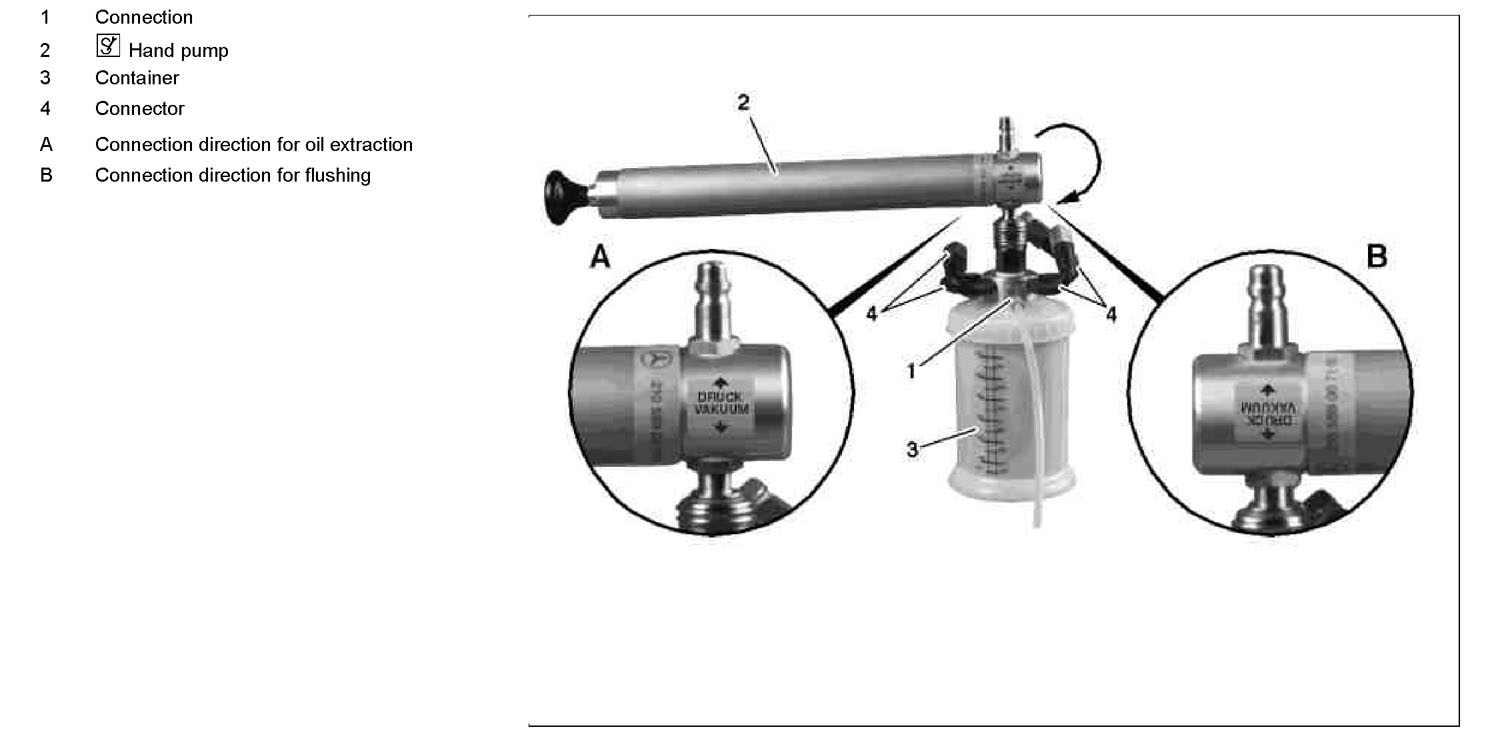

Component Identification:





Component Identification:

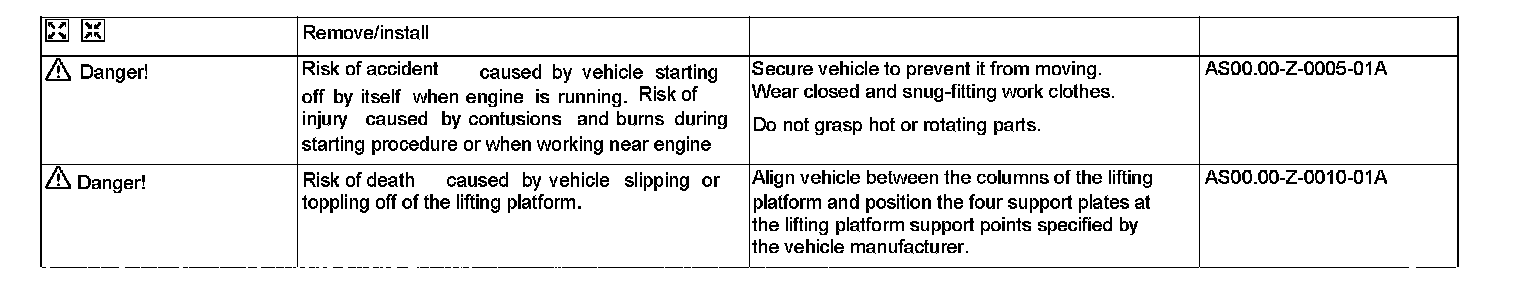

Warnings:

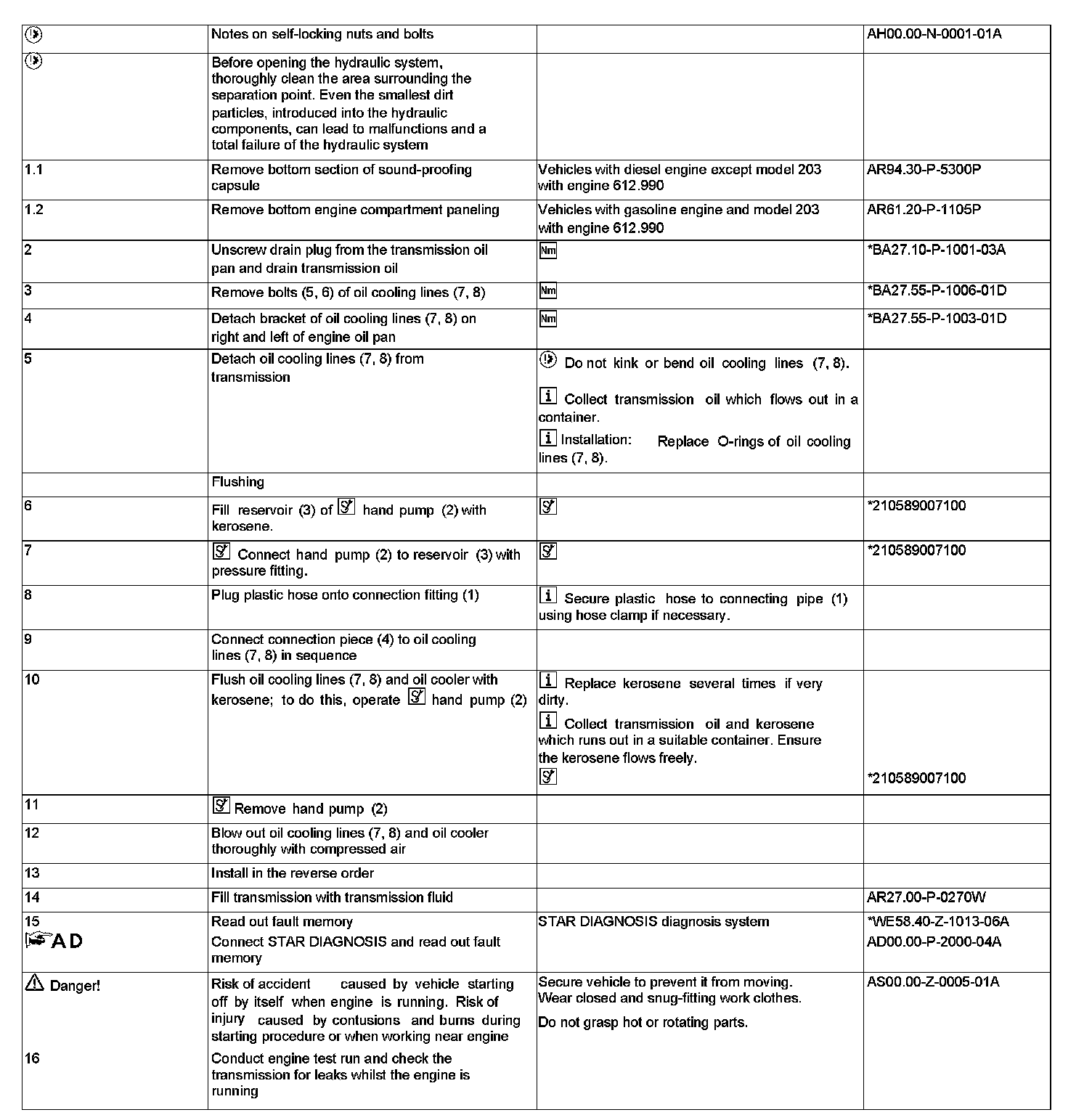

Steps 1.1 - 16:

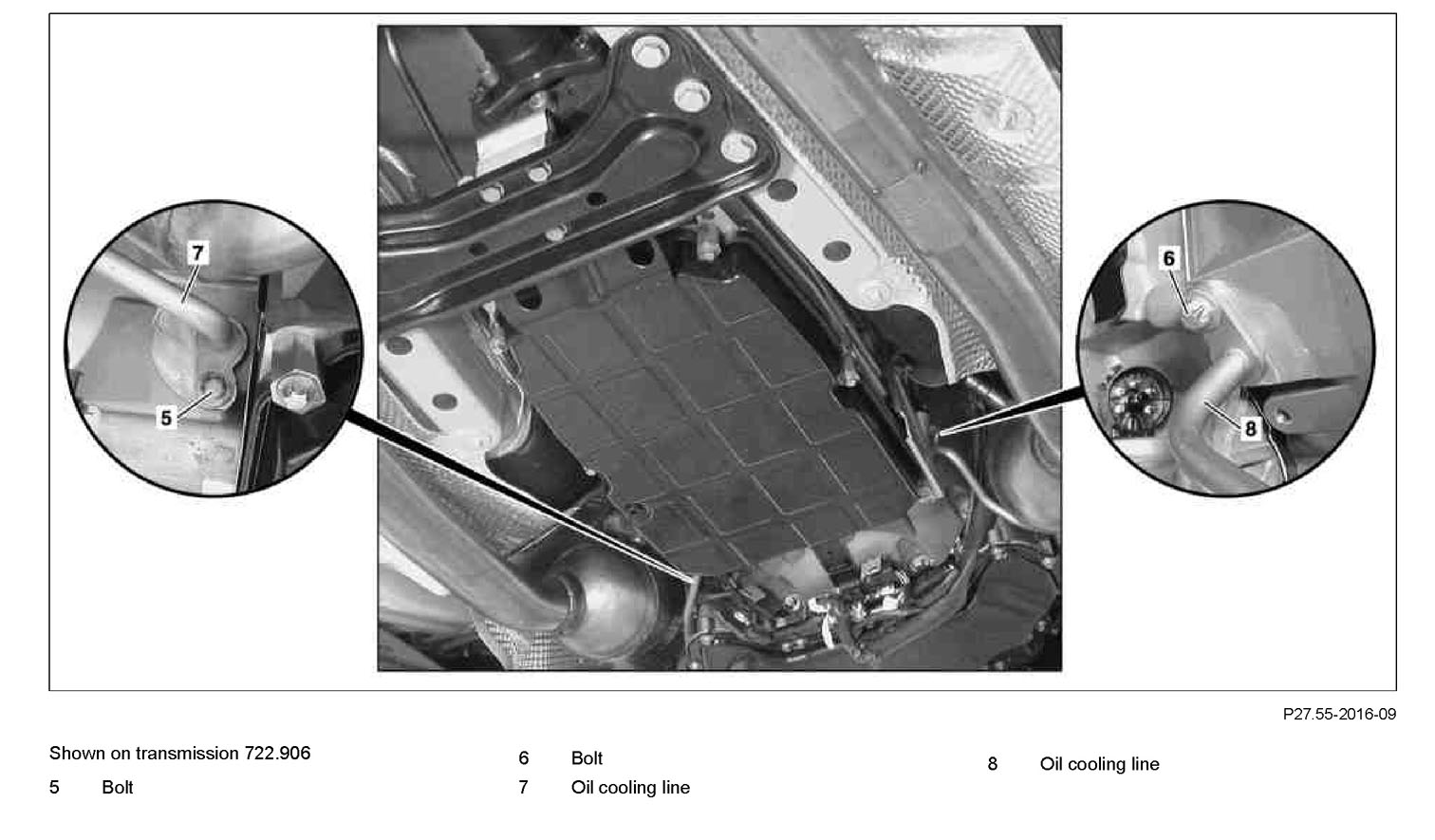

Transmission, Oil Cooler:

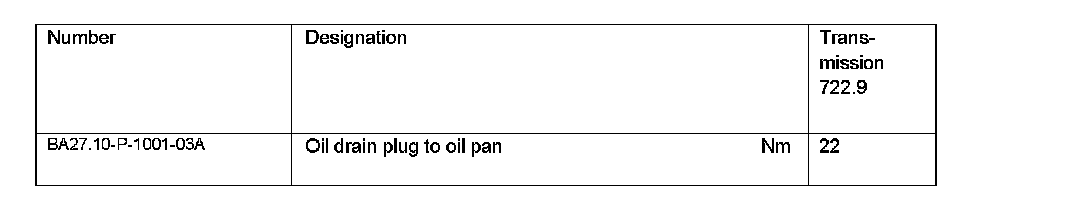

Oil Pan, Automatic Transmission:

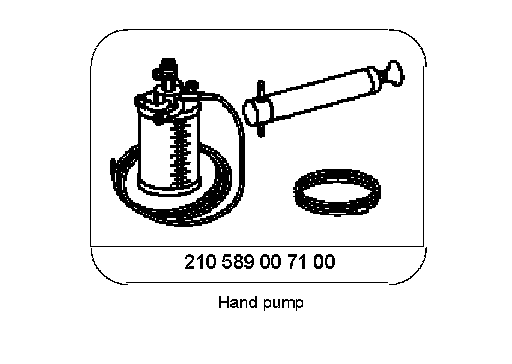

Special Tools:

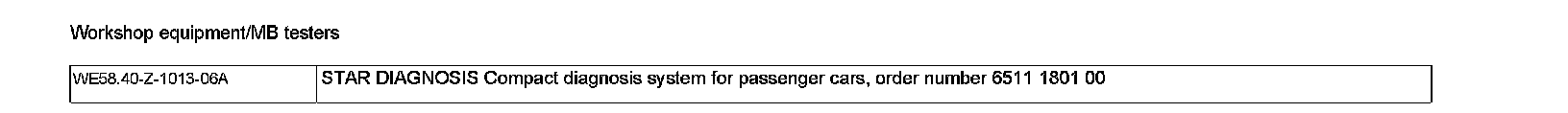

Workshop Equipment/MB Testers:
