Campaign - Navigation DVD Update
Campaign No. 2006110005, November 2006FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER
Revision History
Revision Date Purpose
A 11/22/06 Update to Navigation DVD version checking procedure
- 11/17/06 Initial issue
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT:
MODELS 164, 171, 203, 209, 211, 215, 219, 220, 221, 230, 251, X164
MODEL YEAR 2005-2007
INSTALL SOFTWARE FOR NAVIGATION SYSTEM
This Service Campaign has been initiated because DCAG has determined that certain affected vehicles (see VIN range on the following pages) may have an earlier version navigation disc installed than that specified. This could in some cases lead to navigation directions based upon non updated map data. Dealers will update the navigation disc in the affected vehicles as required.
Please review the Effective Serial Number chart located on the following pages, and if necessary, repair the subject vehicles during the vehicle's next service.
Prior to performing this Service Campaign:
- Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
- Please review the entire Service Campaign bulletin.
Approximately 12,559 vehicles are affected.

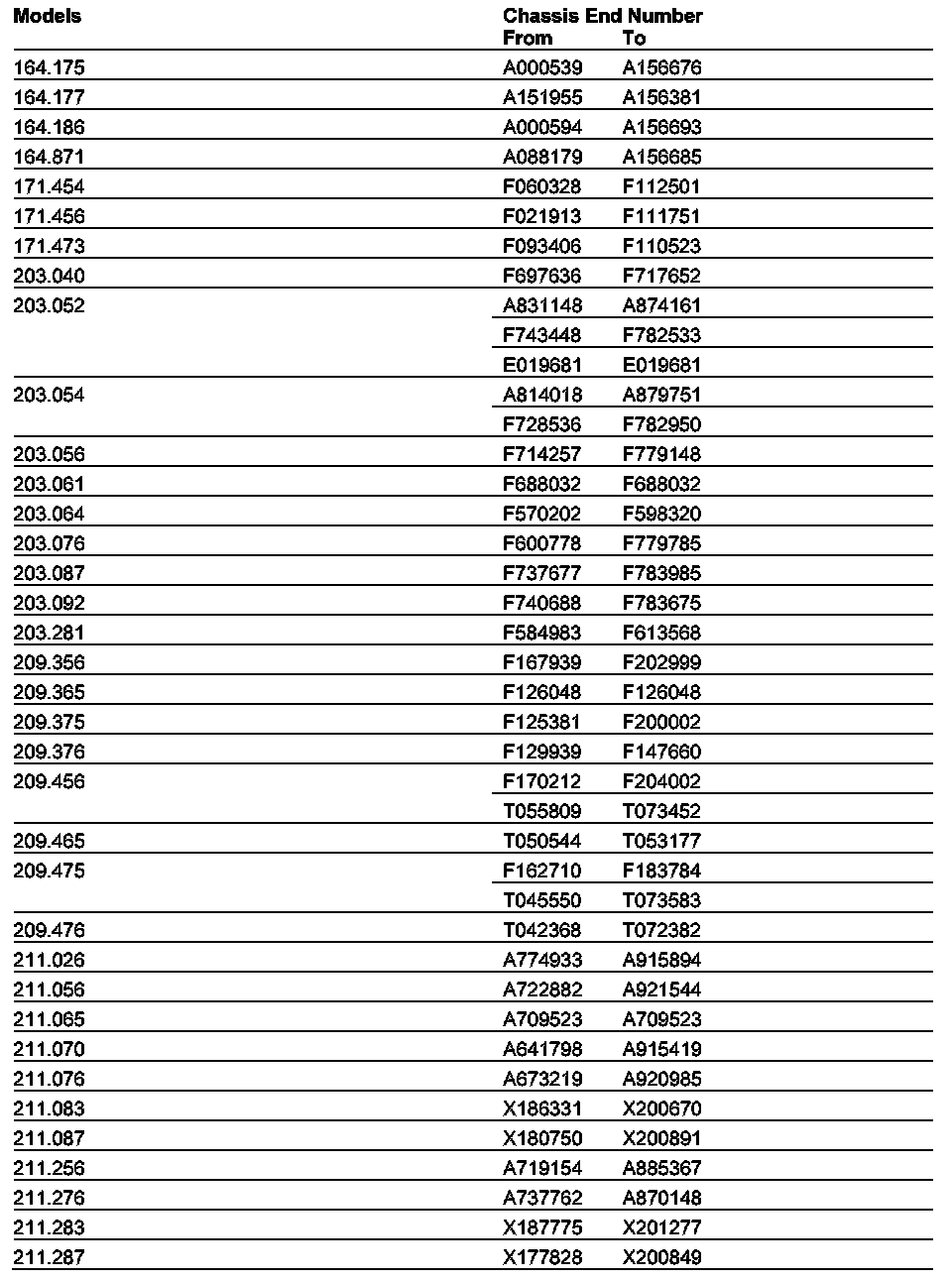

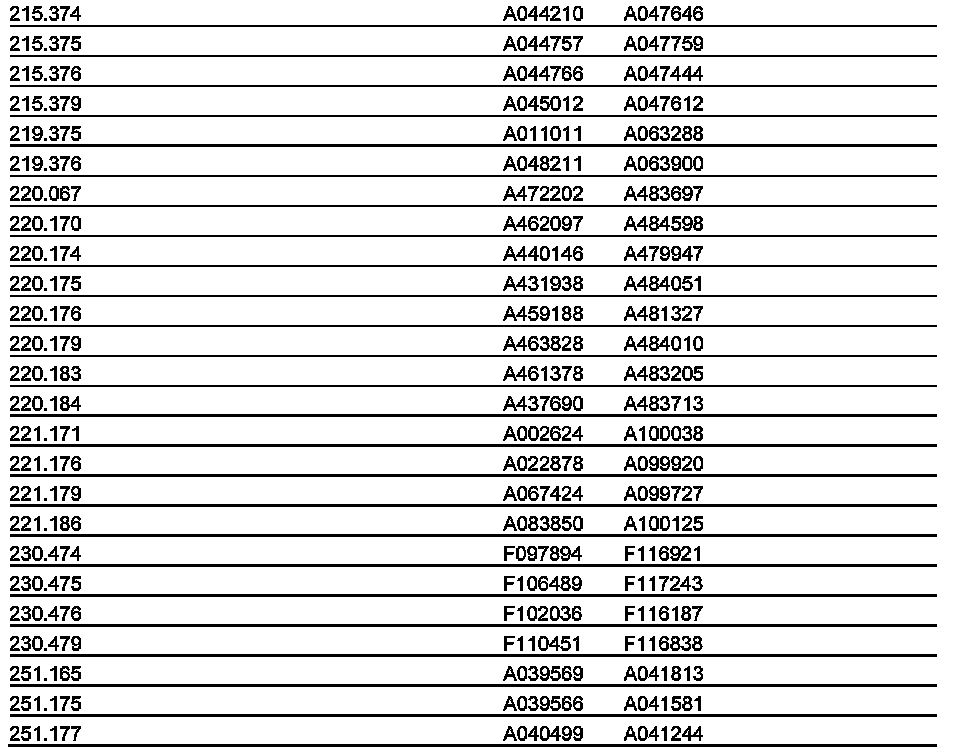

Effective Serial Number Range
NOTE:
Every vehicle in the VIN range may not be included in the campaign. VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. VMI always overrides the bulletin in reference to a specific vehicle's inclusion in a particular campaign. Please also note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.
Procedure
A. CHECK VERSION OF NAVIGATION DVD (ALL MODELS EXCEPT 221)
1. Models 171, 211, 215, 219, 220, 230: Check part number of Navigation DVD in vehicle.
- If part number is BQ 646 0216 (V 2006.1): This campaign has been completed.
- If part number is not the above number: Proceed to Subject C.
2. Models 164, 203, 209, 251, X164: Check part number of Navigation DVD in vehicle.
- If part number is BQ 646 0220 (V 2006.1): This campaign has been completed.
- If part number is not the above number: Proceed to Subject C.
B. UPDATE NAVIGATION SYSTEM (MODEL 221 ONLY)
NOTE:
You must obtain the correct DVD per VIN by filling out the form on page 7 and either fax to Navteq at: 888 329 4223 or scan and email at: mbmaps@navteq.com. For reliability, we encourage you to fax in the form. The DVD will be sequentially numbered according to the VIN you provide in the form. If you have more than one vehicle listed in the campaign in your dealership, please submit multiple VINS in a single form, Navteq will mail you one DVD per VIN entered.
NOTE:
Prior to starting procedure ensure to:
- Connect battery charger
- Turn off ignition and all electrical consumers
- Turn ignition key to second position
- Follow the order of steps exactly as outlined below
1. Power on head unit.
CAUTION:
Ensure that slot #1 in the DVD changer is empty prior to inserting the Navigation DVD.

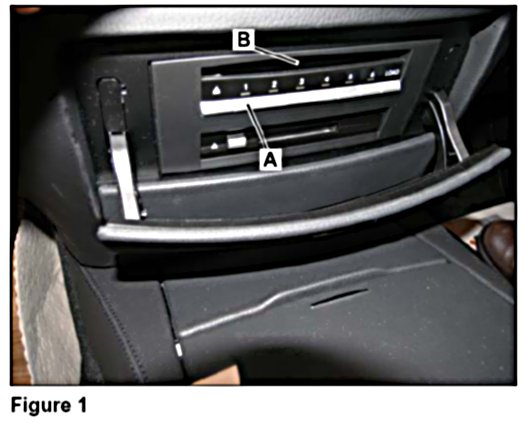

2. Press Button 1 of the DVD changer (A, Figure 1) and insert the Navigation DVD (part number A 221 827 30 59 (v 3.0)) into the changer (B).
3. Press COMAND controller to confirm the "Disc Drive Audio Format Unknown" message.
4. Press COMAND controller to confirm the "Proceed with Update" message.
NOTE:
The update process takes approximately 30 minutes to complete. The technician is not required to be present during the process and may perform other tasks while the process is running. The update process run time is not included in the labor time paid under this Service Campaign.
5. Press COMAND controller to acknowledge completion of update process.
6. Ensure navigation system is functioning correctly after update.
NOTE:
This Navigation DVD is property of MBUSA; it must remain with the vehicle/customer after the update process has been completed. Reproduction is prohibited!
C. UPDATE NAVIGATION SYSTEM (ALL MODELS EXCEPT 221)
NOTE:
You must obtain the correct DVD by calling Navteq at 866 MB4 AMAP (866 624 2627).
1. Start vehicle and keep it running for the duration of the update process.
2. Use new Navigation DVD to update Navigation system.
- Shut off vehicle upon completion of the update process.
3. Ensure navigation system is functioning correctly after update.
NOTE:
The replaced Navigation DVD must be returned through the standard process.
Parts Information
NOTE:
- Please be aware that only the part number(s) referenced in the Campaign Bulletin is approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.
- The following allowable labor operation should be used when submitting a warranty claim for this repair:
Warranty Information

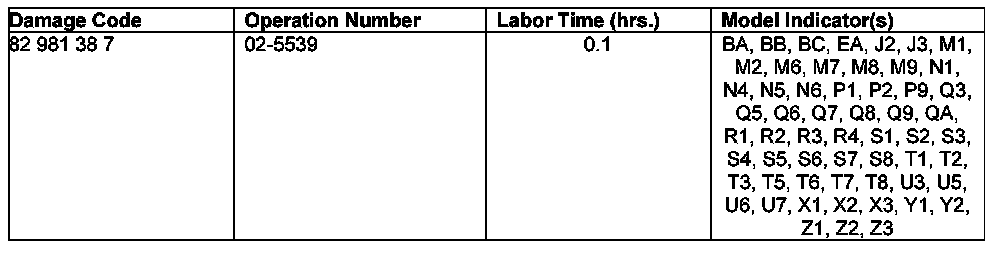

Repair 1 (All models except 221 - Check only)
Operation:
Navigation-DVD, Check/Update if Necessary (02-5539)

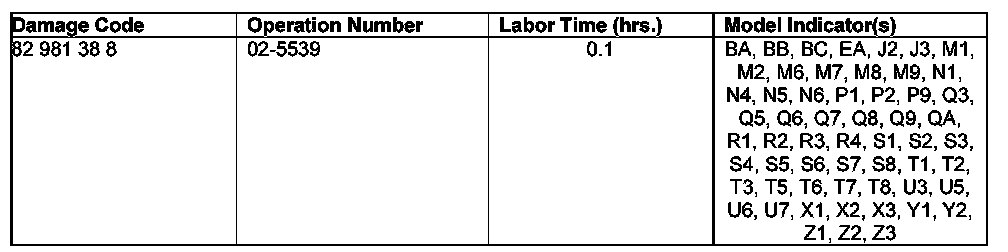

Repair 2 (All models except 221 - Check and update)
Operation:
Navigation-DVD, Check/Update if Necessary (02-5539)
Repair 3 (Model 221)
Operation:
Battery Charger, Connect (02-5058)
Map Software for Navigation System, Update (02-5540)
