AR40.10-P-4051Z Check Tires For Damage and Cracks



AR40.10-P-4051Z Check Tires For Damage and Cracks

Component Identification:

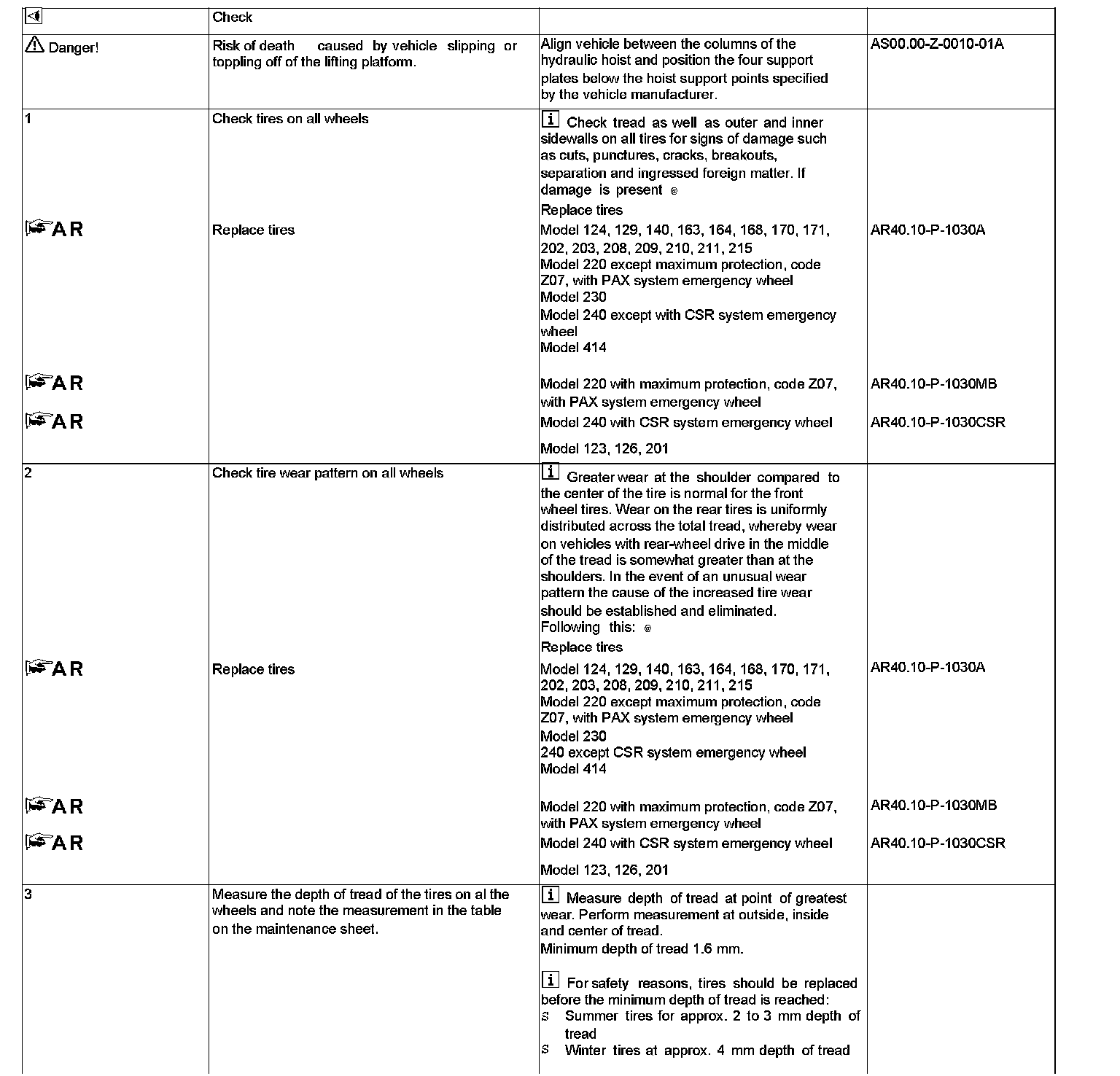

Steps 1 - 3:

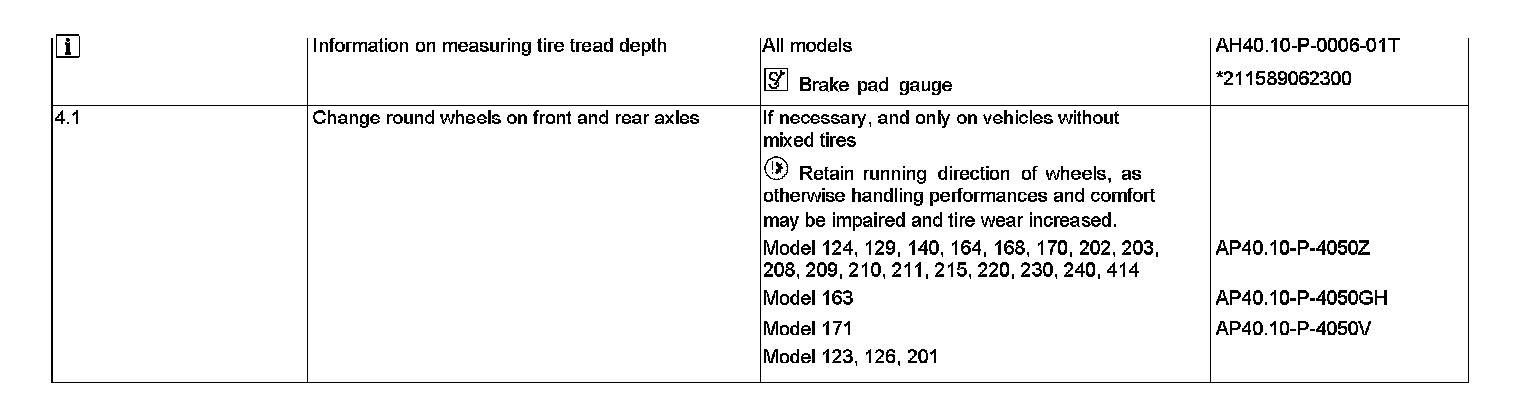

Step 4.1:

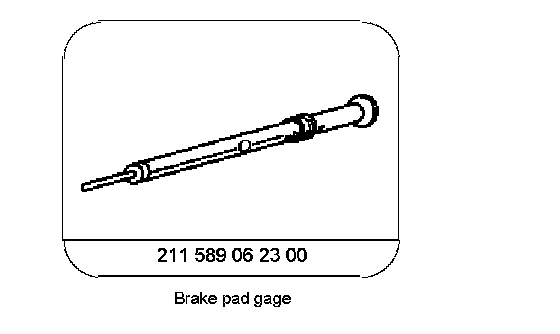

Special Tools:
