AR32.25-P-1017P Remove/Install the Suspension Strut

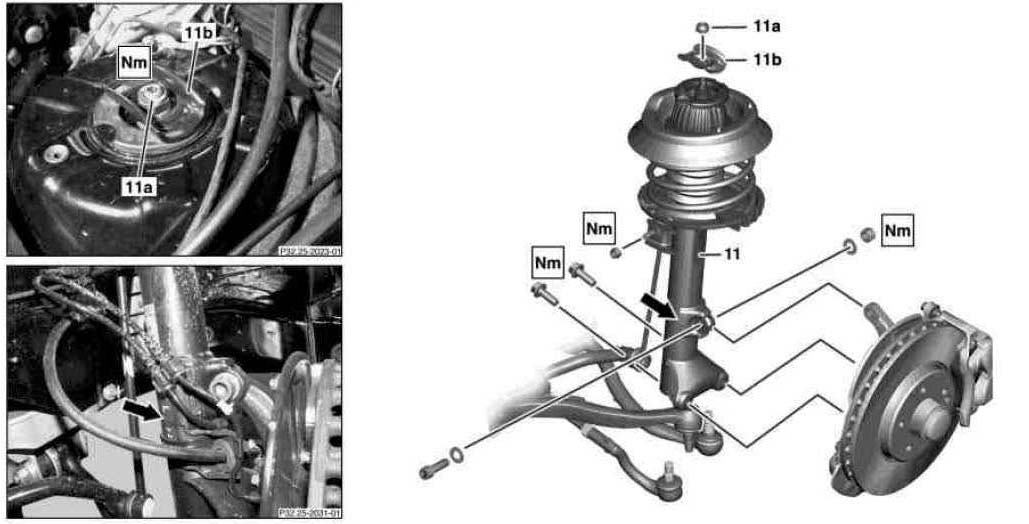

AR32.25-P-1017P Remove/install the suspension assembly

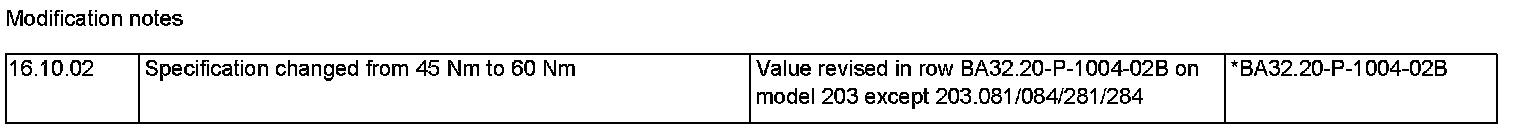

Modification notes

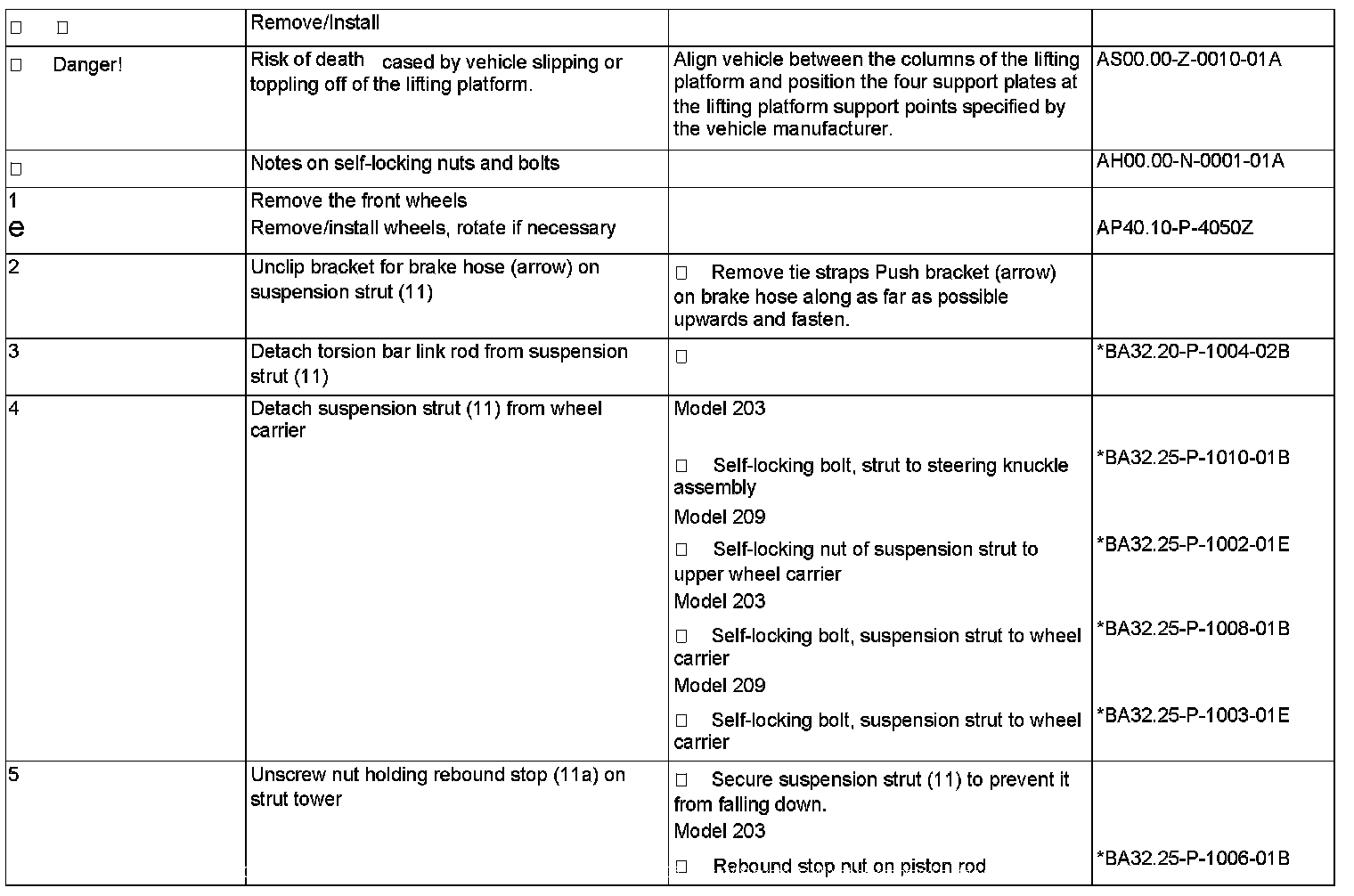

Steps 1-5:

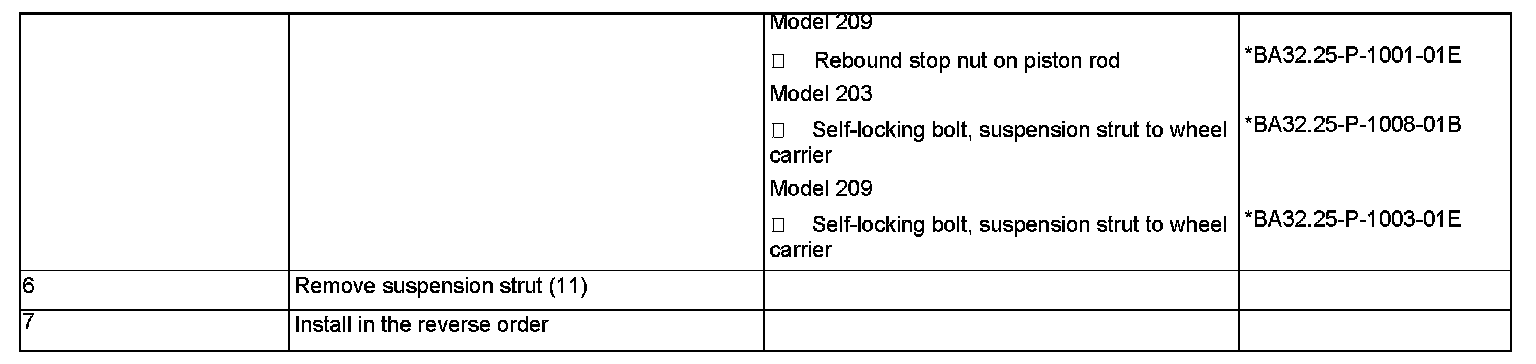

Steps 6-7:

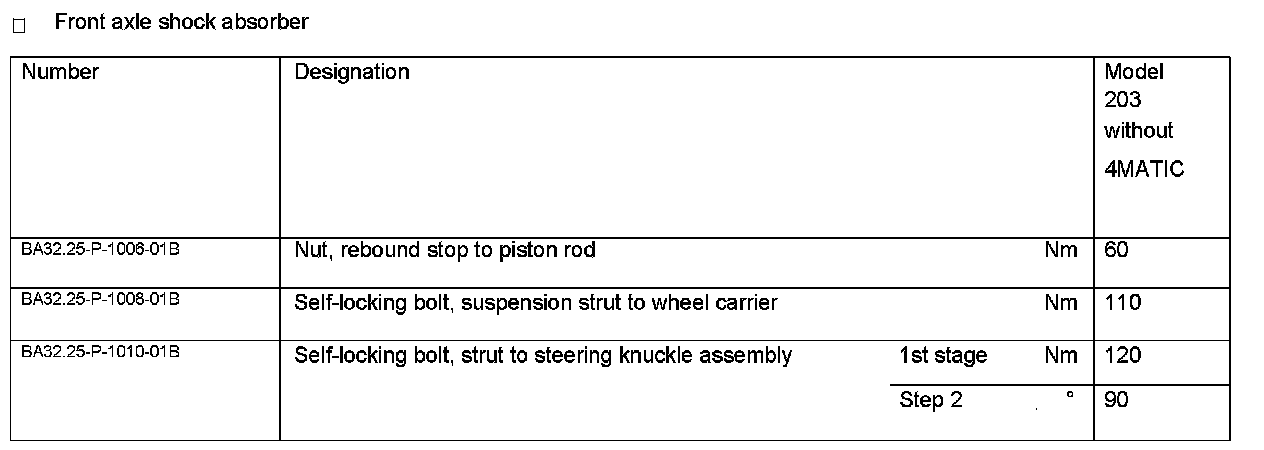

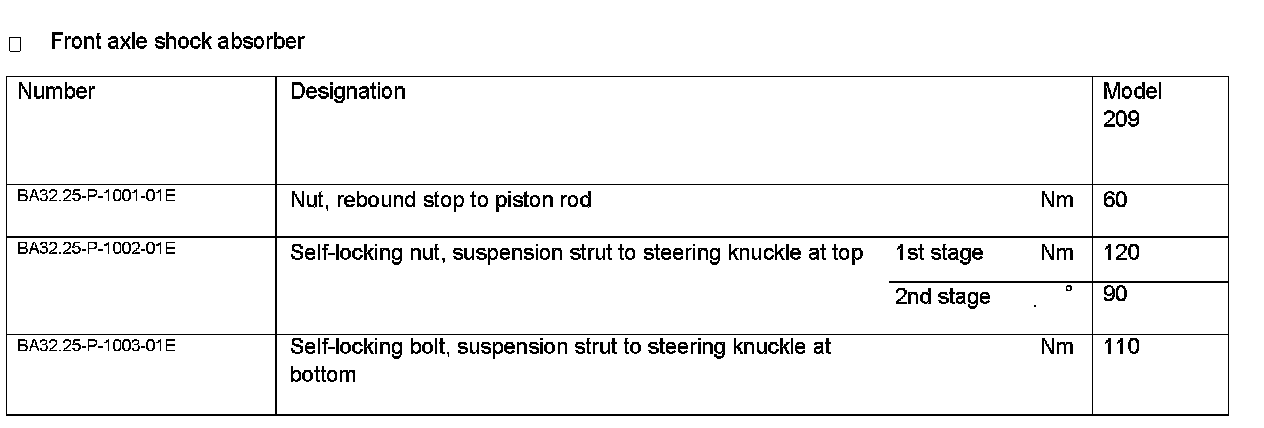

Front axle shock absorber

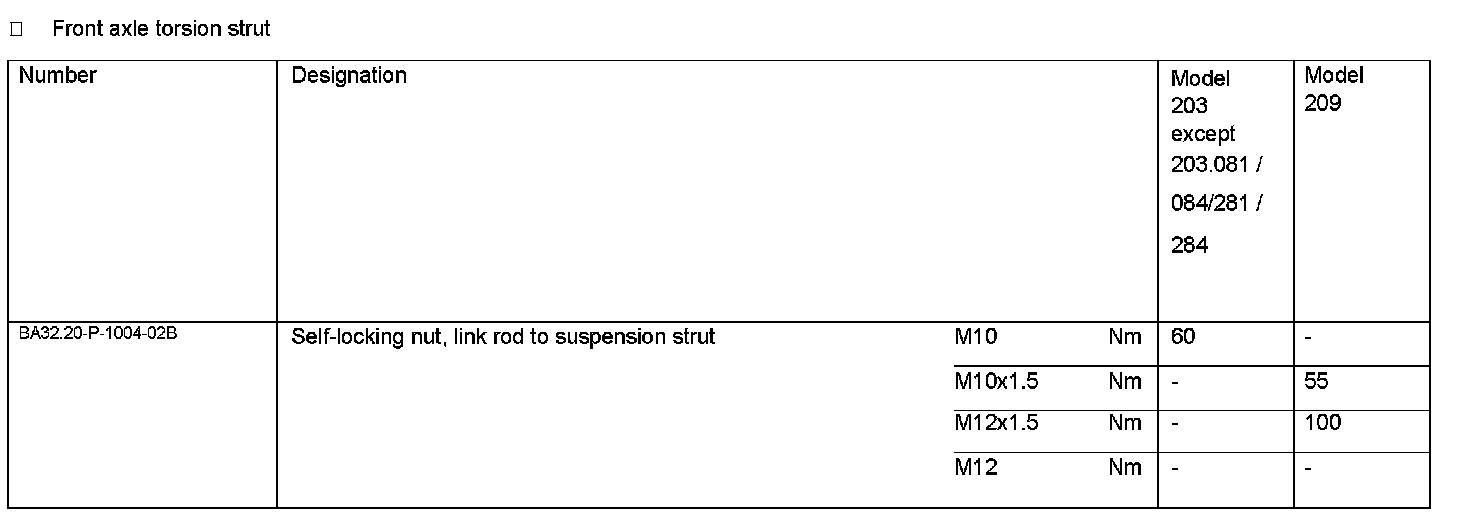

Front axle torsion strut
