Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Strut / Shock Absorber >> Service and Repair >> Removal and Replacement >> AR32.25-P-1016QBS Remove/Install Rear Suspension Strut

AR32.25-P-1016QBS Remove/Install Rear Suspension Strut



AR32.25-P-1016QBS Remove/install rear suspension strut
- with CODE (P98) Black Series

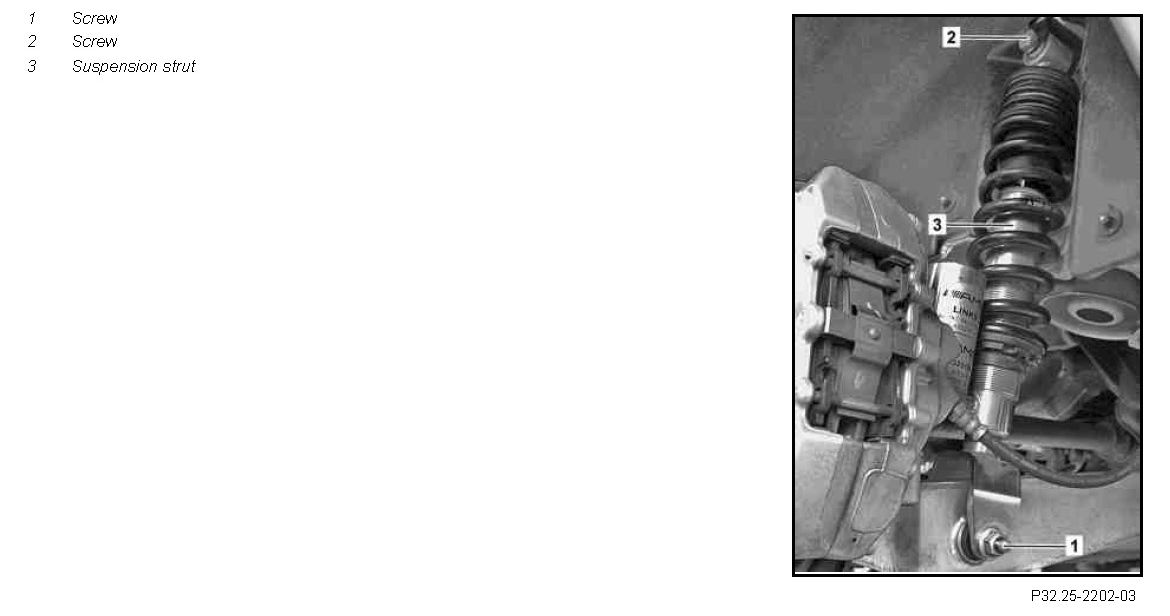

Component Identification:

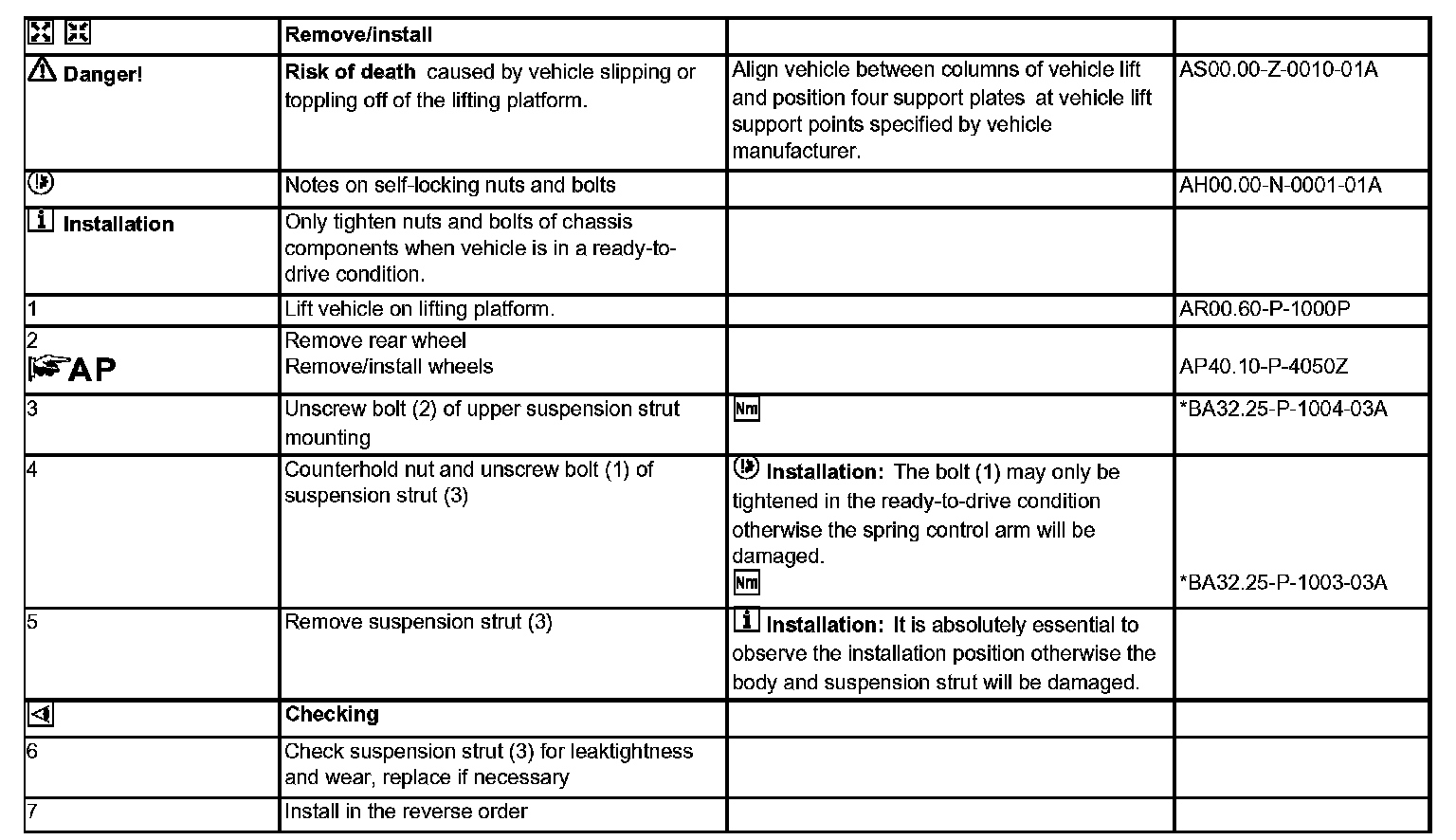

Remove/install Steps 1-7:

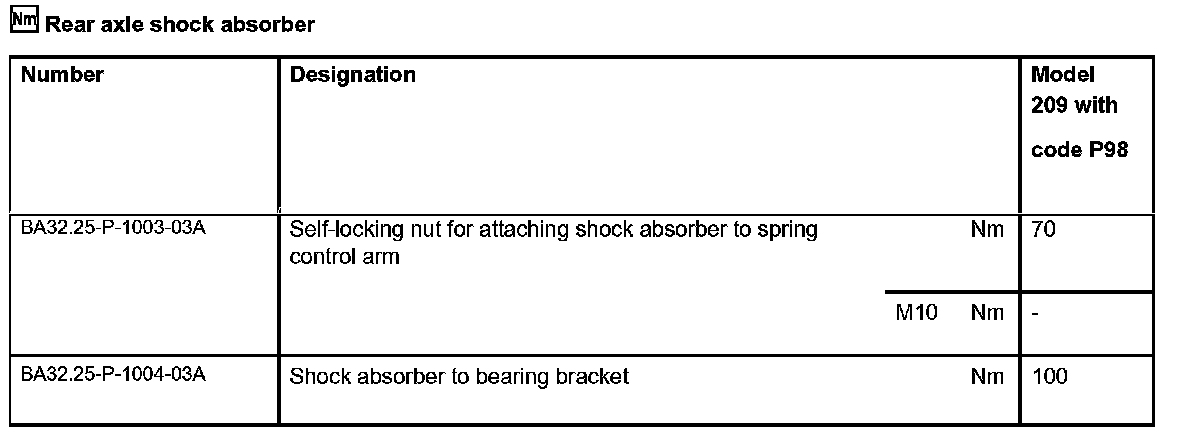

Rear axle shock absorber:
