Steering/Suspension - Alignment Requirements

Date: February 4, 2004

Order No.: P-B-33.15/10

Supersedes:

Group: 33

SUBJECT:
All Model 203, 211 and 220 without 4Matic

All Model 209, 215 and 230

Omission of Wheel Alignment

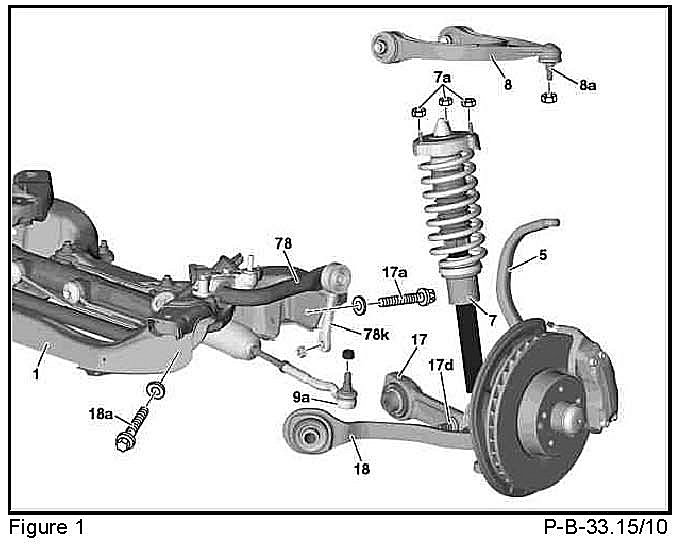

Due to close manufacturing tolerances on the above subject vehicles, a wheel-alignment is no longer required after detaching, removing, installing and replacing the torque strut (Figure 1, 18) on the front axle.
