Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> Replace Bottom Radial Shaft Sealing Ring on Control Head [AR46.20-P-0003Q]

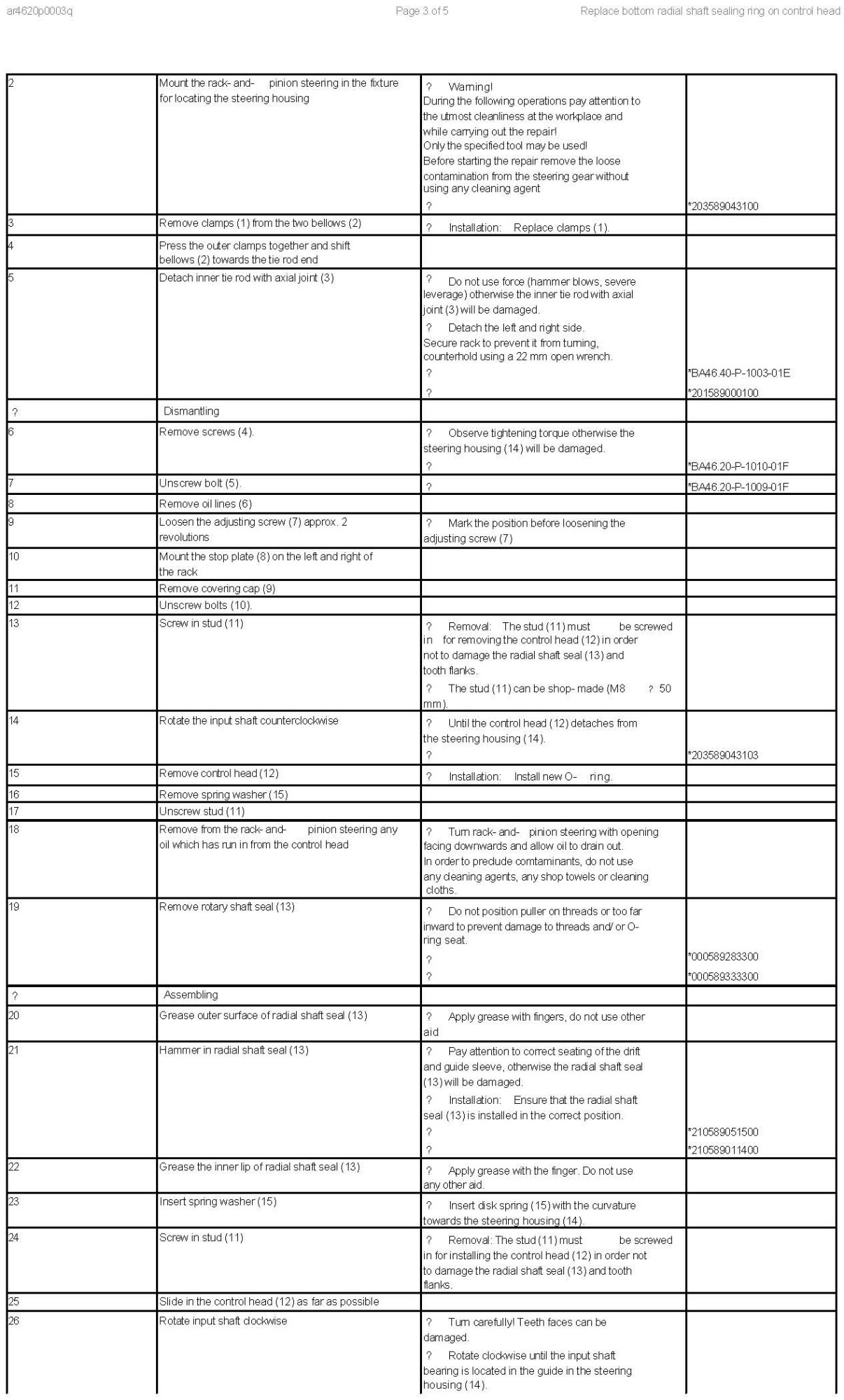

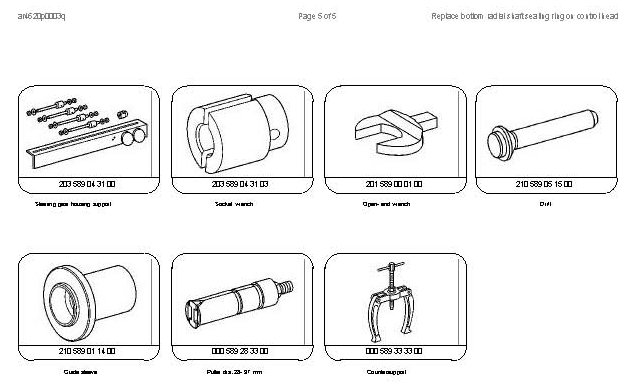

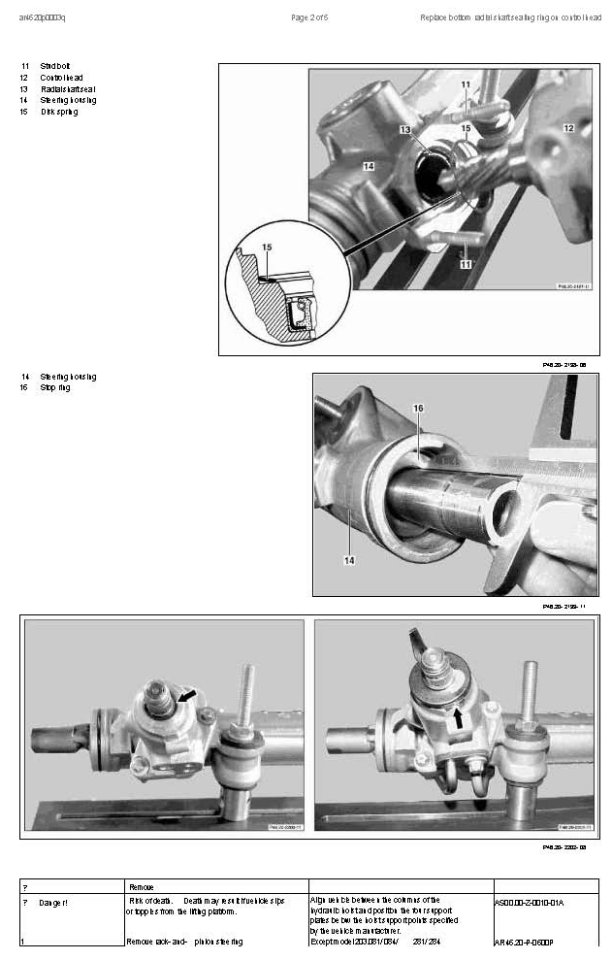

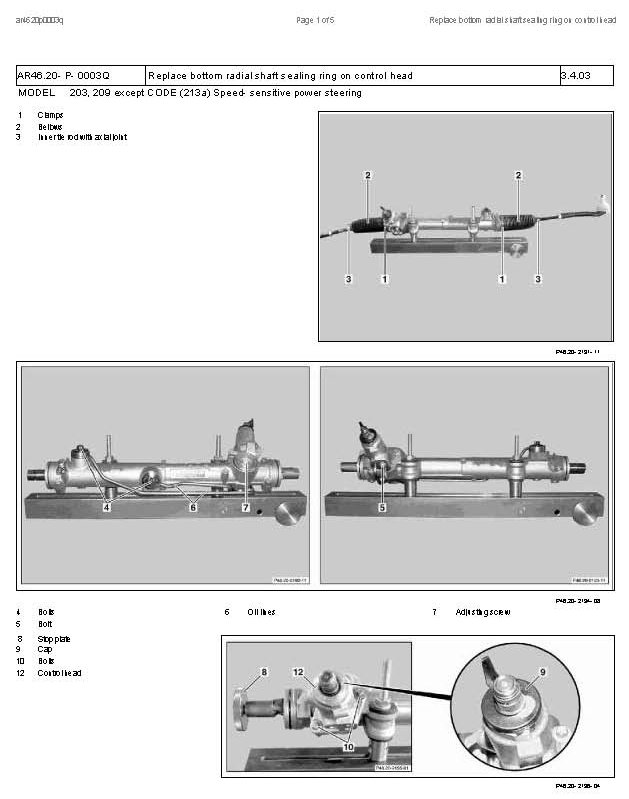

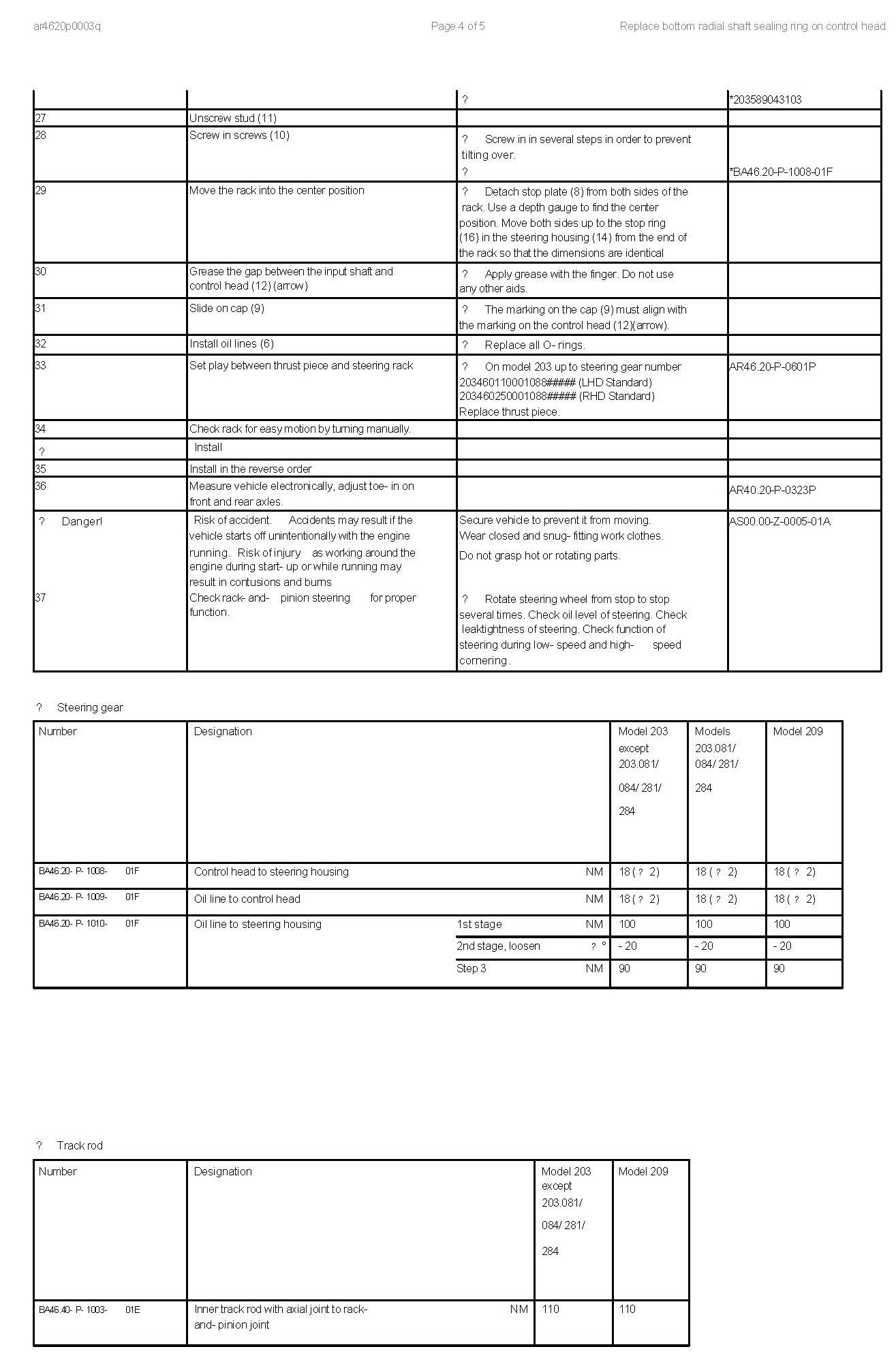

Replace Bottom Radial Shaft Sealing Ring on Control Head [AR46.20-P-0003Q]


Replace bottom radial shaft sealing ring on control head
