Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> Checking Oil Pressure of Power Steering Pump [AR46.30-P-0100PB]

Checking Oil Pressure of Power Steering Pump [AR46.30-P-0100PB]

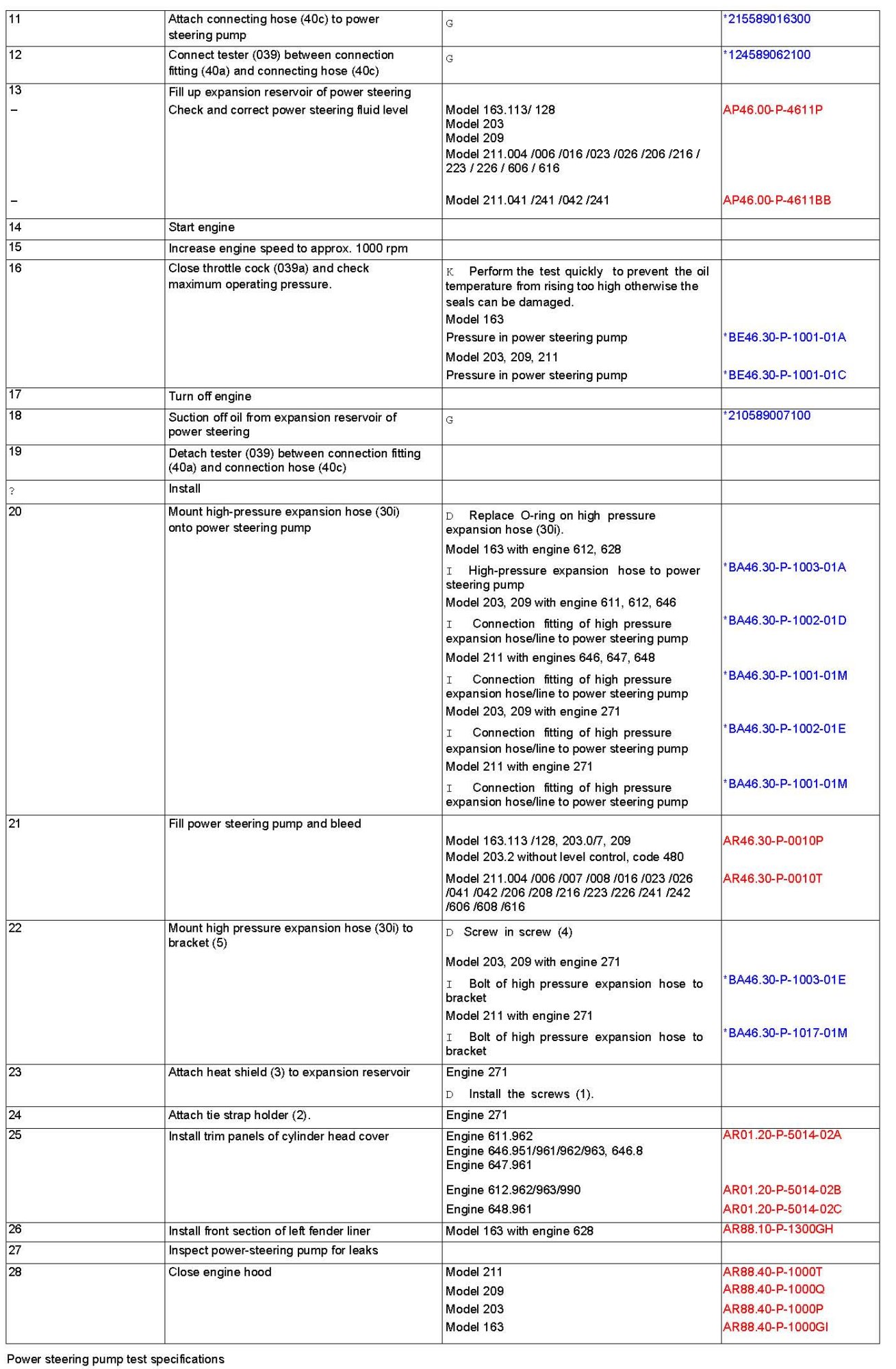

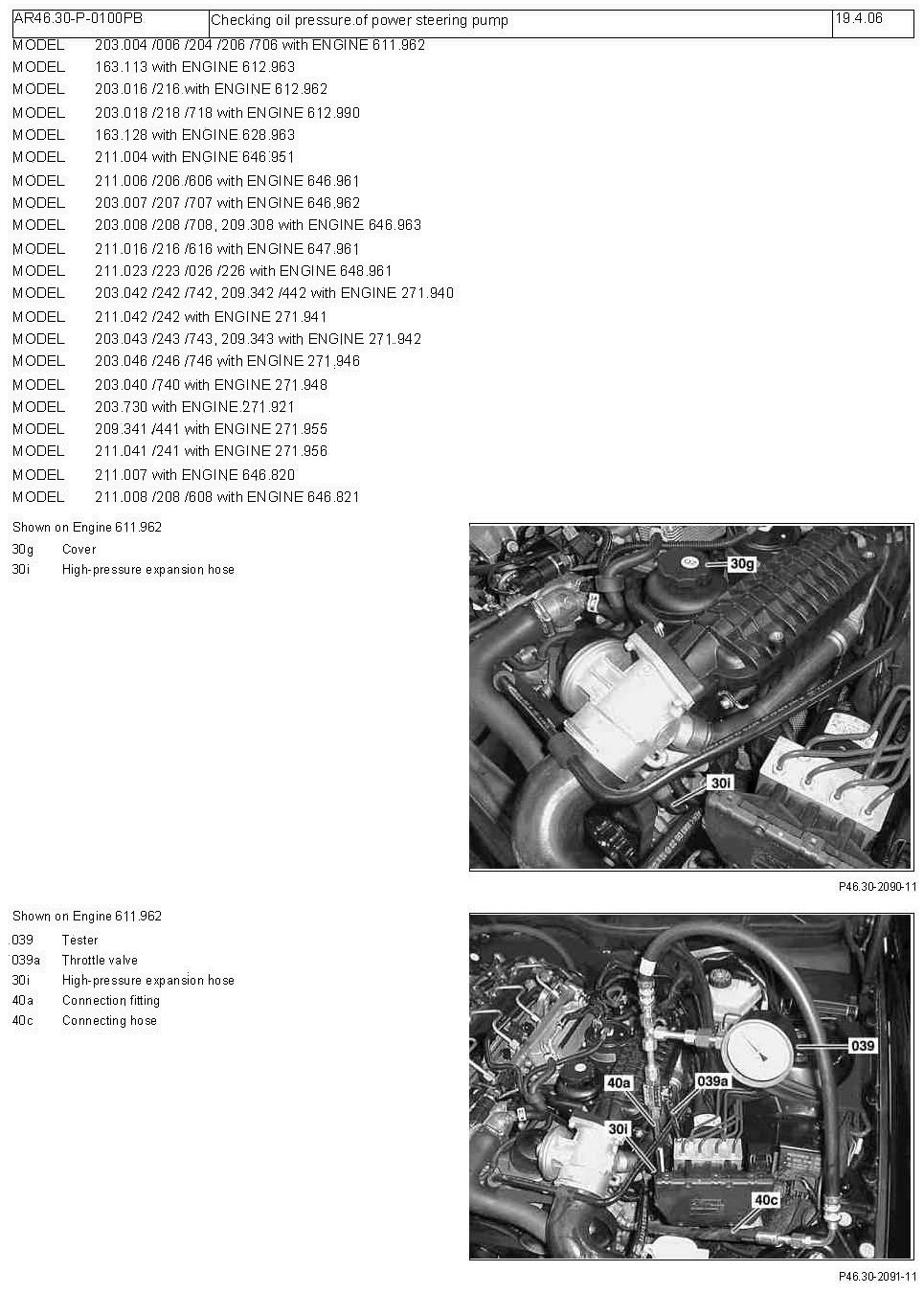

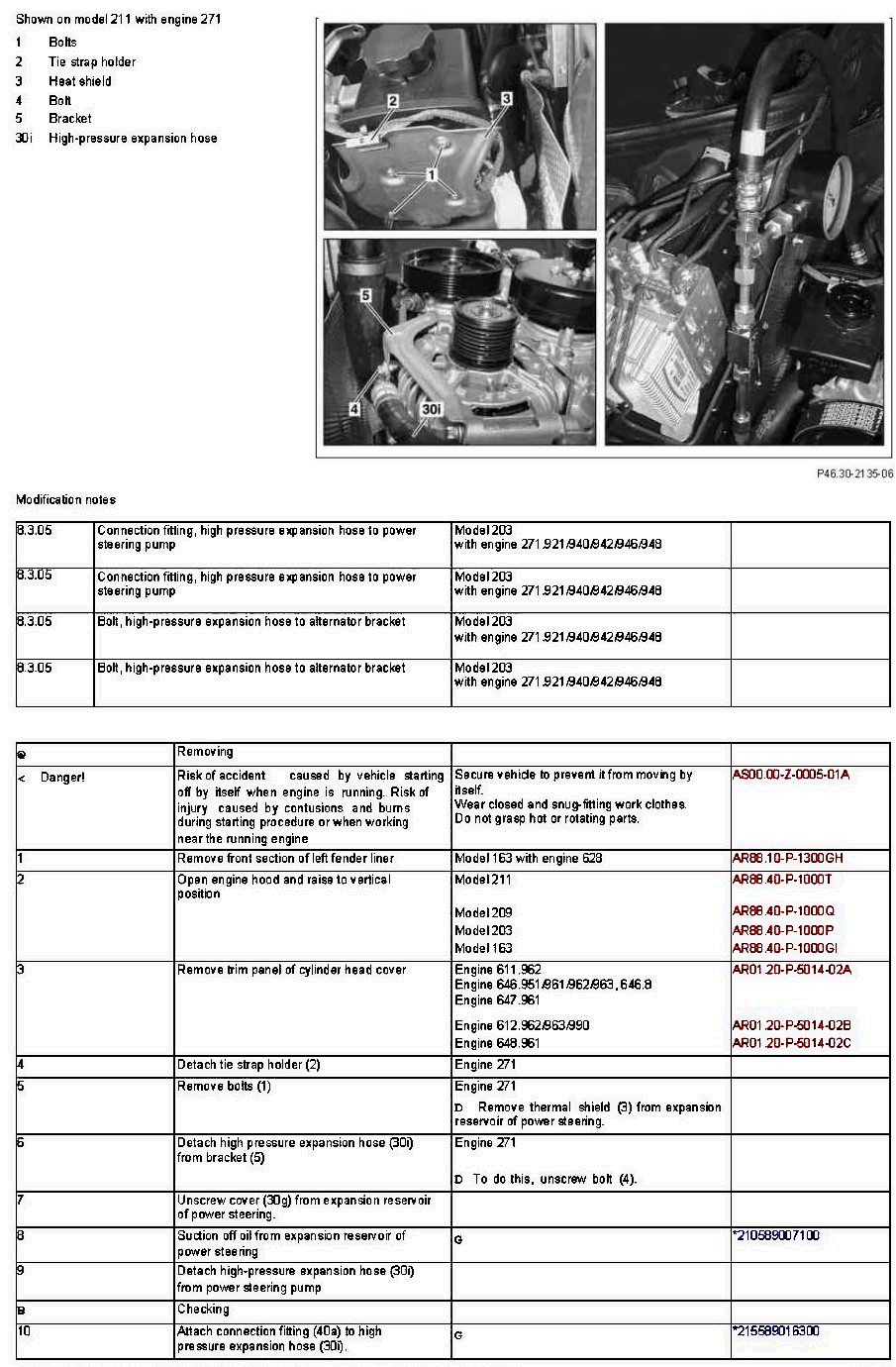

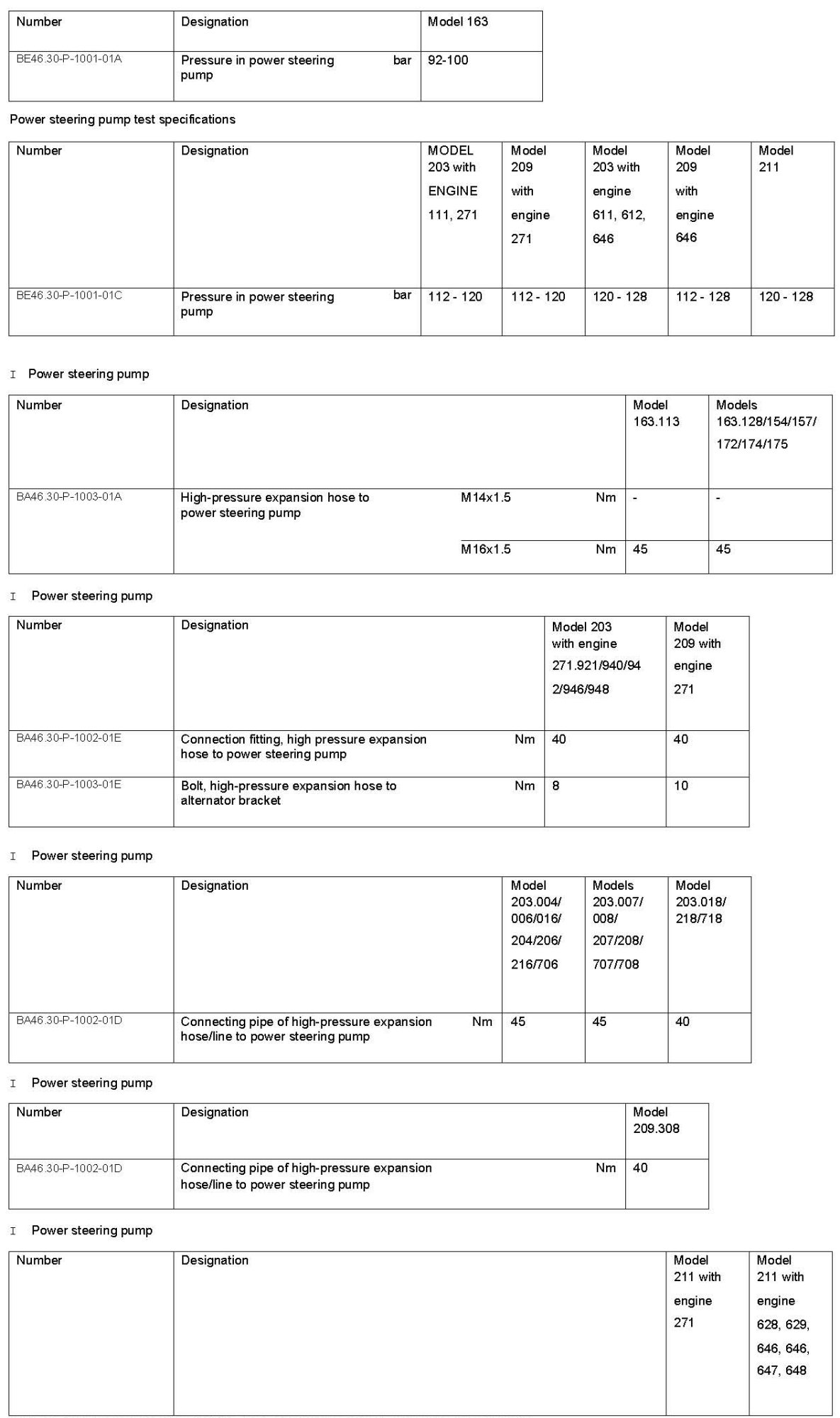

Checking oil pressure of power steering pump
