Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Testing and Inspection >> AR46.20-P-3015P Check/Adjust Center Steering Position on Steering Gear

AR46.20-P-3015P Check/Adjust Center Steering Position on Steering Gear



AR46.20-P-3015P Check and adjust center steering position on steering gear

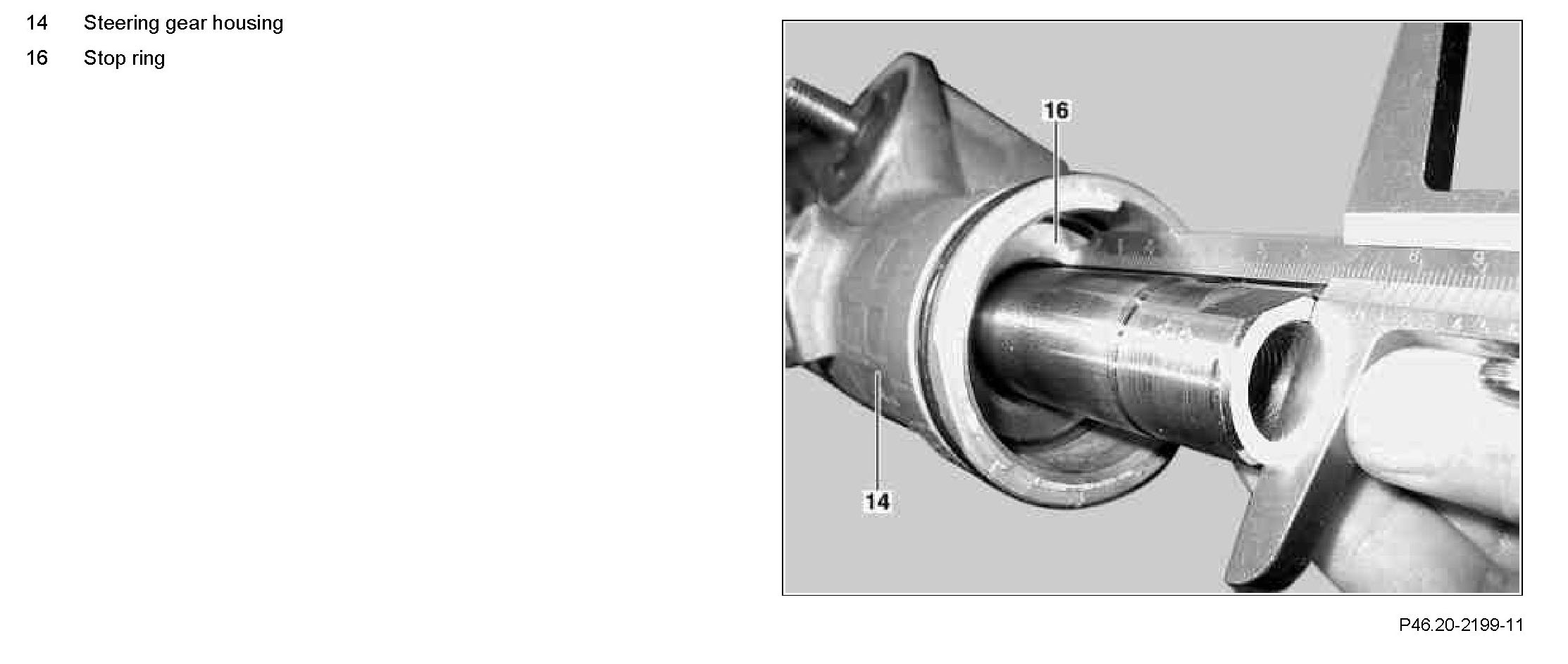

Component Identification:

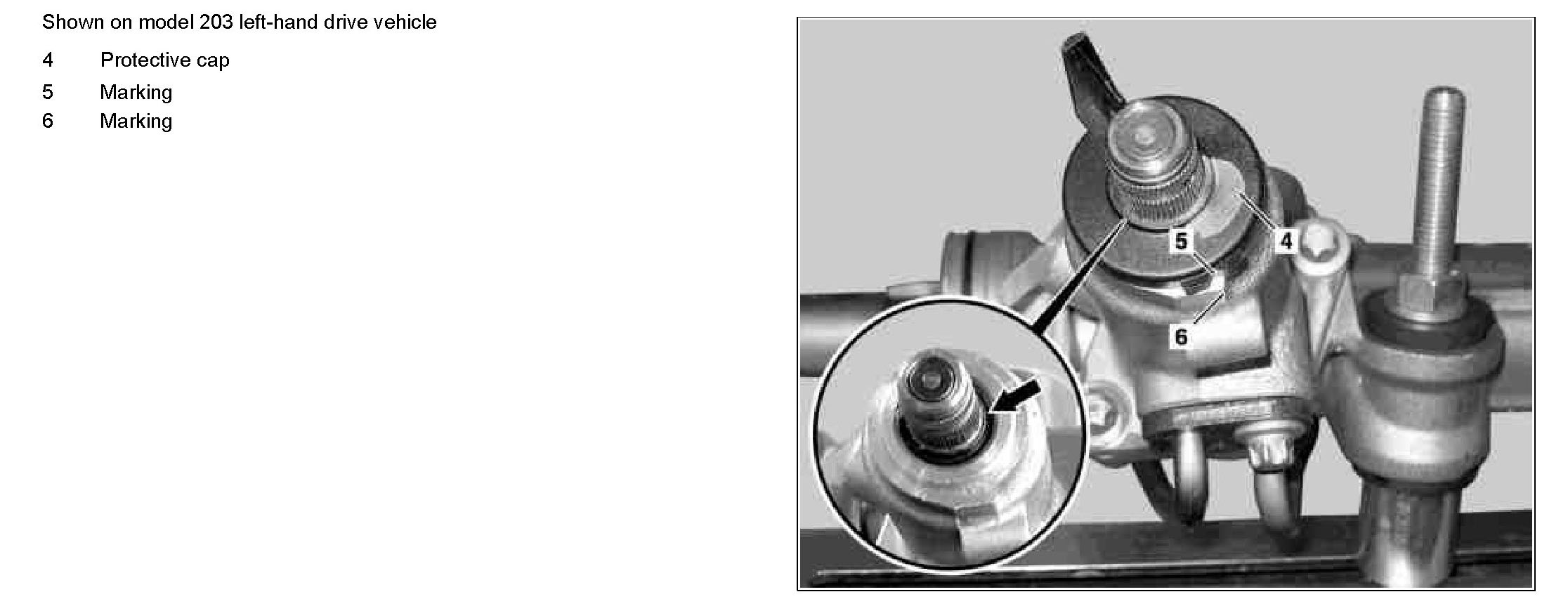

Component Identification:

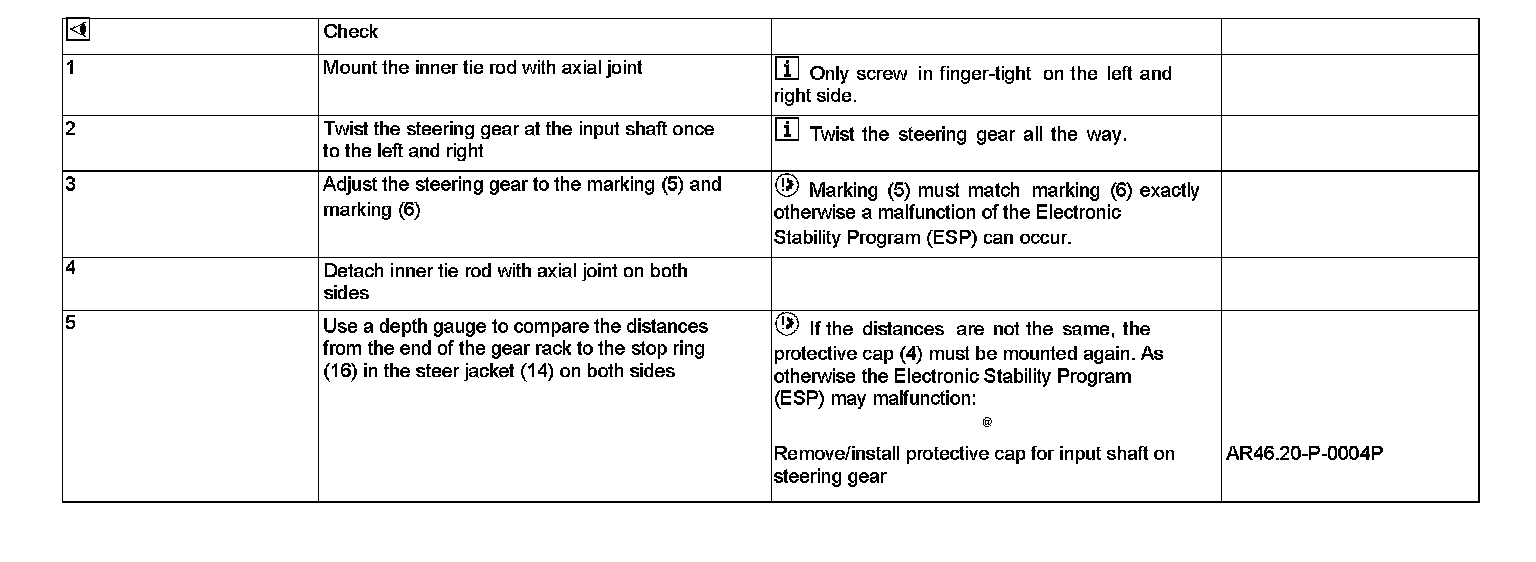

Steps 1 - 5:
