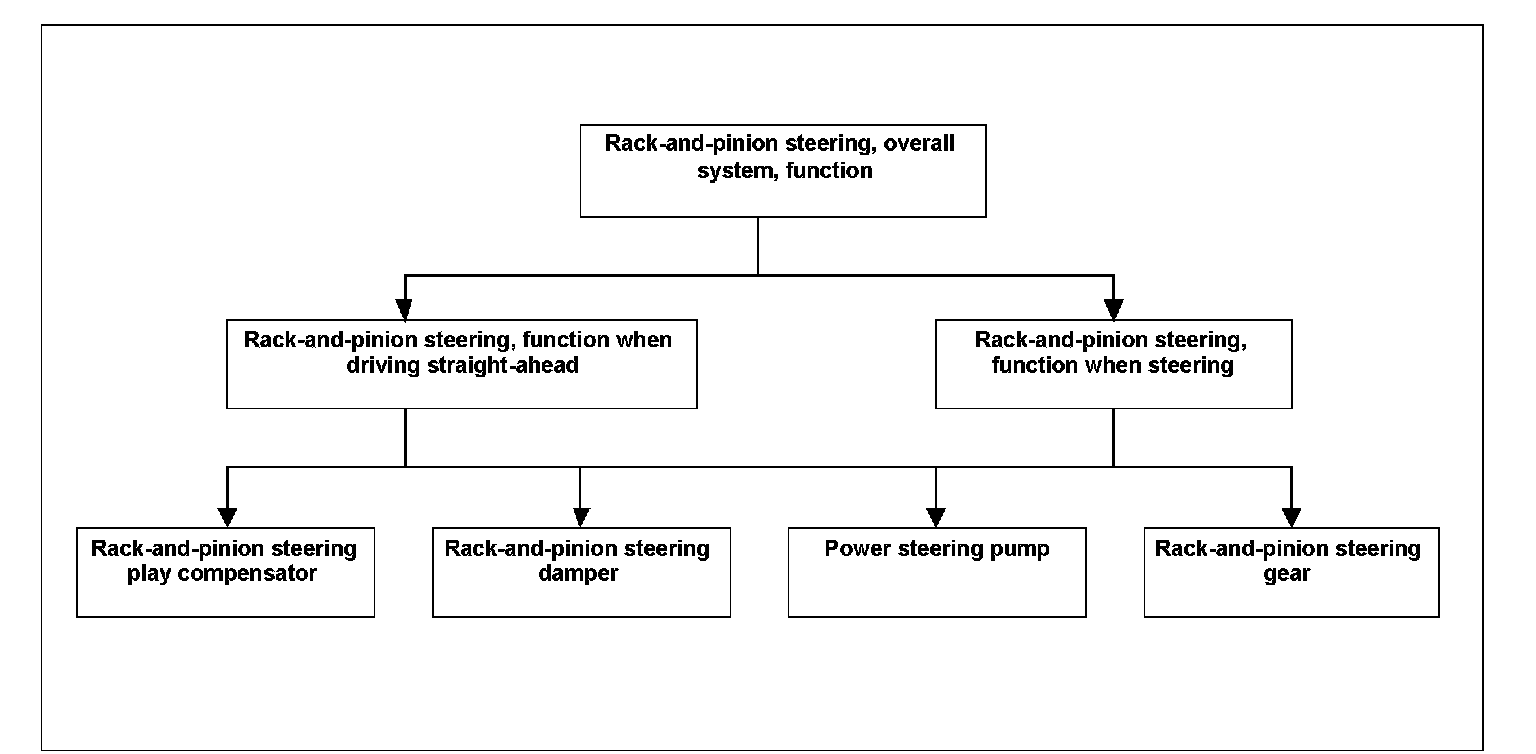

GF46.25-P-0001P Rack-and-Pinion Steering, Overall System, Function



GF46.25-P-0001P Rack-and-pinion steering, overall system, function
- except CODE (213) Speed-sensitive power steering

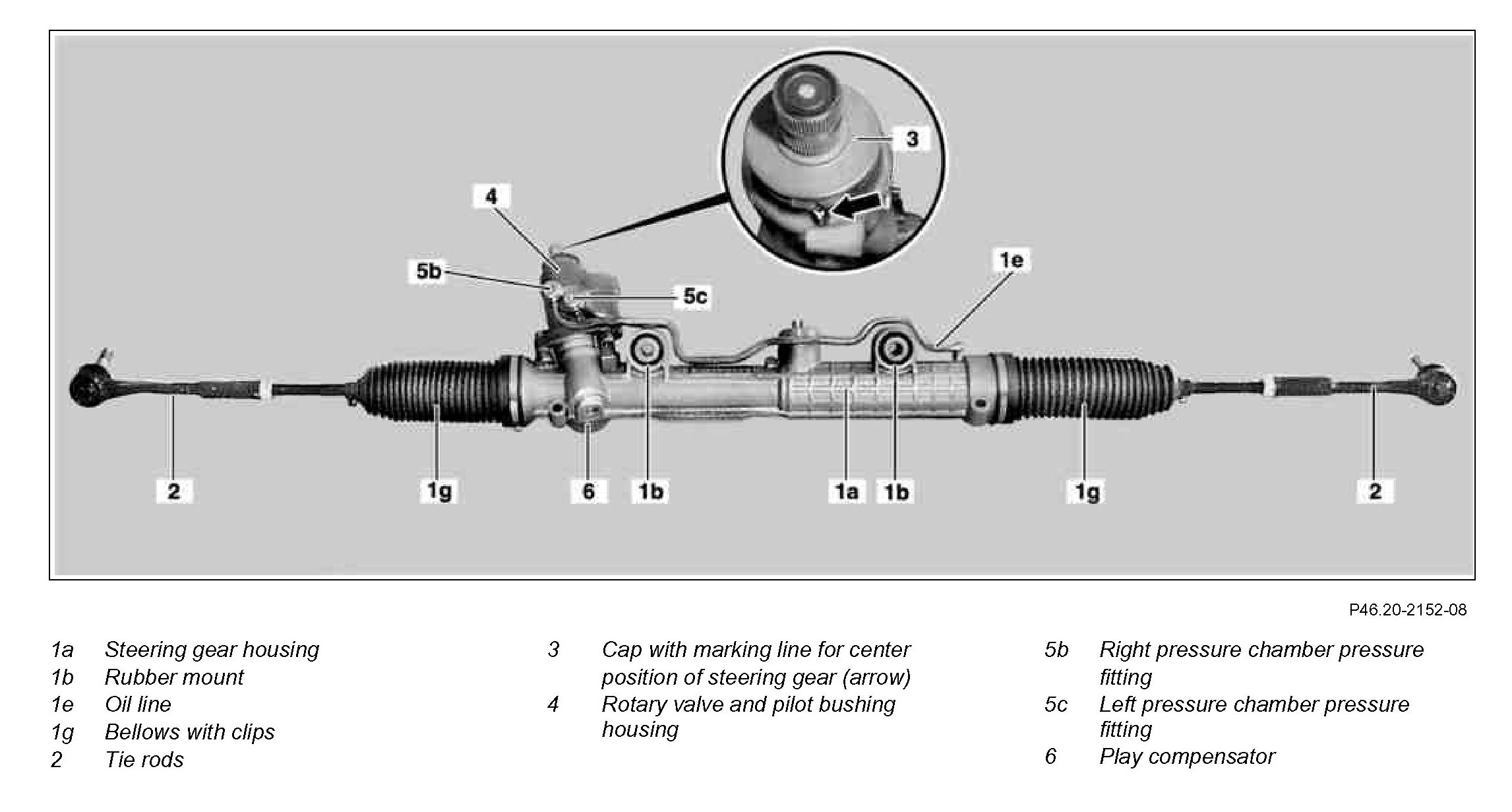

Component Identification:
