CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Steering and Suspension
>>
Wheels and Tires
>>
System Specifications
System Specifications
BE40.10-P-1000-01A

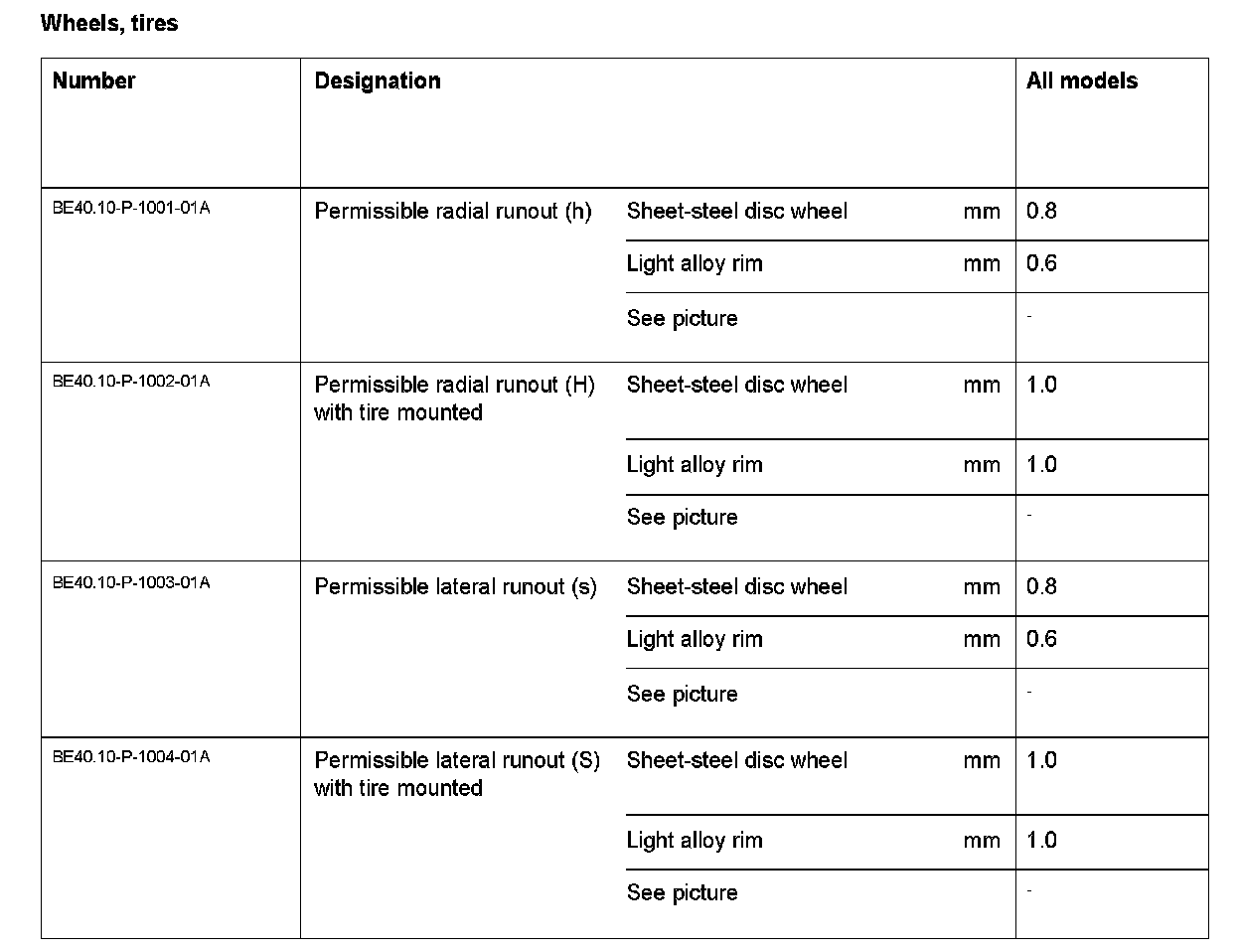

Wheels
,
Tires
Model 124, 129, 140, 168, 170, 202, 203, 208, 210, 211, 215, 220, 230
