BE40.30-P-1000-06D Test Values For Distance and Comparison Measurement on Front Axle



BE40.30-P-1000-06D Test values for distance and comparison measurement on front axle

Modification Notes:

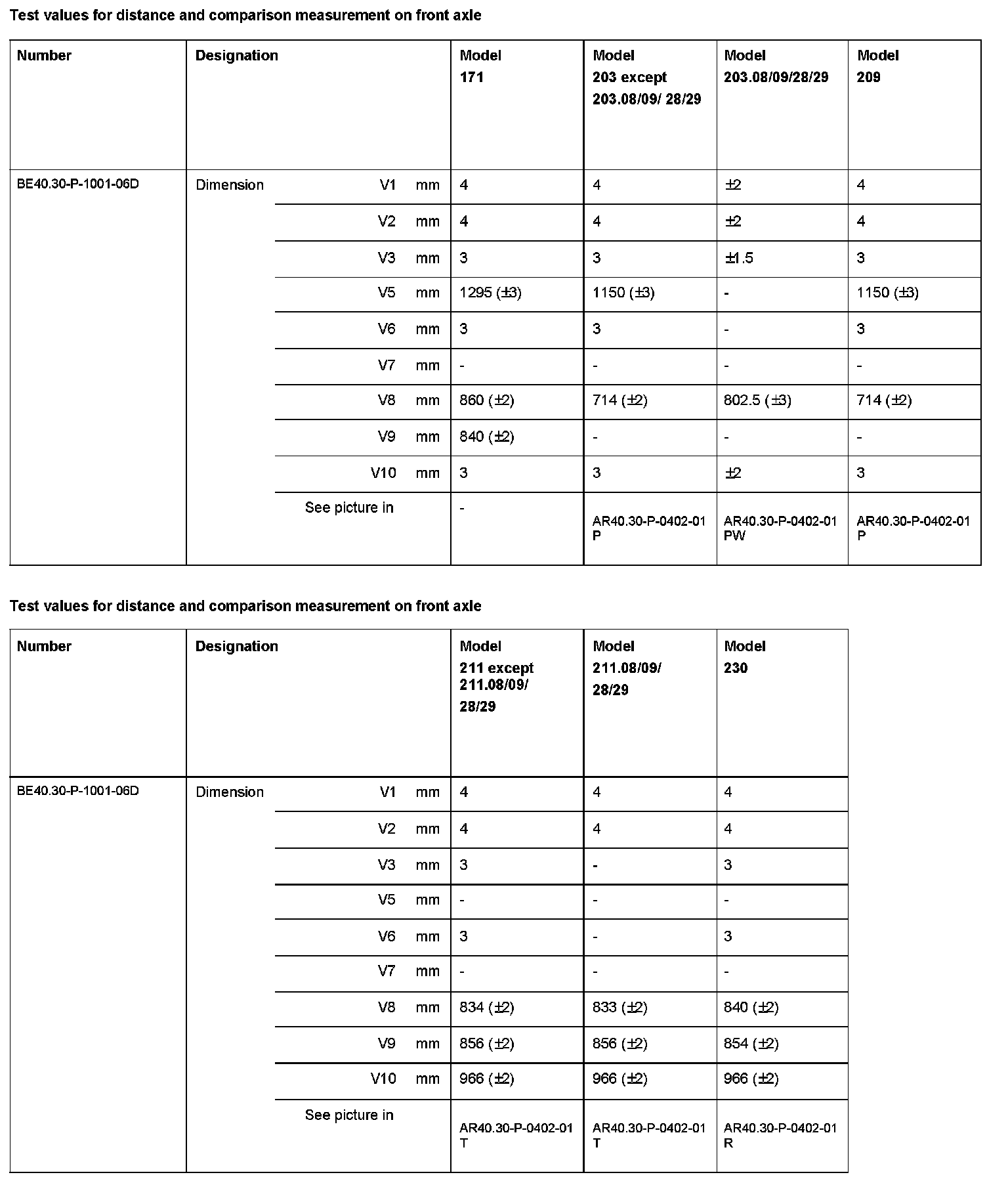

Test Values For Distance And Comparison Measurement On Front Axle:
