Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering and Suspension >> Alignment >> BE40.20-P-1000-02D Vehicle Level - Front Axle

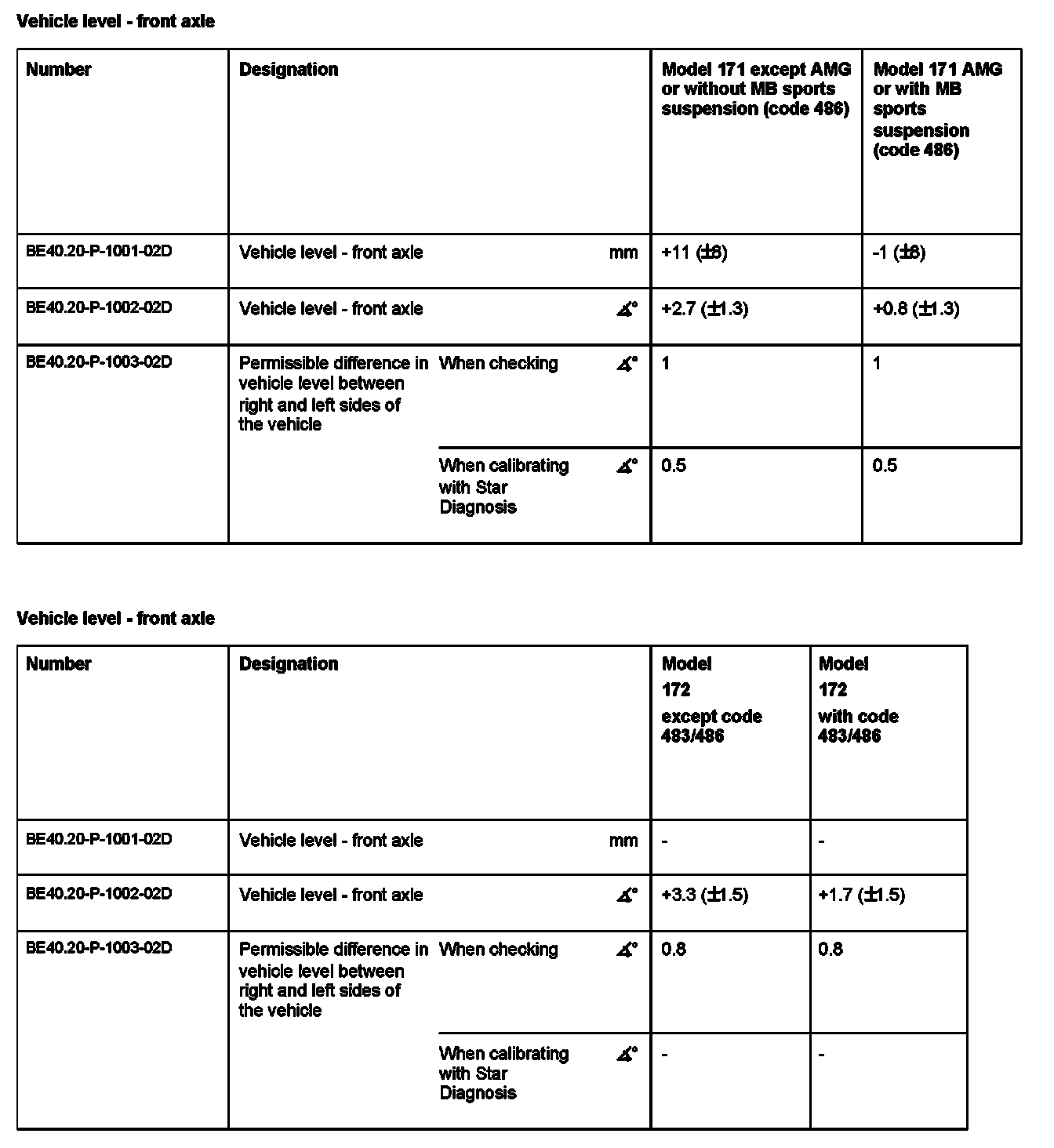

BE40.20-P-1000-02D Vehicle Level - Front Axle




BE40.20-P-1002-02D Vehicle Level - Front Axle
