Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> Compressor HVAC

Compressor HVAC

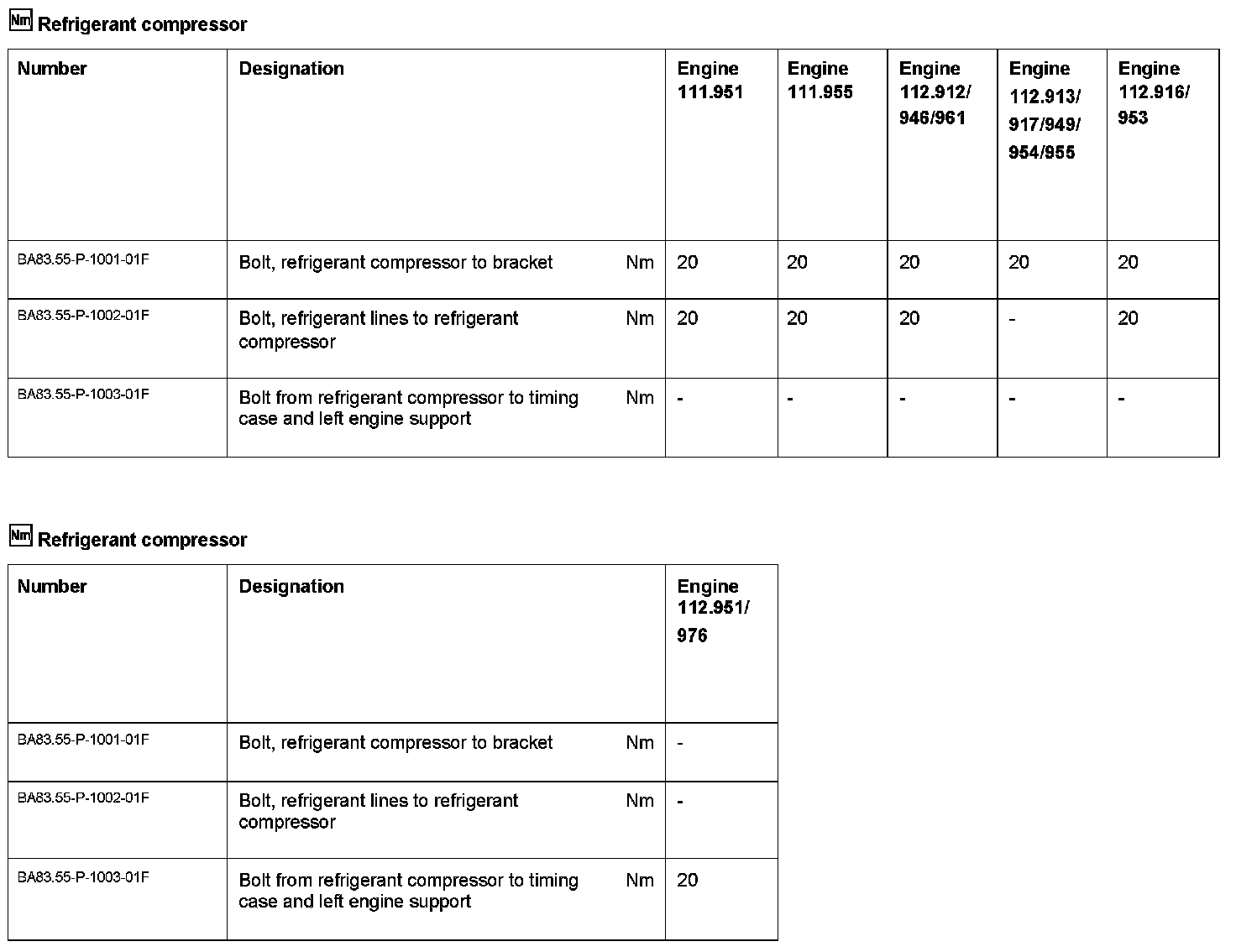

BA83.55-P-1000-01F Refrigerant Compressor


Refrigerant Compressor:
