Valve Guide
BE05.30-P-1000-02D Test values for
valve guides

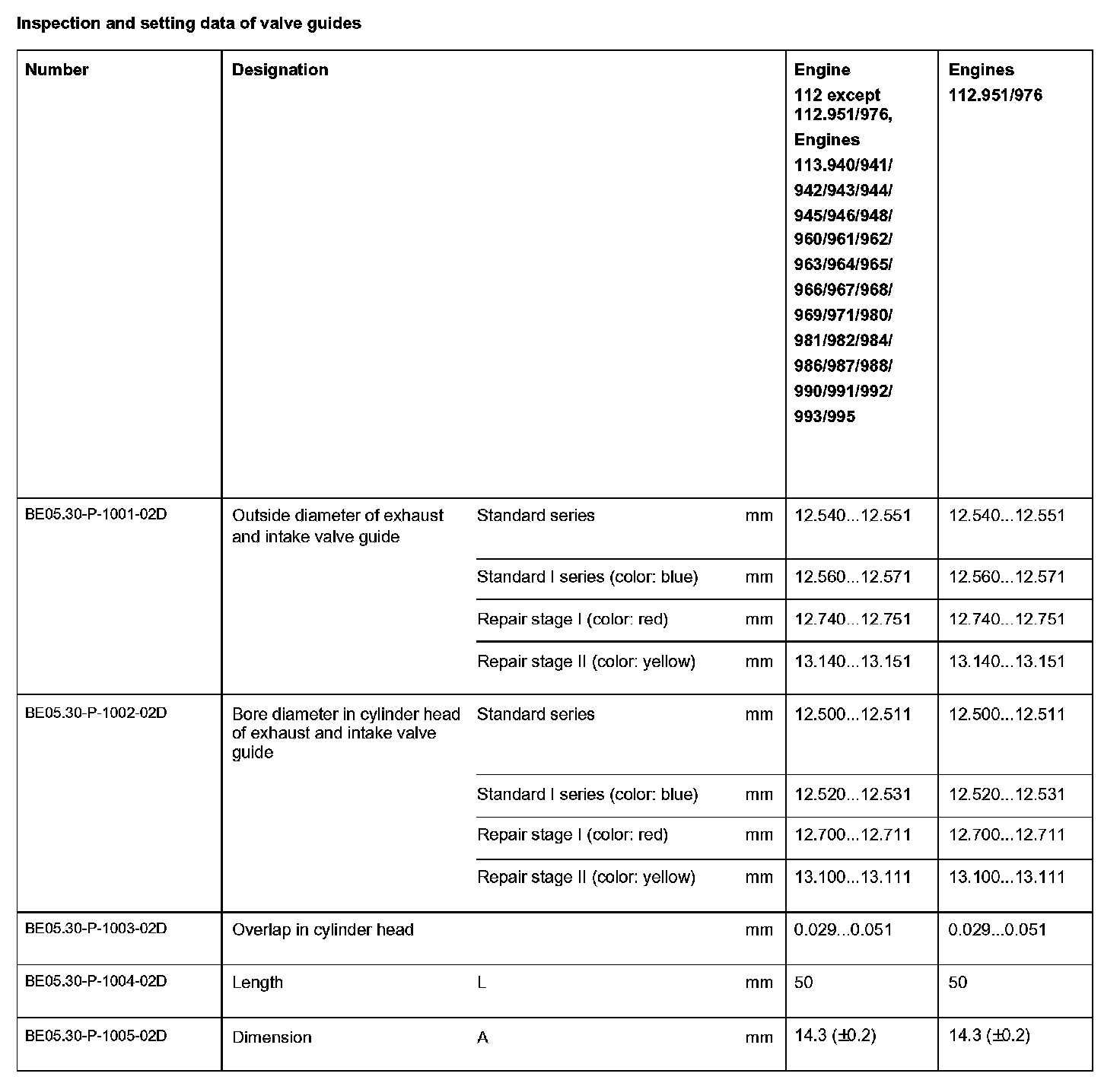

Inspection and setting data of valve guides:

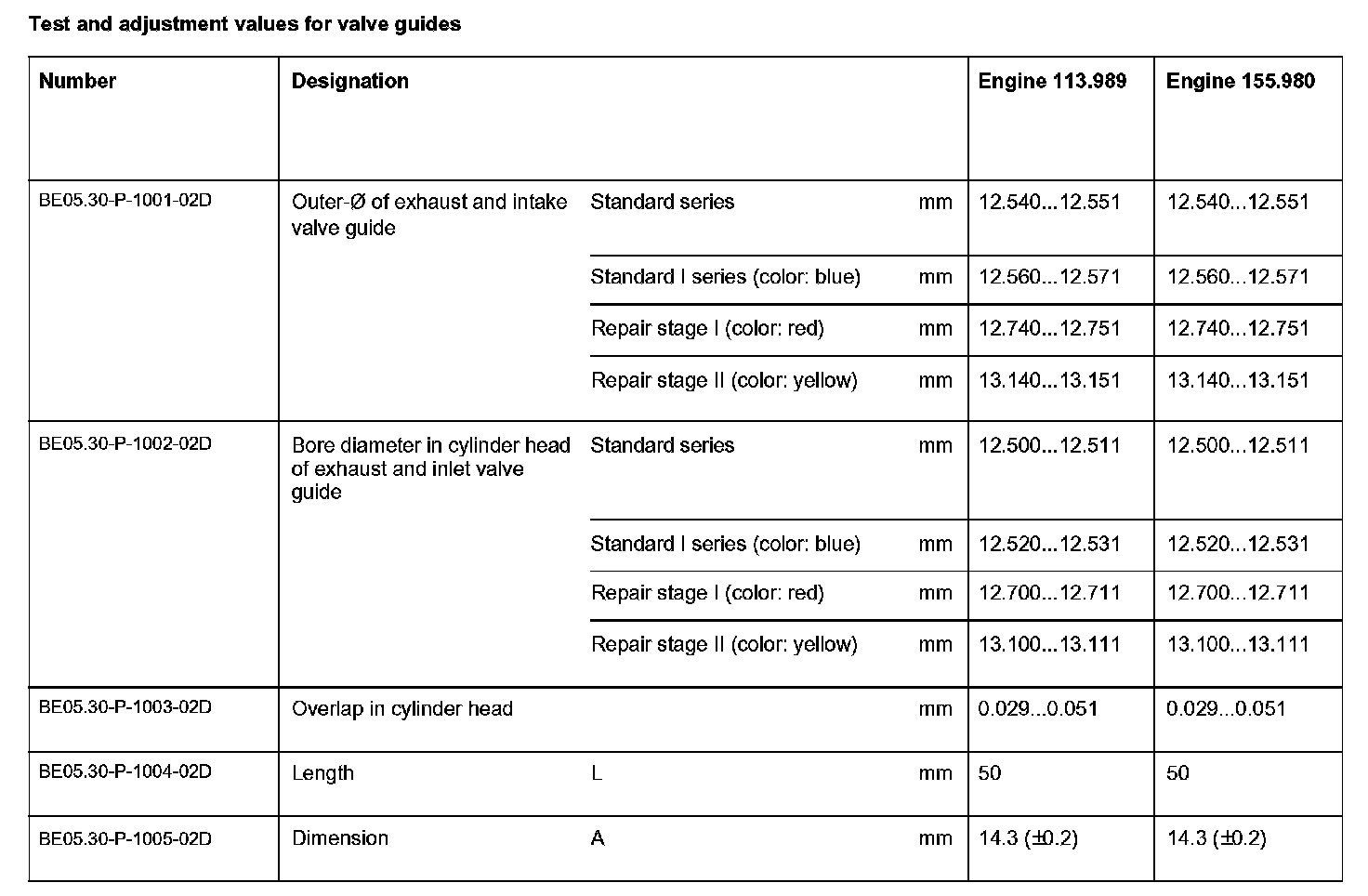

Test and adjustment values for valve guides:
