BE35.31-P-1000-02G Test Values For Friction Torque of Rear Axle Differential



BE35.31-P-1000-02G Test values for friction torque of rear axle differential
- Rear axle center assembly dia. 198
- with CODE (450) Taxi version

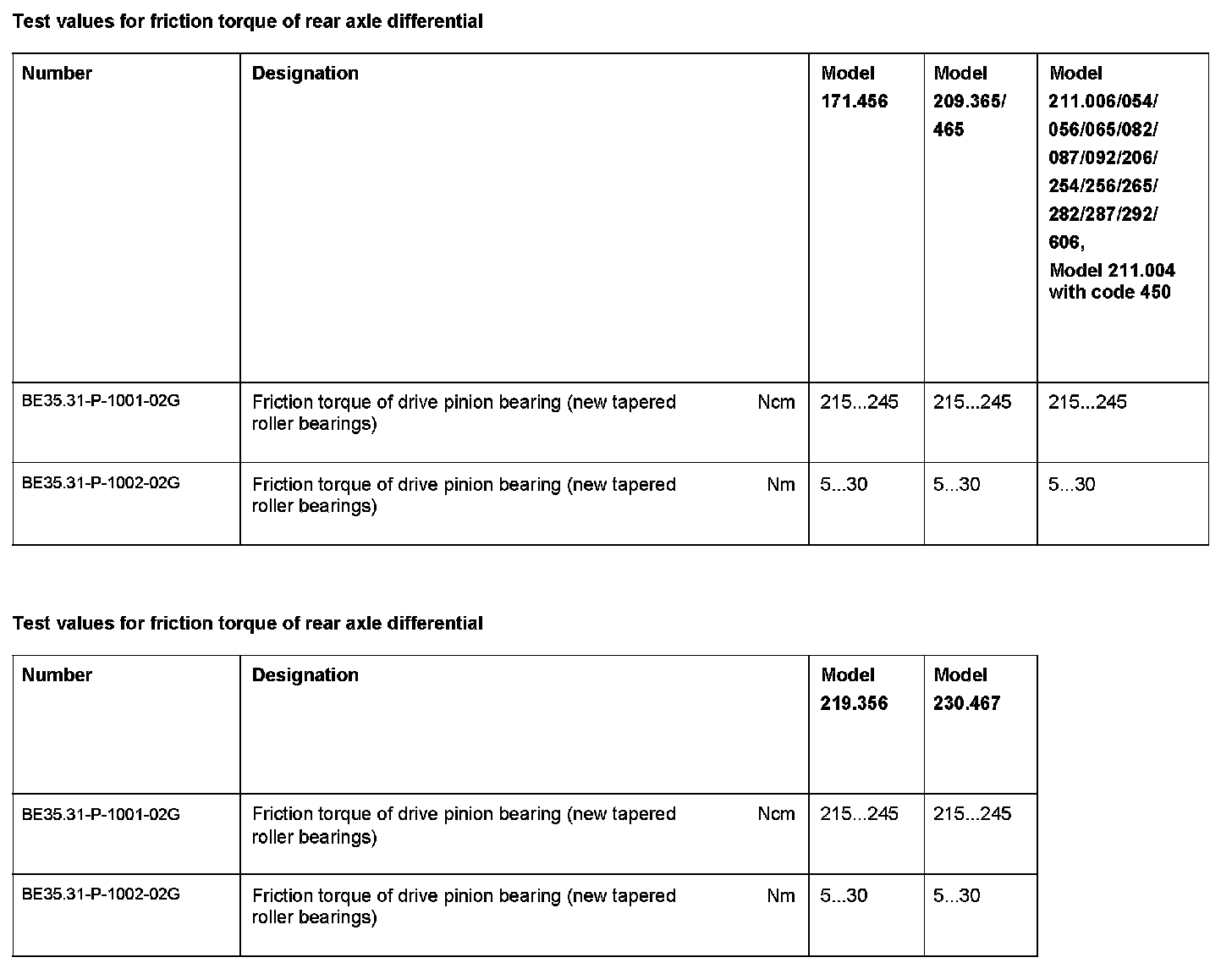

Test Values For Friction Torque Of Rear Axle Differential:
