Brakes - 'Brake Wear Visit Workshop' Message Displayed
Date: November 9, 2007Order No.: P-B-42.10/85
Supersedes:
Group: 42
SUBJECT:
Model 209.365/375/376, VIN Range F109075 up to F109172
"Brake Wear! Visit Workshop!" Displayed in Instrument Cluster without Obvious Cause

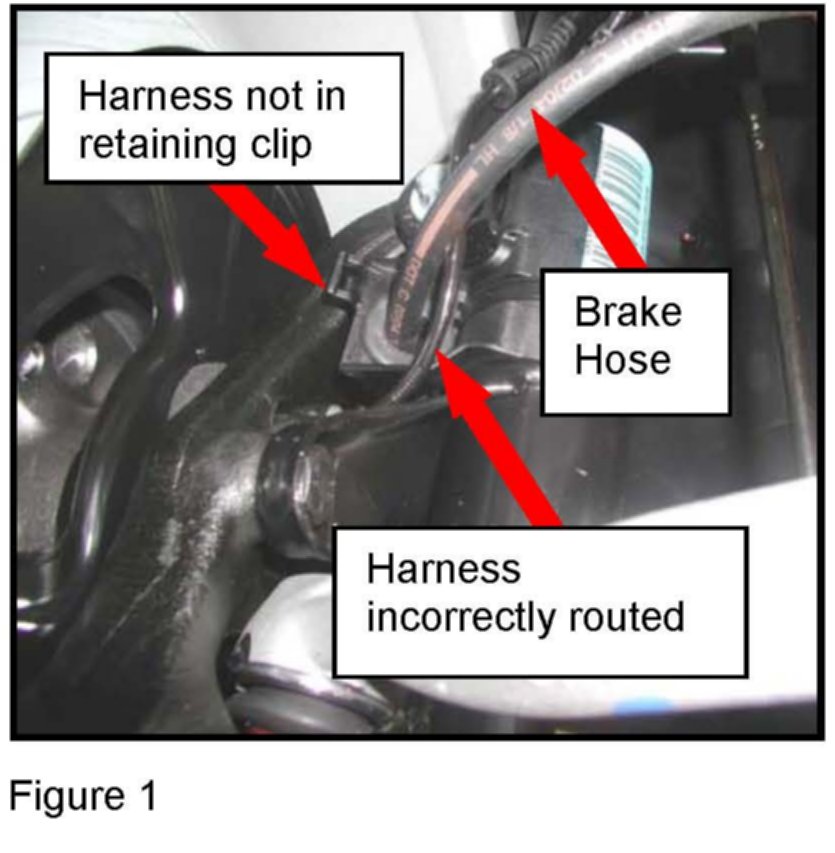

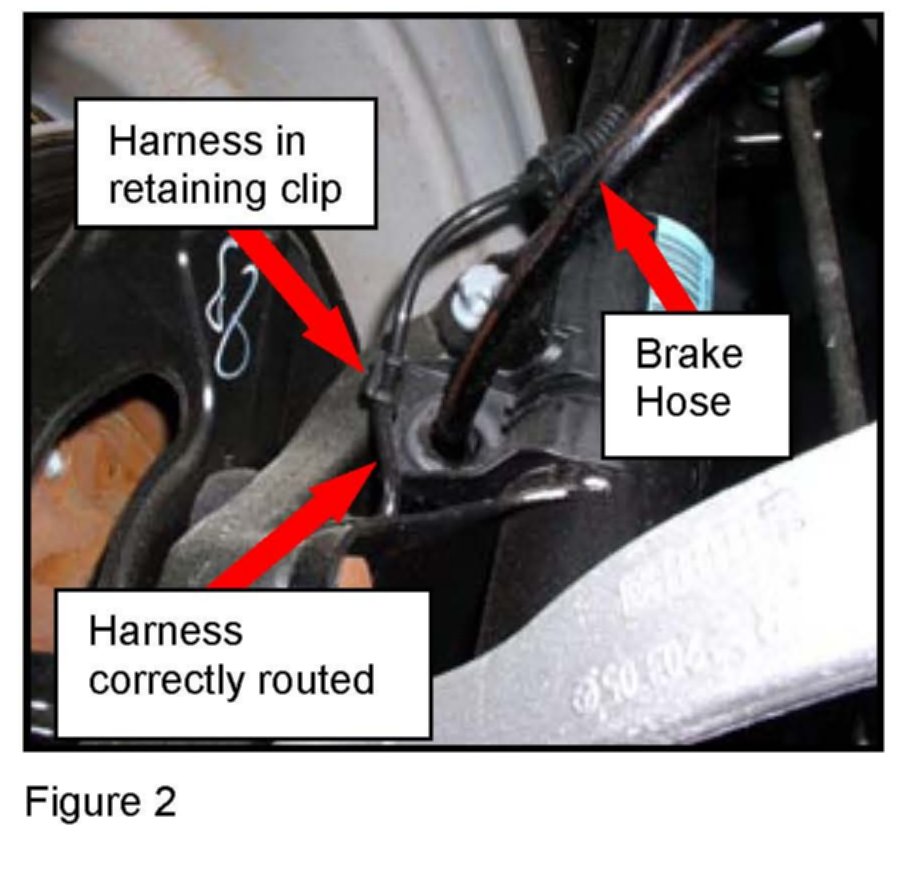

If you receive customer reports in the above model vehicles of the message "Brake Wear! Visit Workshop" displayed within the instrument cluster's multifunction display and the warning lamp for brake lining wear illuminates, the electrical harness for the brake lining wear sensor may be chafed. The chafe may be the result of a misrouted wire harness. Inspect the front sensor's wire harness for correct routing and ensure that the harness is installed in the retaining clip (Figure 1 and 2). Additionally inspect the sensor's harness in the area of the retaining clip for chafes. If the harness shows indication of chafing, replace the brake wear lining sensor. Refer to WIS documents AR42.10-P-1600PF and AH42.10-P-0003-01A.
Parts Information
Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 9, 2007. Please refer to Netstar -> Star TekInfo --> Star Time for the most current labor time allowance.

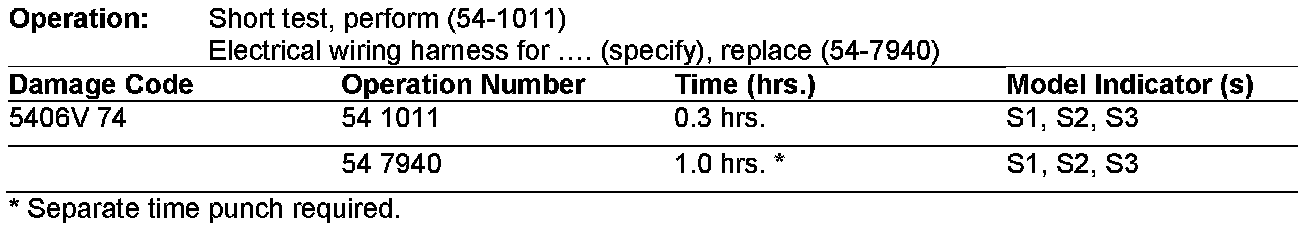

In Case of Warranty, use the table.
