AZ54.65-P-0001-05Q Install Display Instrument

AZ54.65-P-0001-05Q Install Display Instrument

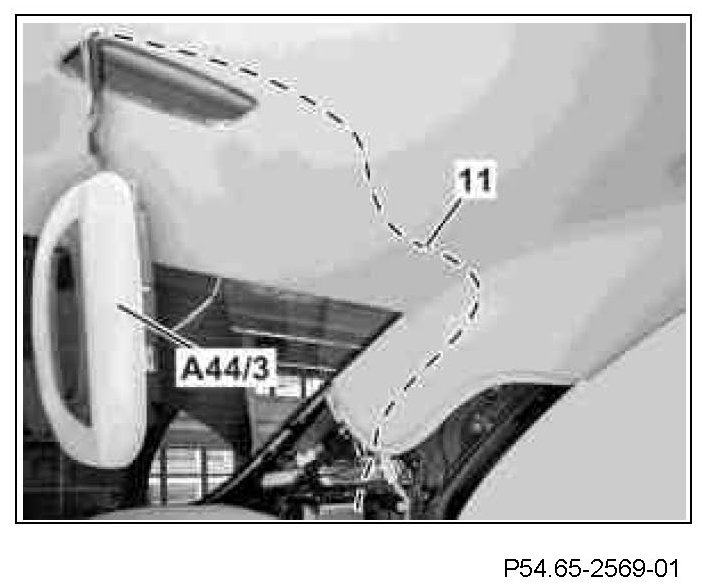

1. Connect PTS warning display (A44/3) to the wiring harness for warning display (11) and route the wiring harness behind the roof liner to the left C pillar as per the Figure.

Stick wiring harness to the roof liner with adhesive felt.

2. Route wiring harness along existing cables from the C pillar into the left of the trunk to the rear SAM.
3. Connect wiring harness for interior lamp to the warning element (A44/3).







4. In the trunk open the 3-pin coupling of the connector (X35/37) of the wiring harness for warning display and remove the green/white, brown/yellow and black/pink cable (gn/ws, br/ge, sw/rs).

3-pin coupling is not used anymore.

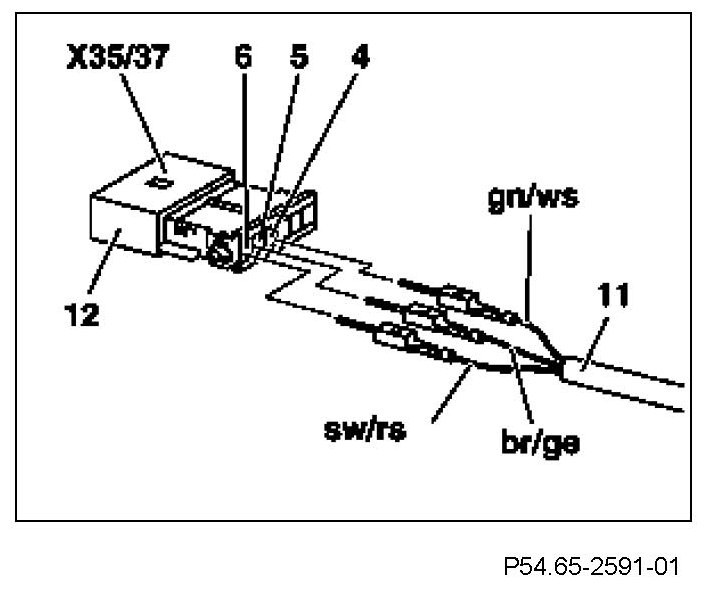

5. From the wiring harness (11), insert the green/white cable (gn/ws) into chamber 4, the brown/yellow cable (br/ge) into chamber 5 and the black/pink cable (sw/rs) into chamber 6 of the new coupling (12).

A new connector (X35/37) is created.
