AR54.65-P-0002Q Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

AR54.65-P-0002Q Remove/Install Parktronic System (PTS) Sensors In Rear Bumper
- with CODE (220a) Parktronic system (PTS)







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery
2 Remove rear bumper

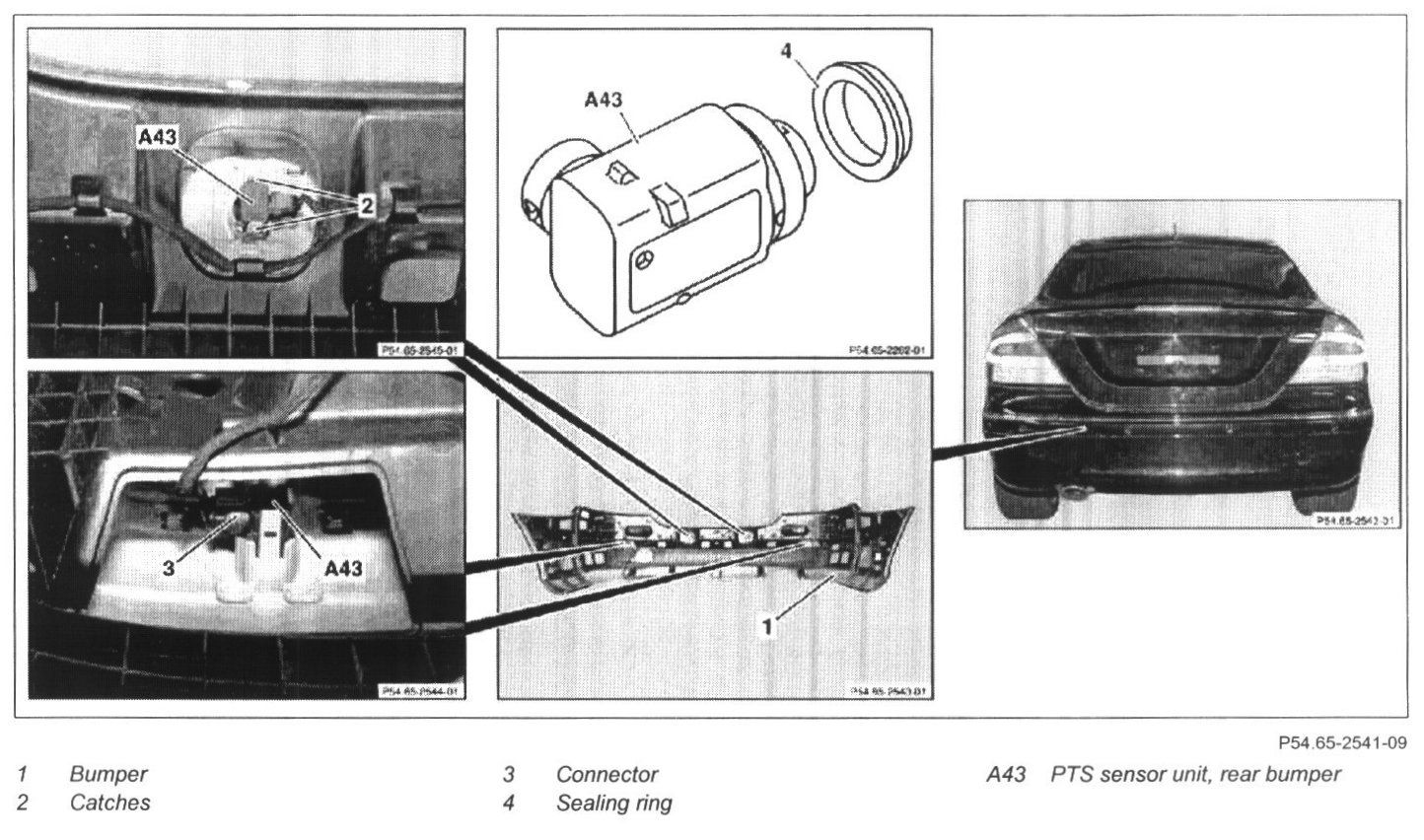

3 Unlock connector (3) and disconnect
4 Unlock catches (2) in direction of arrow

NOTE: The outer sensor units must be released using a suitable tool.

- See Special Tools below

5 Remove PTS sensor unit (rear bumper) (A43) from bracket

NOTE:
Installation: Check sealing ring (4) and replace if damaged.
6 Install in the reverse order
7 Perform basic programming
8 Read diagnostic trouble code memory and erase
9 Check for proper function

Special Tools

Releasing Tool - 168 589 02 31 00:
