Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Seat Occupant Classification Module - Air Bag >> Description and Operation >> GF91.60-P-4105QM WSS Control Unit, Location/Task

GF91.60-P-4105QM WSS Control Unit, Location/Task



GF91.60-P-4105QM WSS Control Unit, Location/Task
- as of 1.6.04
- with CODE (494a) USA version

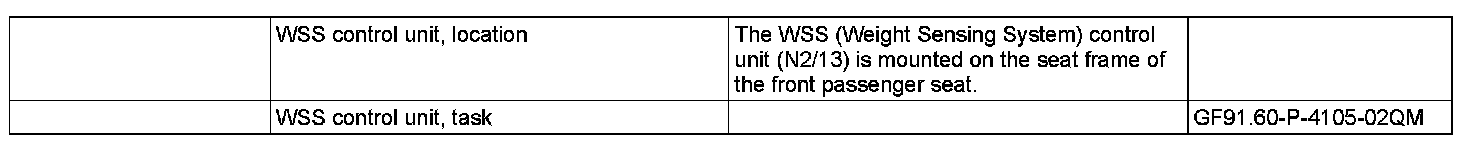

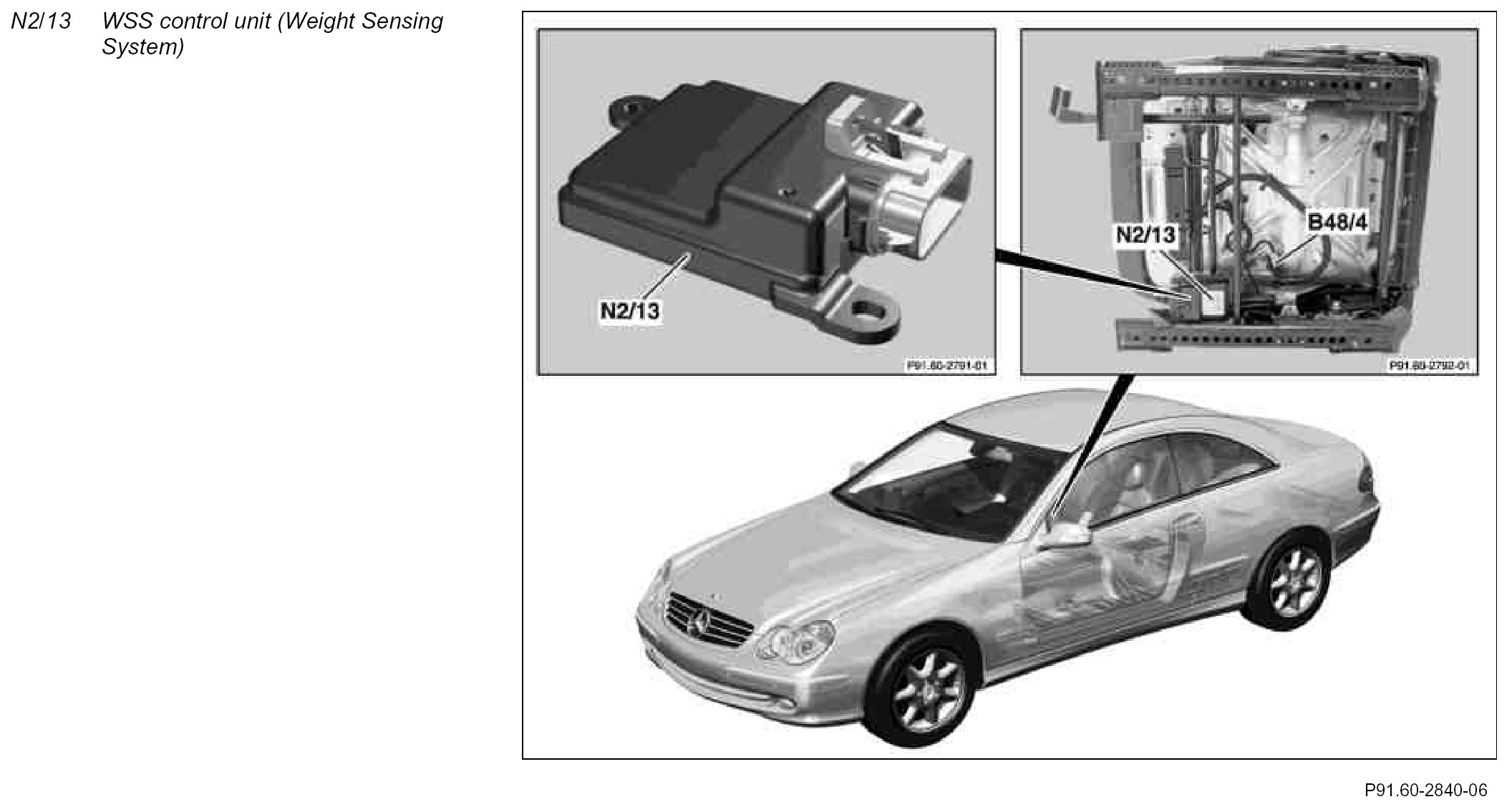

Component Identification:
