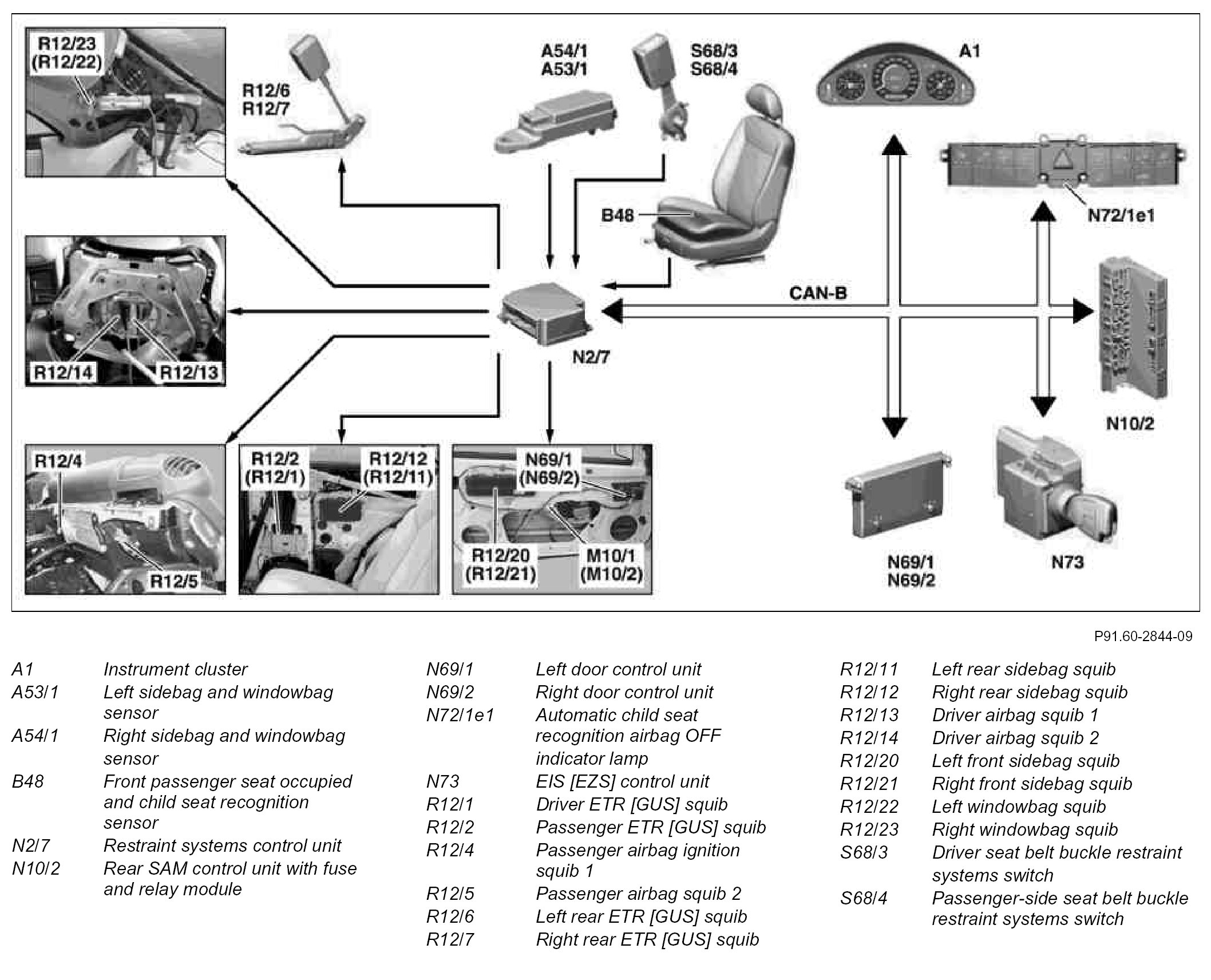

GF91.60-P-0002-03QM Supplemental Restraint System (SRS), Block Diagram



GF91.60-P-0002-03QM Supplemental Restraint System (SRS), Block Diagram
- as of 1.6.04
- except CODE (494a) USA version

Component Identification:
