Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Description and Operation >> GF91.60-P-4004Q Driver/Front Passenger Sidebag, Location/Task/Design/Function

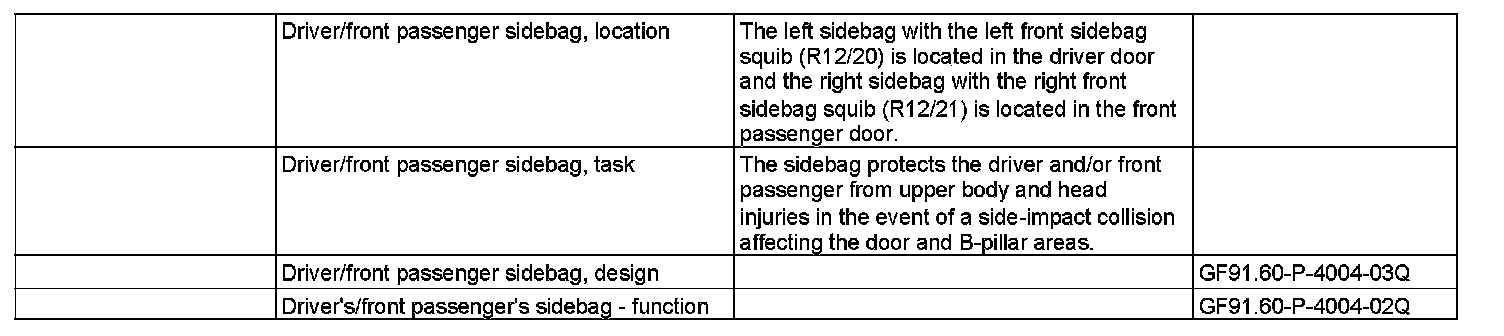

GF91.60-P-4004Q Driver/Front Passenger Sidebag, Location/Task/Design/Function



GF91.60-P-4004Q Driver/Front Passenger Sidebag, Location/Task/Design/Function

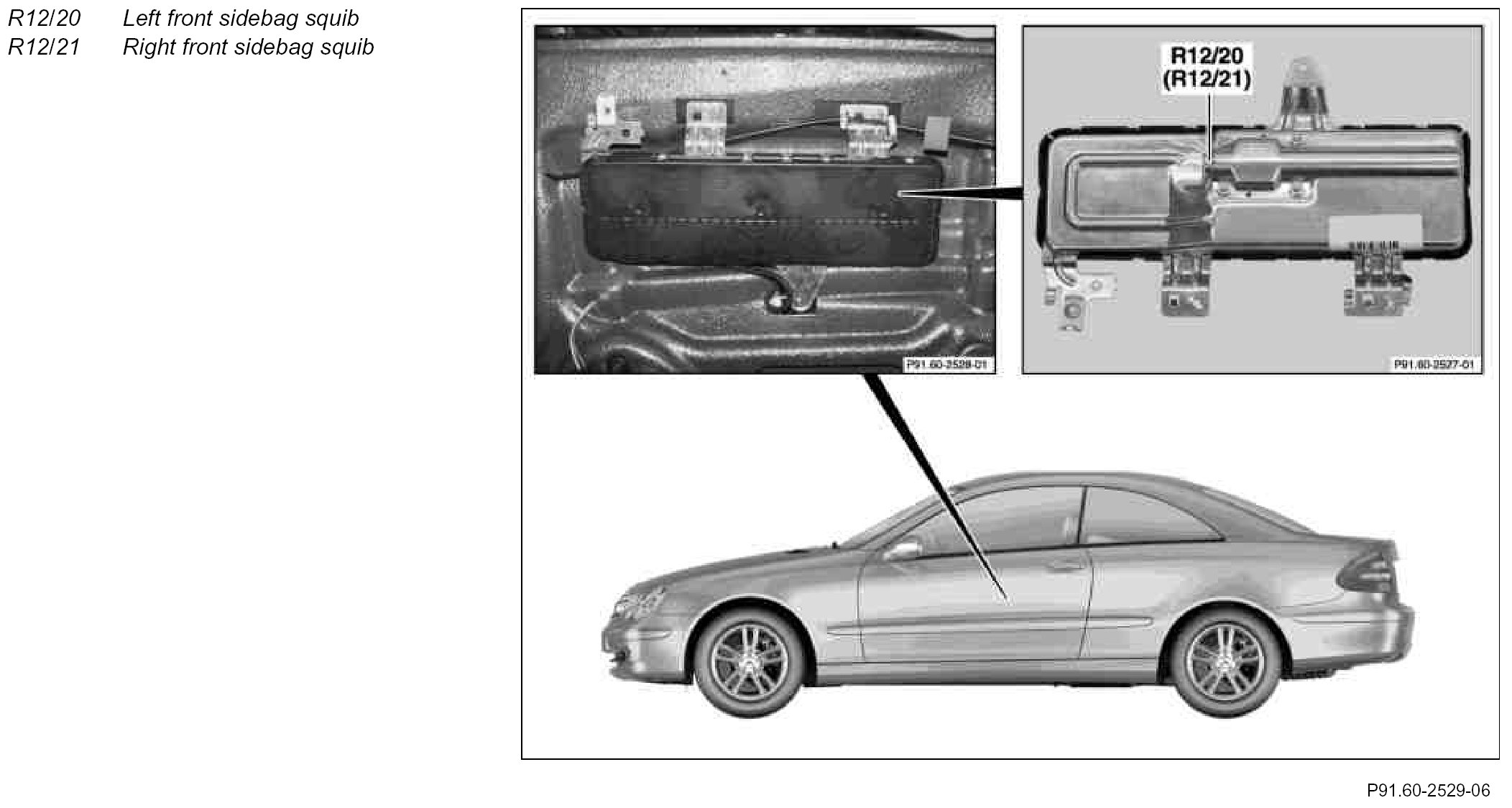

Component Identification:
