Emergency Call System Control Module PE82.95-U-2101BE

Emergency Call System Control Module PE82.95-U-2101BE
- control module N123/4

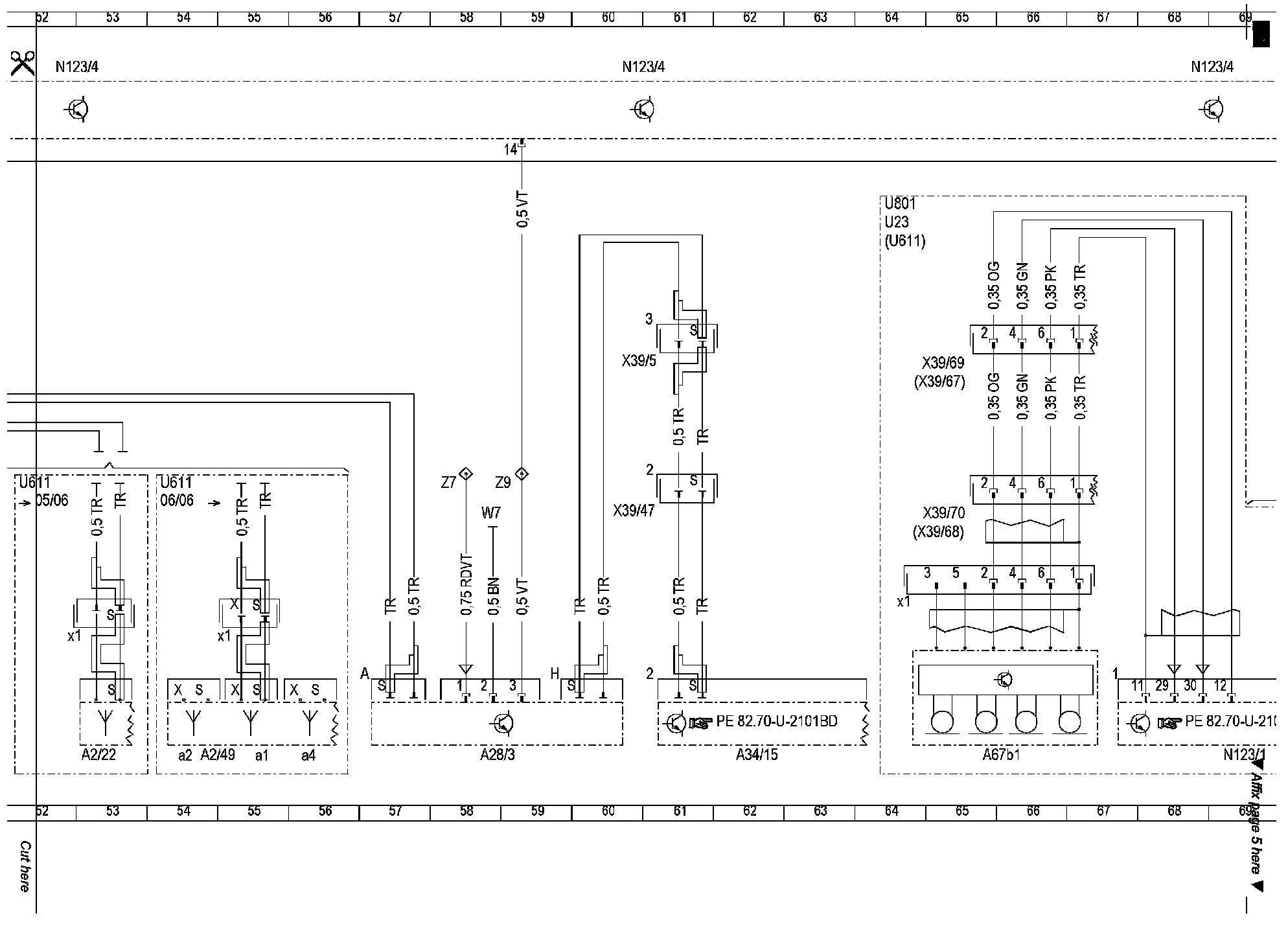

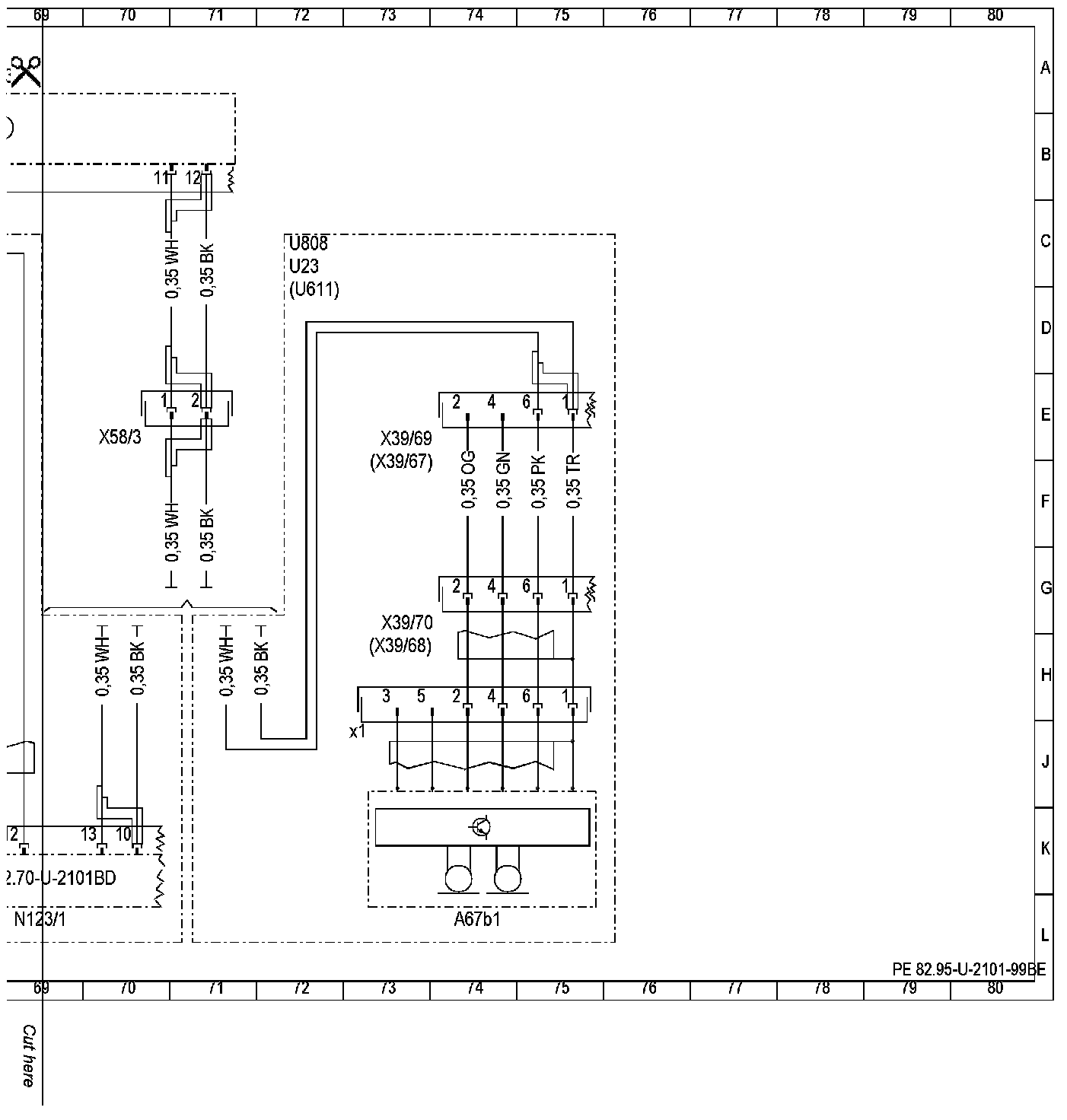

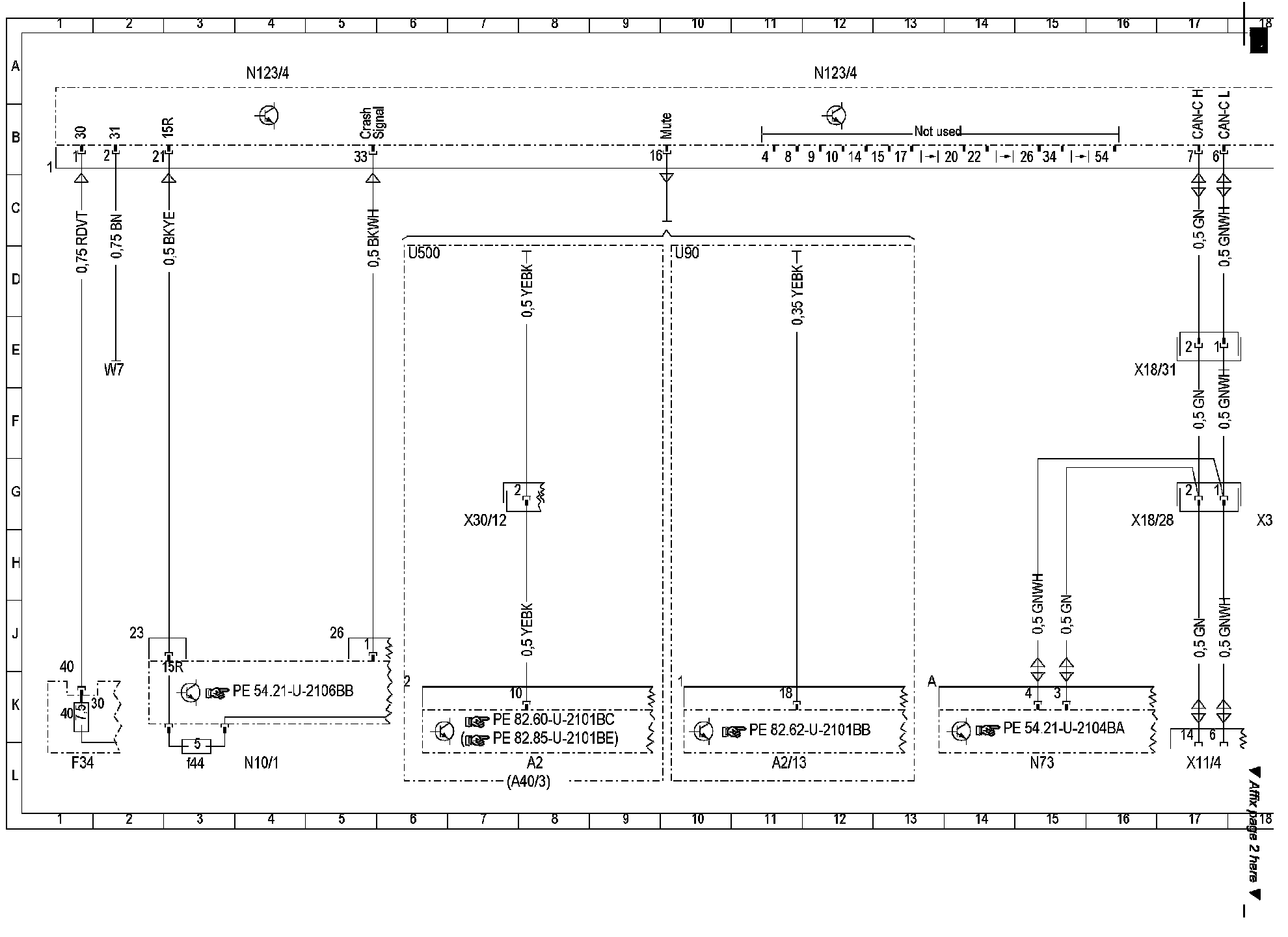

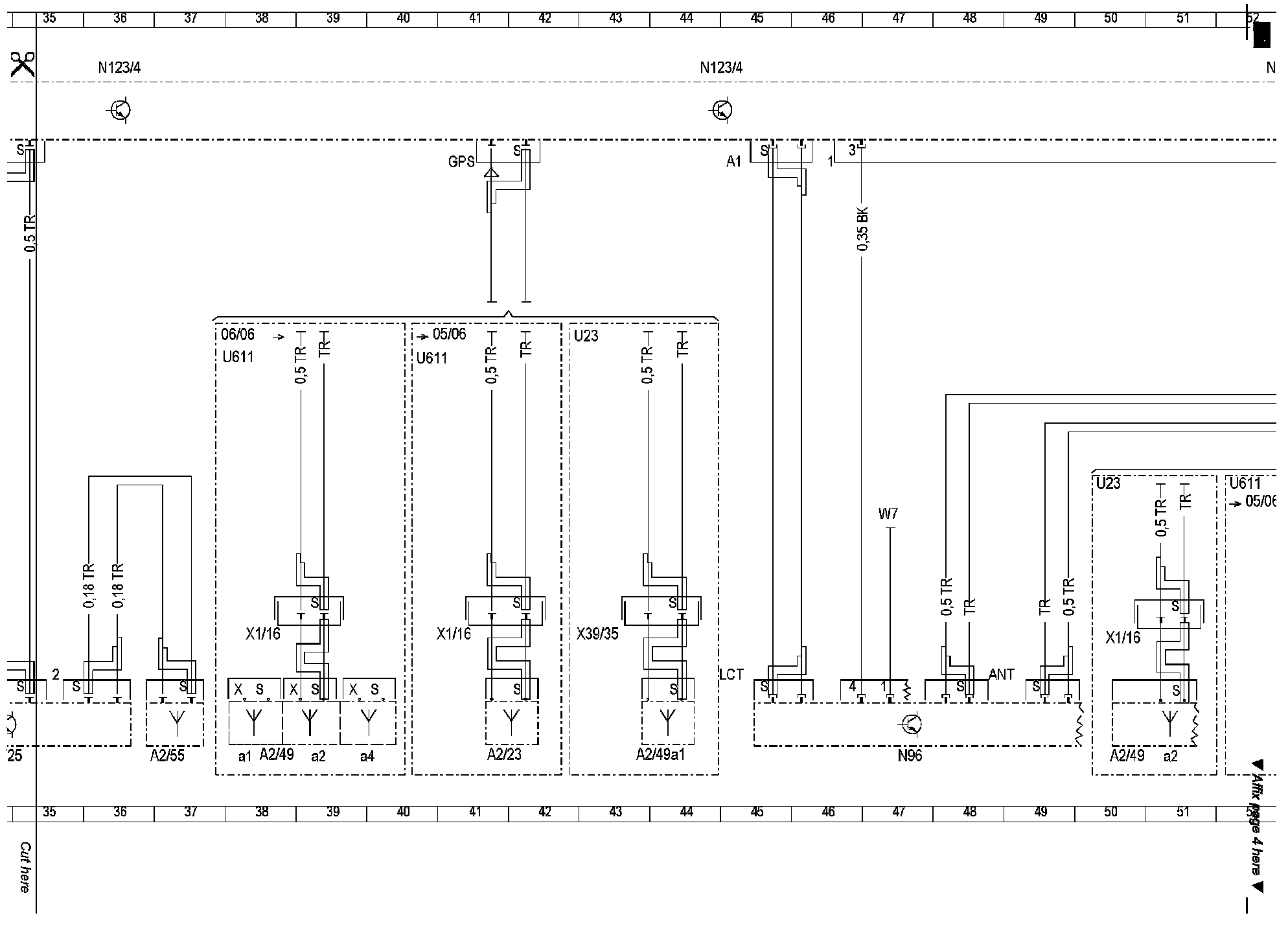

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

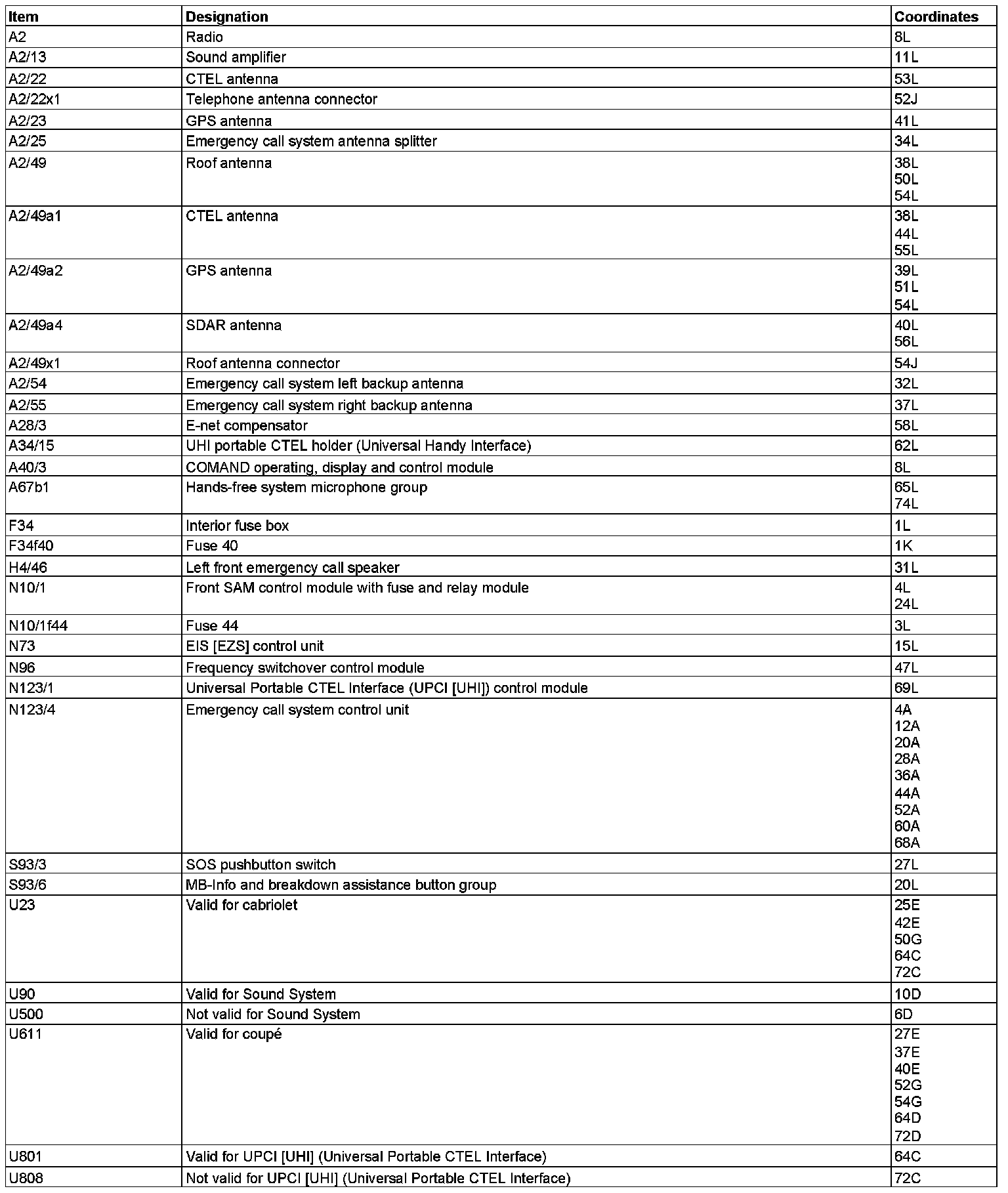

Component Description/Coordinates, A2 To U808:

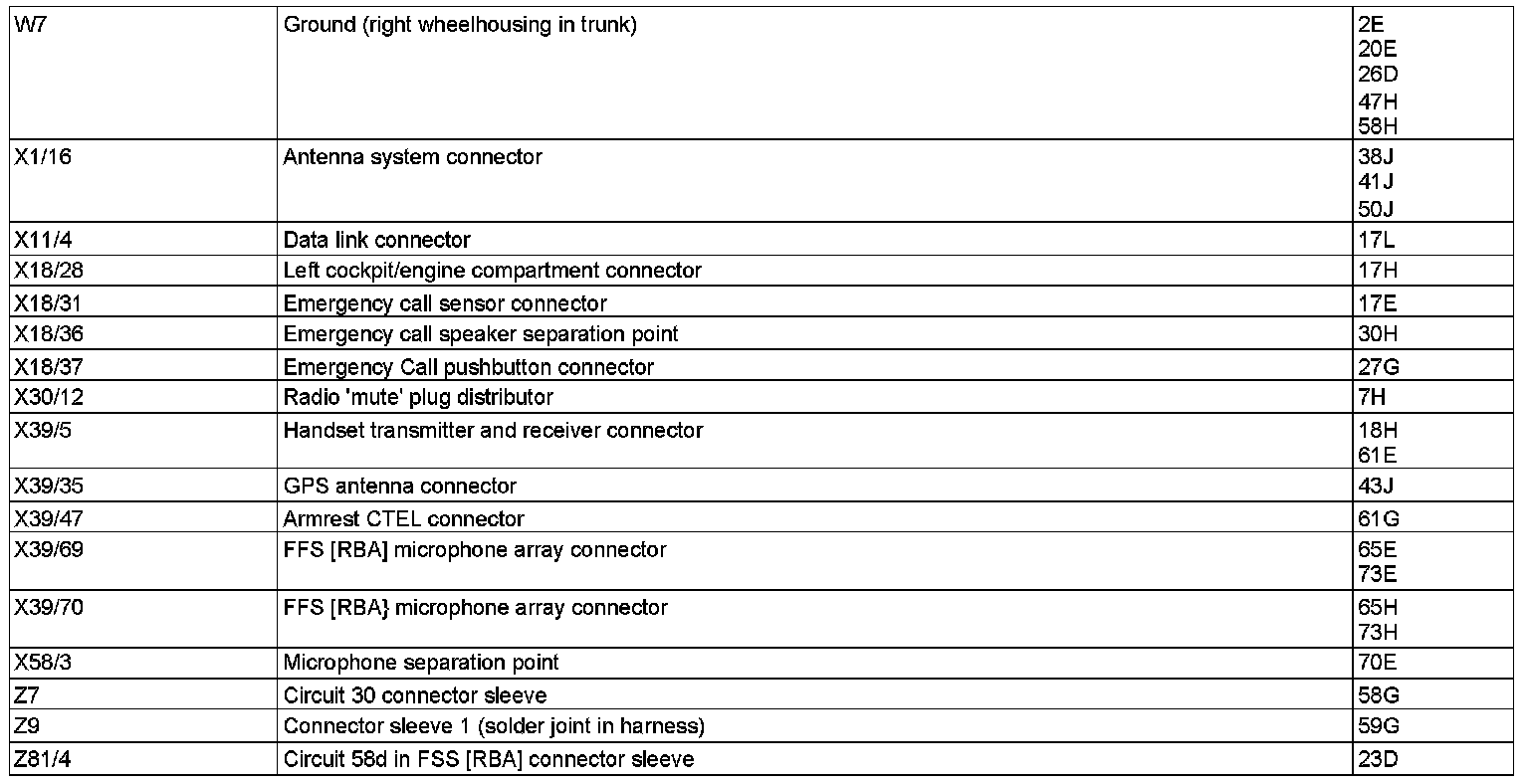

Component Description/Coordinates, W7 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
