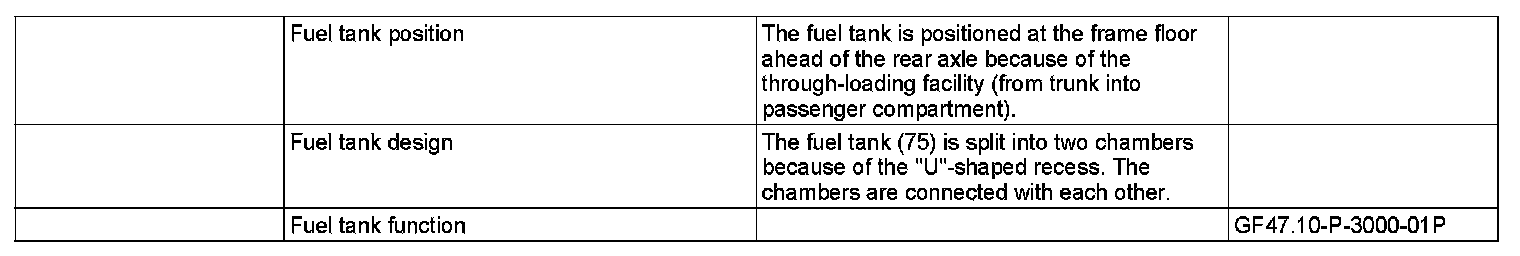

GF47.10-P-3000P Fuel Tank, Location/Design/Function

GF47.10-P-3000P Fuel Tank, Location/design/function
- MODEL 203 with ENGINE 111.951 /955, 112.912 /916 /946 /953 /961 up to Model Year 08 /modification year 07
- MODEL 209 with ENGINES 112.912 /955, 113.968

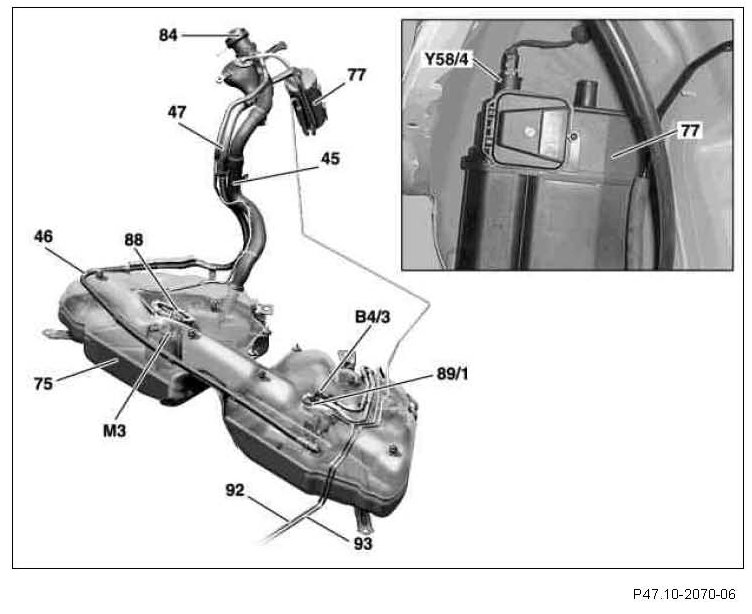

45 Filler neck
46 Fuel tank air admission line
47 Fuel line (switching off nozzle during refueling)
75 Fuel tank
77 Activated charcoal canister
84 Cap
88 Fuel delivery module
89/1 Left closing plate
92 Fuel pressure line to the engine
93 Purge line to purge control valve
B4/3 Fuel tank pressure sensor (United States of America)
M3 Fuel pump
Y58/4 Activated charcoal canister shut-off valve (United States of America)
