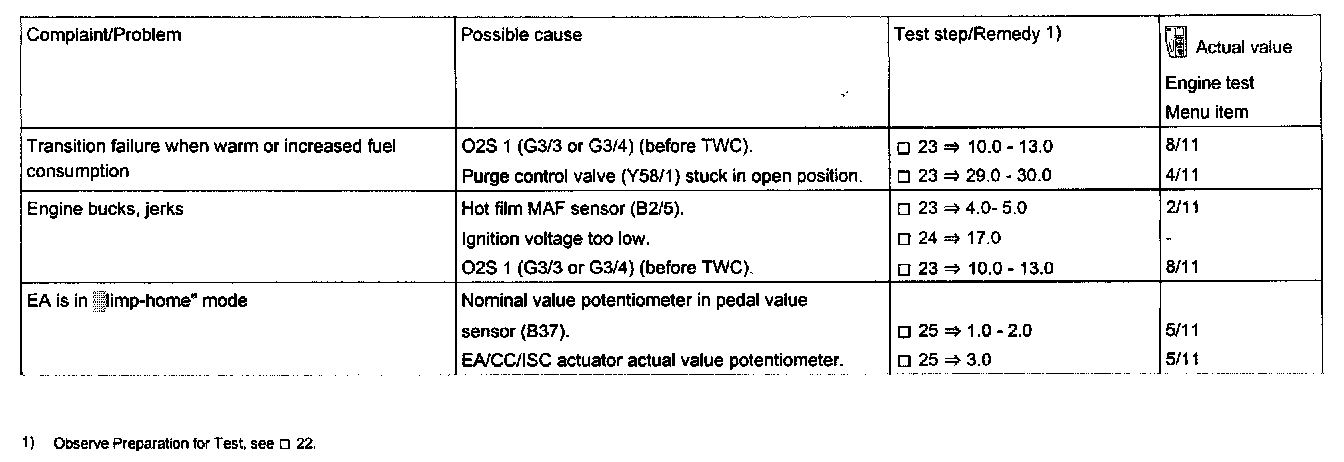

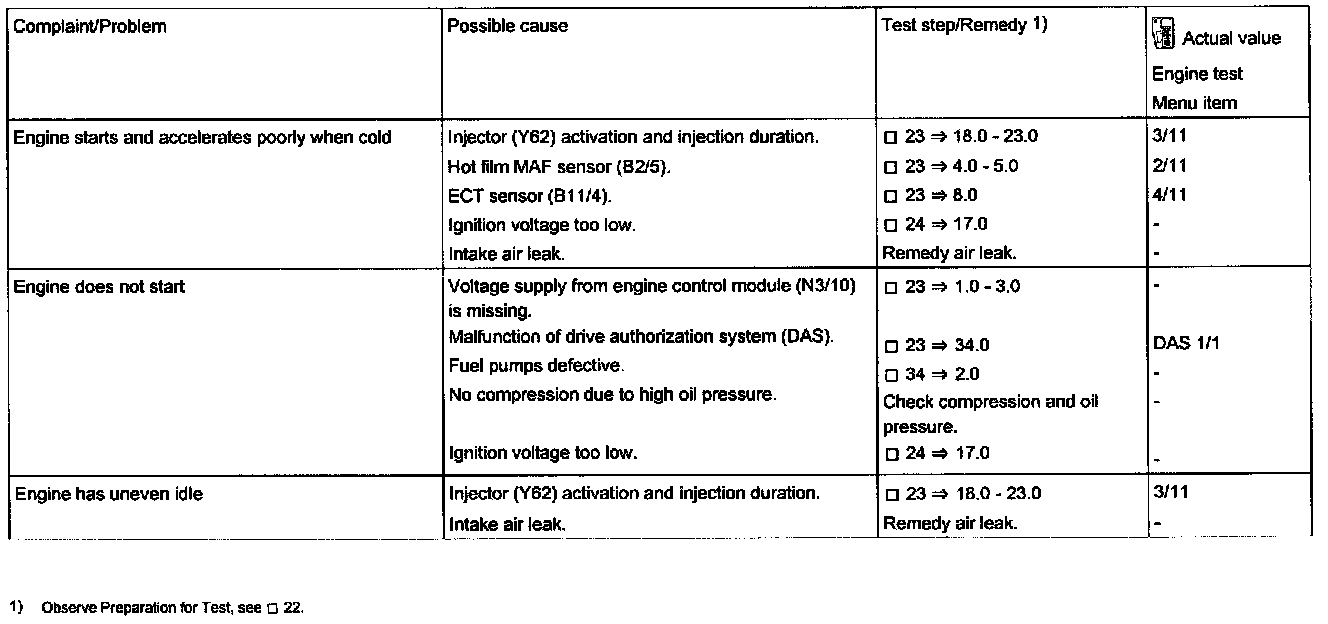

Symptom Related Diagnostic Procedures

WARNING:
- Risk of severe injury when touching ignition parts which produce high voltages. Do not touch ignition components.
- Persons with heart pacemakers are not to perform repairs on this type of ignition system.

Preparation for Test:
1. Review 11, 21, 22, 23, 24, 31, 33.
2. Connect HHT with test cable) to data link connector (X11/4),
Readout DTC fault codes.
