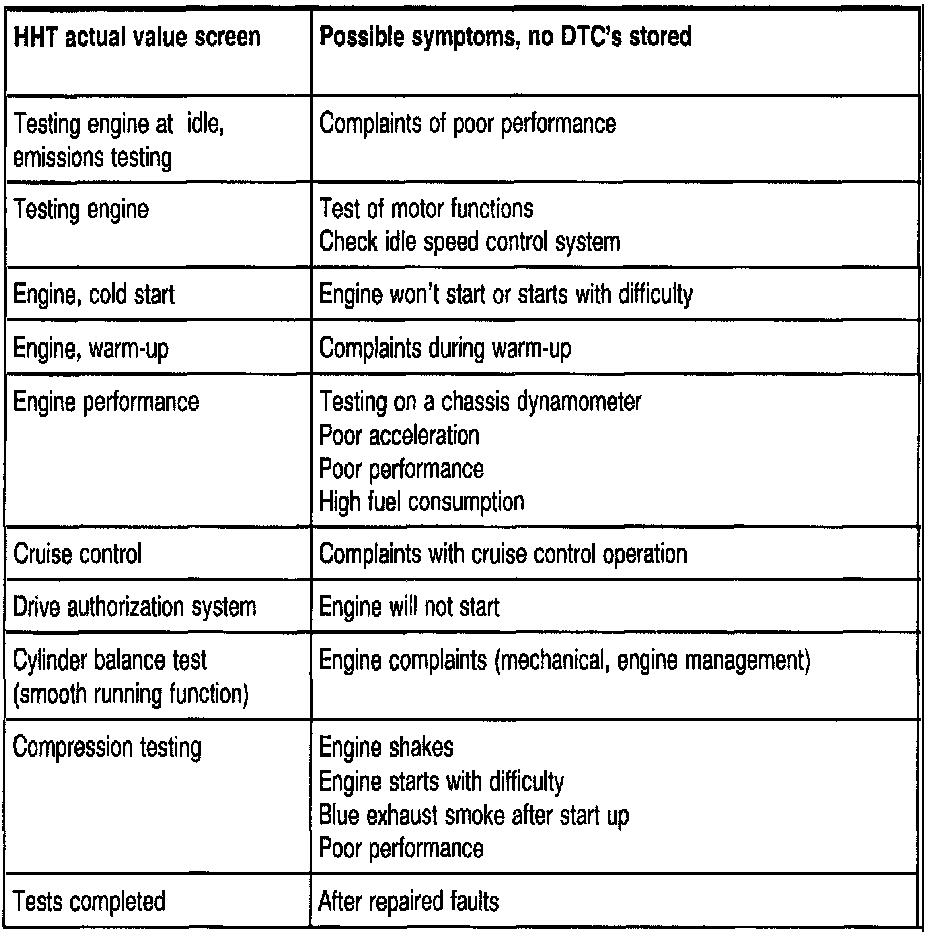

Additional Information to the Actual Value Screens
Additional Information to the Actual Value Screens
Refer to the appropriate Alldata section to determine the possible faults in the system if there are not DTC's stored.
