Preparation For Test - Section 31
Preparation for Test
1. Review sections: 11, 21, 22, 23, 24, 31, 33.
2. Review section 0. Reading Diagnostic Trouble Codes
3. Connect pressure gauge to test connection.
4. After completing test, using measurement glass (055), release fuel pressure and allow residual fuel to drain into glass (see Figure 1).

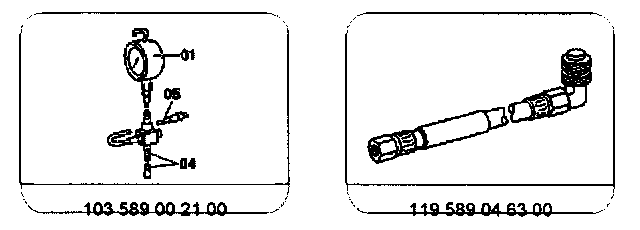

Special Tools:

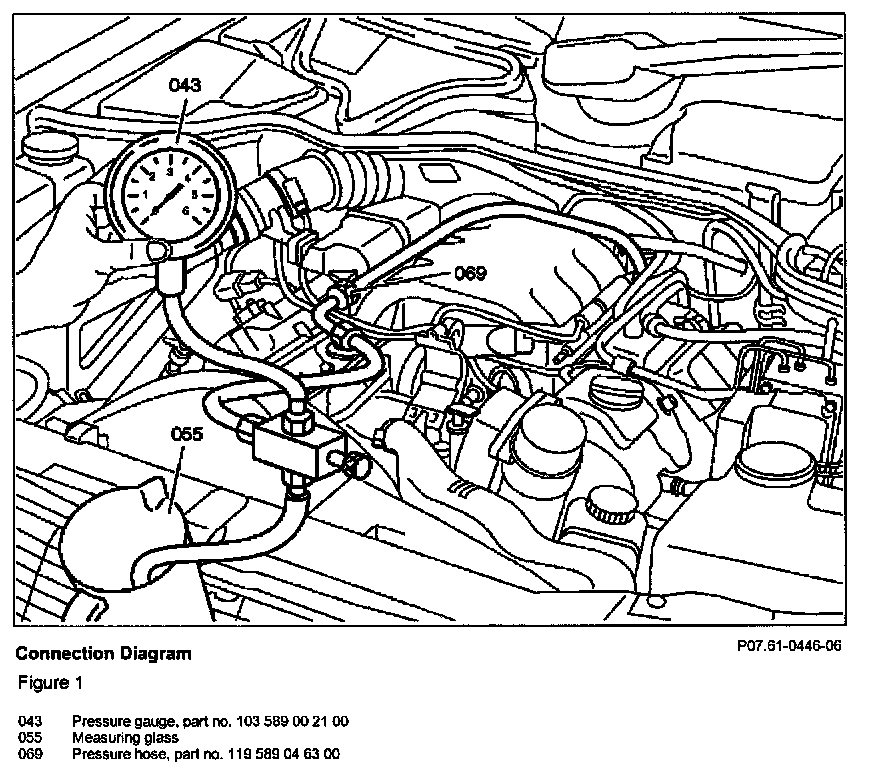

Figure 1 - Connection Diagram:
