Preparation For Test - Section 33

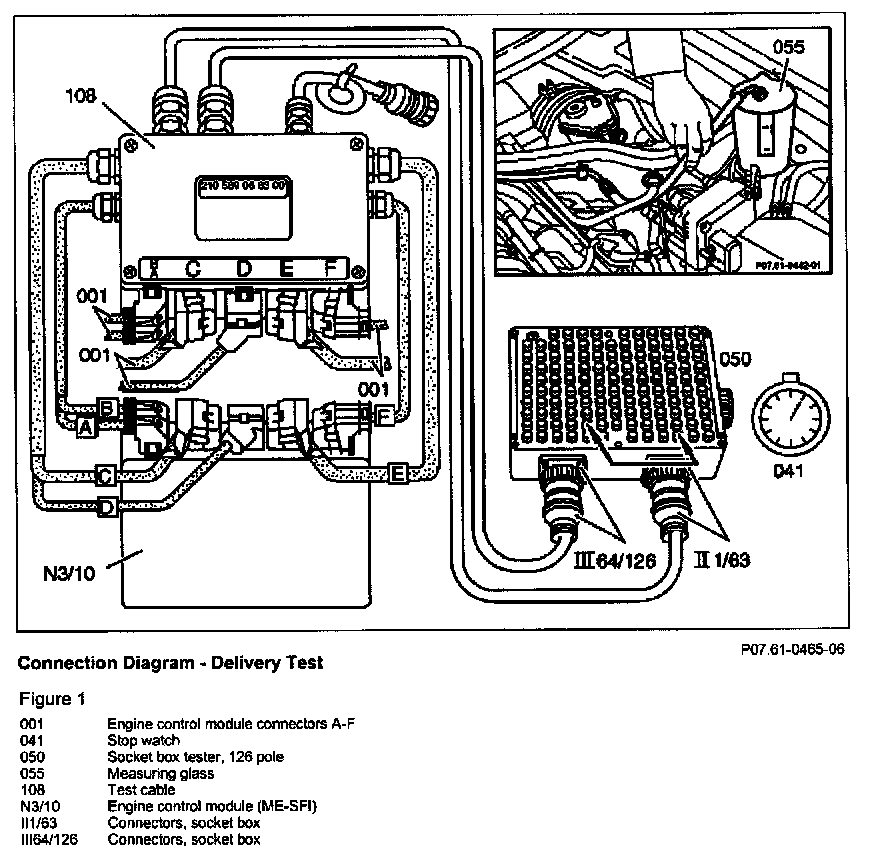

Figure 1 - Connection Diagram, Delivery Test:

- Connect socket box tester to engine control module (N3/10)

NOTE: When disconnecting the connectors on the engine control module remove the center connector (D) first, when reconnecting connectors install center connector (D) last.

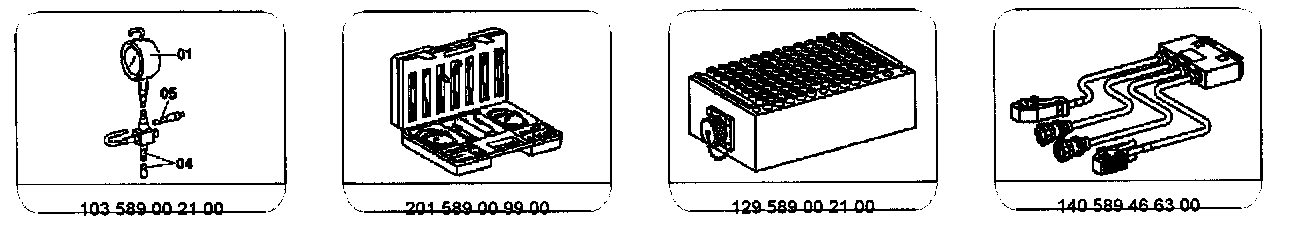

Special Tools:

Conventional tools, test equipment
Description Brand, model, etc.
Multimeter 1) Fluke models 23, 83, 85, 87
Stop watch Local purchase
Measuring glass (1 liter minimum) Local purchase

1) Available through the MBNA Standard Equipment Program.

Preparation for Test
1. Review sections: 11, 21, 22, 23, 24, 31, 33.
2. Review section 0.
3. Connect socket box to engine control module (N3/10).

NOTE: When disconnecting the connectors on the engine control module remove the center connector (D) first, when reconnecting connectors install center connector (D) last.
