GF00.20-P-0003-02QC Active Service System (ASSYST), Mercedes- Benz Driver Information Service
GF00.20-P-0003-02QC Active Service System (ASSYST), Mercedes- Benz Driver Information Service
- MODEL 209.3 Anzeige Restlaufzeit
- MODEL 209.4 Anzeige Restlaufzeit
15.03.07 The document has been updated to this date and will no longer be subject to revision.

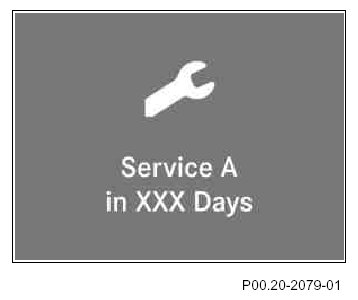

Remaining time (The example shows the representation for Service A)
Conditions:
- Remaining time (in days) x 40 < remaining distance (in km)
- Remaining time (in days) x 20 < remaining distance (in miles)
The remaining time is displayed:
- automatically after the warning threshold has been reached; 5 s after the transmitter key (A8/1) was turned into position "circuit 15 ON" or the engine was started.
The service symbol and "Service A/B in XXX days" appear for 30 s.
- Automatically if the remaining time has expired; 5 s after the transmitter key (A8/1) was turned into position "circuit 15 ON" or the engine was started. The service symbol and "Perform Service A/B" appear for 30 s.
- Automatically if the remaining time has expired; 5 s after the transmitter key (A8/1) was turned into position "circuit 15 ON" or the engine was started. The service symbol and "Service A/B exceeded by XXX days" appear for 30 s. A brief warning tone is additionally sounded.
- Upon driver request, the service symbol "Service A/B in XXX days" appear for 30 s.
The display is carried out with a resolution of one day.
It CAN-Be hidden by pressing the instrument illumination rheostat and reset button (A1r1) on the instrument cluster (A1).
If the Active Service System (ASSYST) is lacking measured values due to sensor failure, for example, it switches to stored substitute values. A corresponding entry is made in the diagnostic trouble code memory of the relevant control unit. If the operating voltage fails, the data are retained. The times without operating voltage (empty or disconnected batteries) are not recorded, but may be subsequently taken into consideration via STAR DIAGNOSIS.
