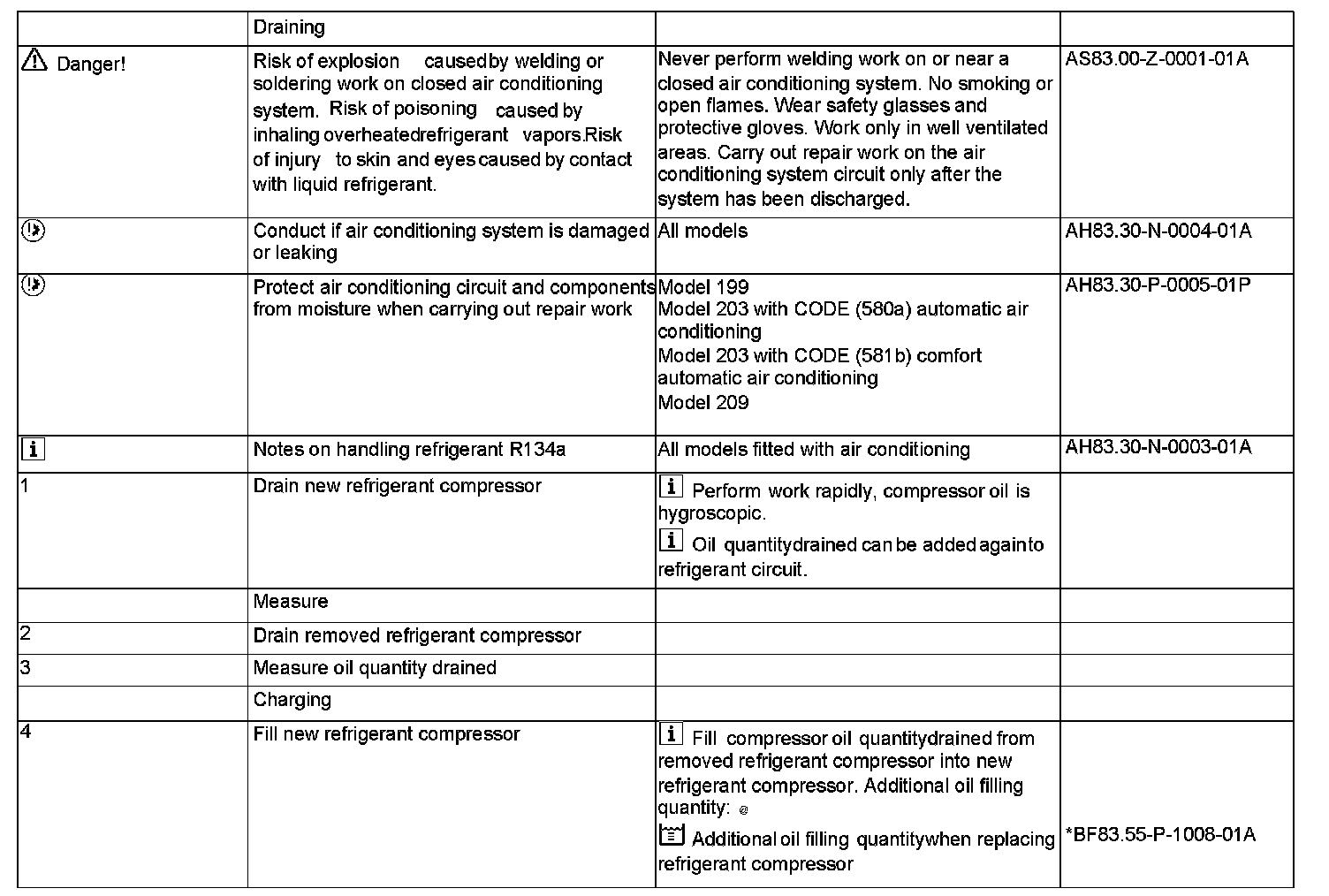

AR83.55-P-5250P Correct Oil Level In Air Conditioning System When Replacing Refrigerant Compressor



AR83.55-P-5250P Correct Oil Level In Air Conditioning System When Replacing Refrigerant Compressor
- with CODE (580) Automatic air conditioning [model 203]
- with CODE (581) Comfort automatic air conditioning [model 203]

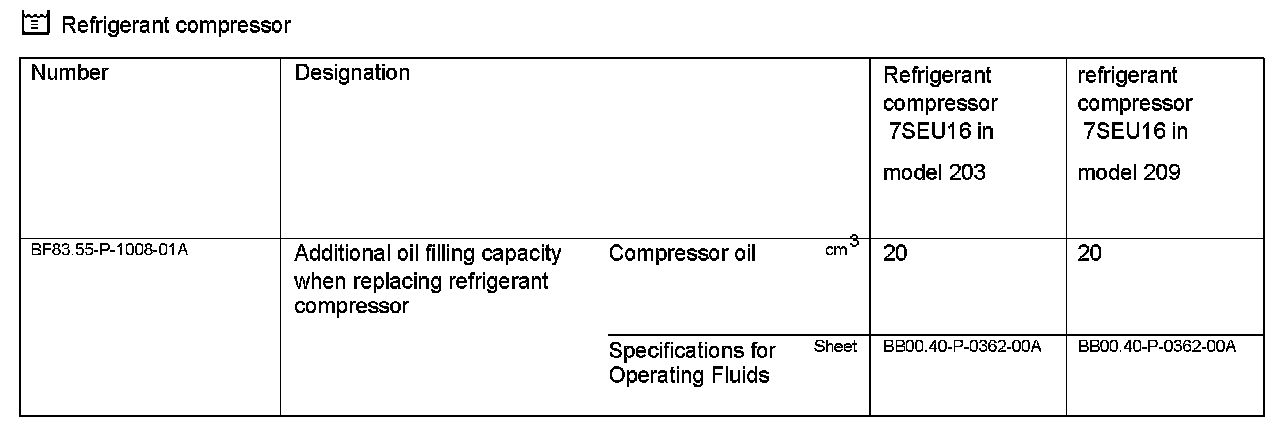

Refrigerant Compressor:
