Home >> Mercedes Benz >> 2004 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant >> Service and Repair >> AR83.30-P-5253P Correct Fluid Level In the Air Conditioning In the Case of Sudden System Evacuation

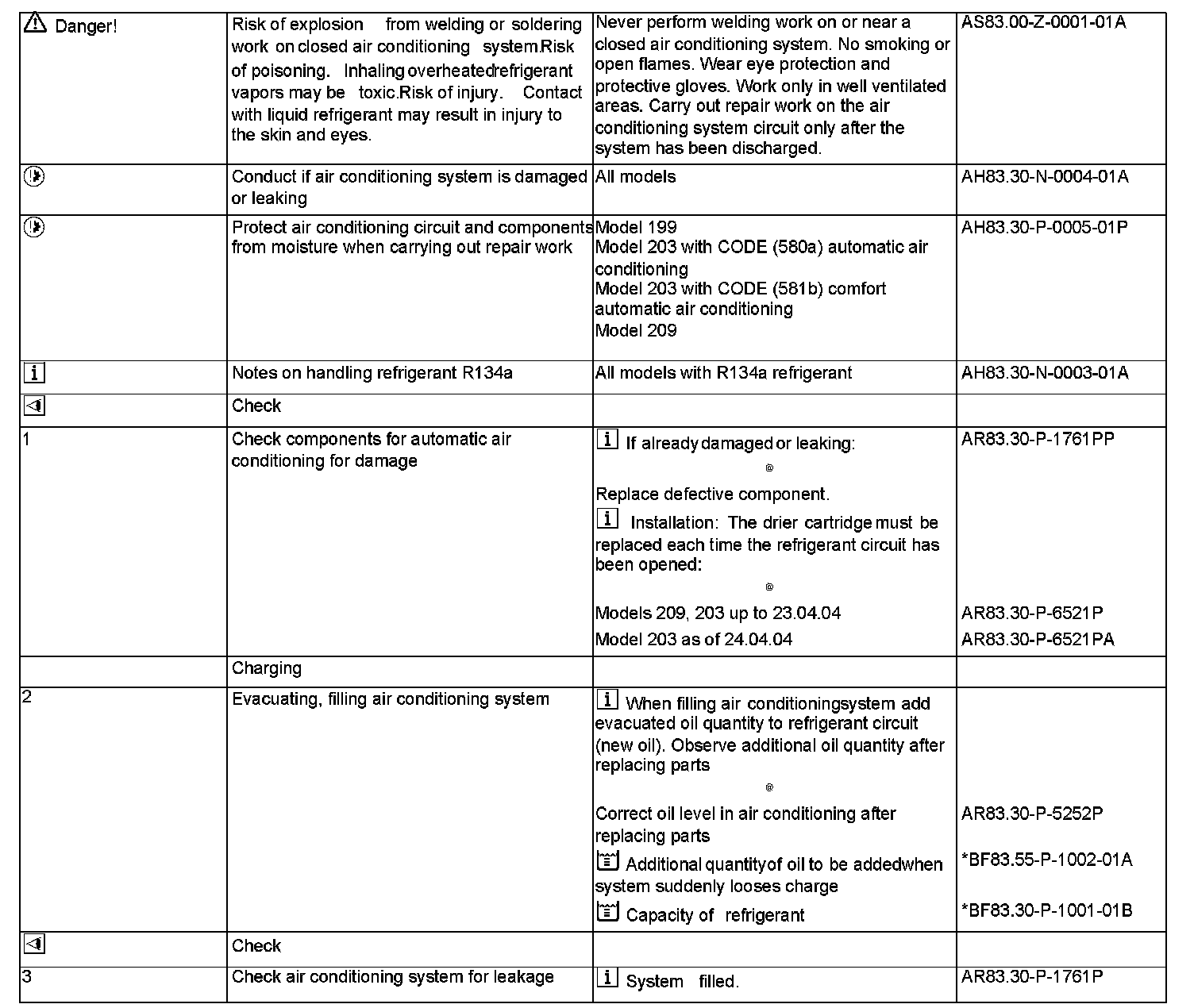

AR83.30-P-5253P Correct Fluid Level In the Air Conditioning In the Case of Sudden System Evacuation



AR83.30-P-5253P Correct Fluid Level In the Air Conditioning In the Case of Sudden System Evacuation

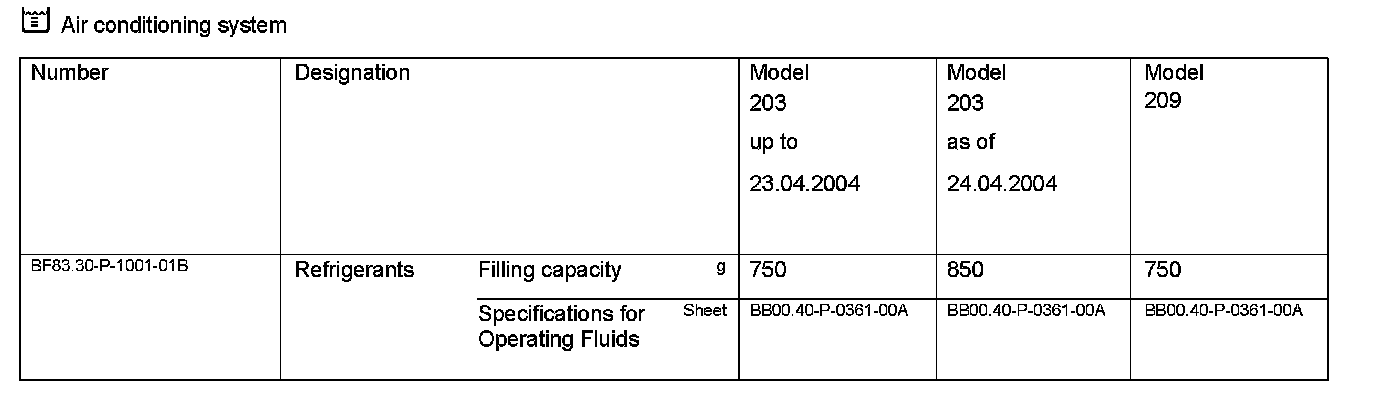

Air Conditioning System:

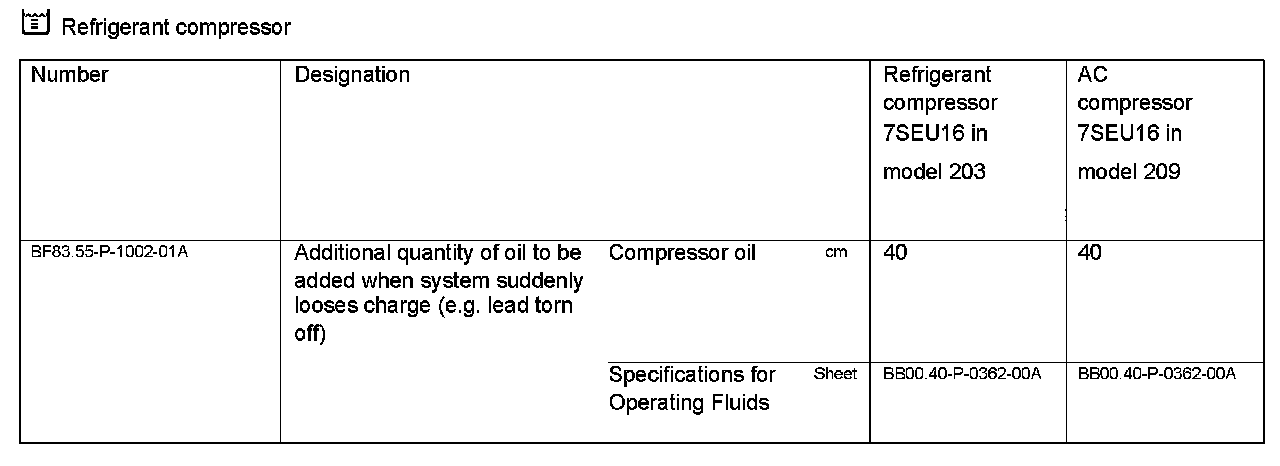

Refrigerant Compressor:
