Mercedes Benz
>>
2004
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Testing and Inspection
>>

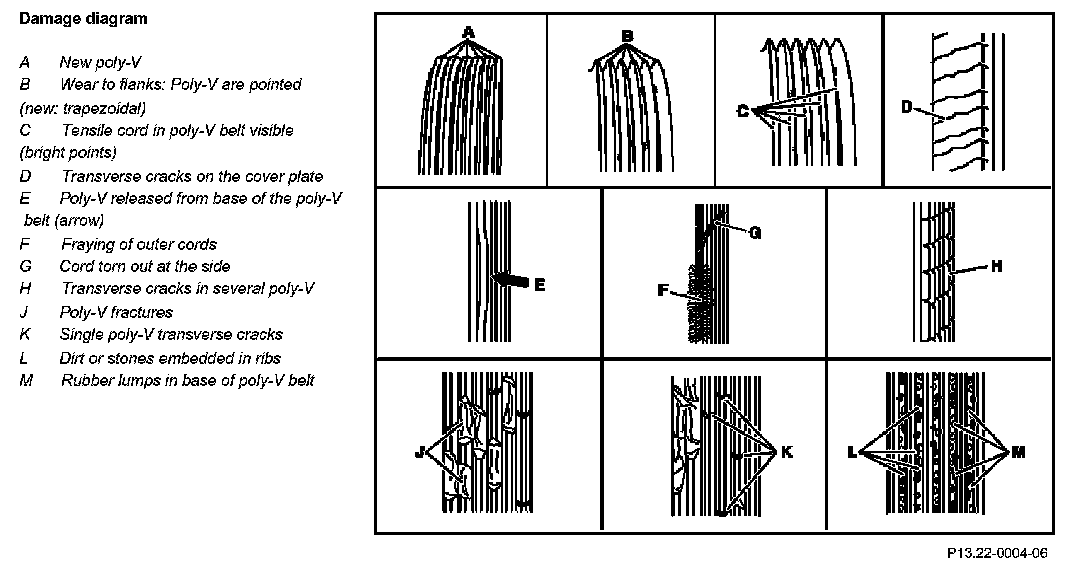

AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear

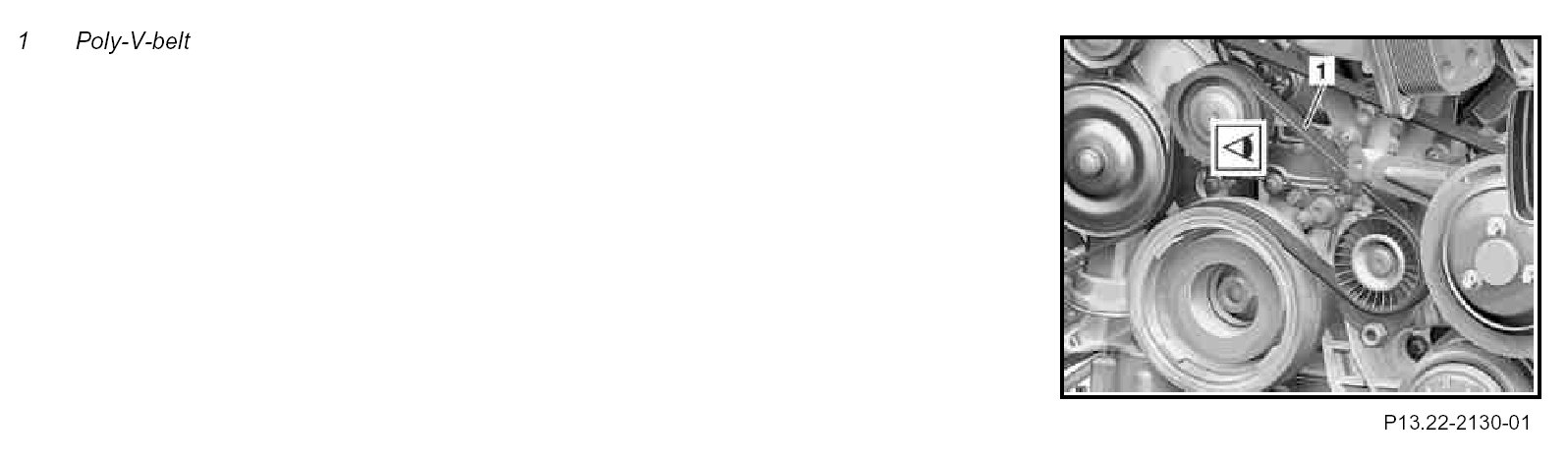

Component Identification:
Component Identification:

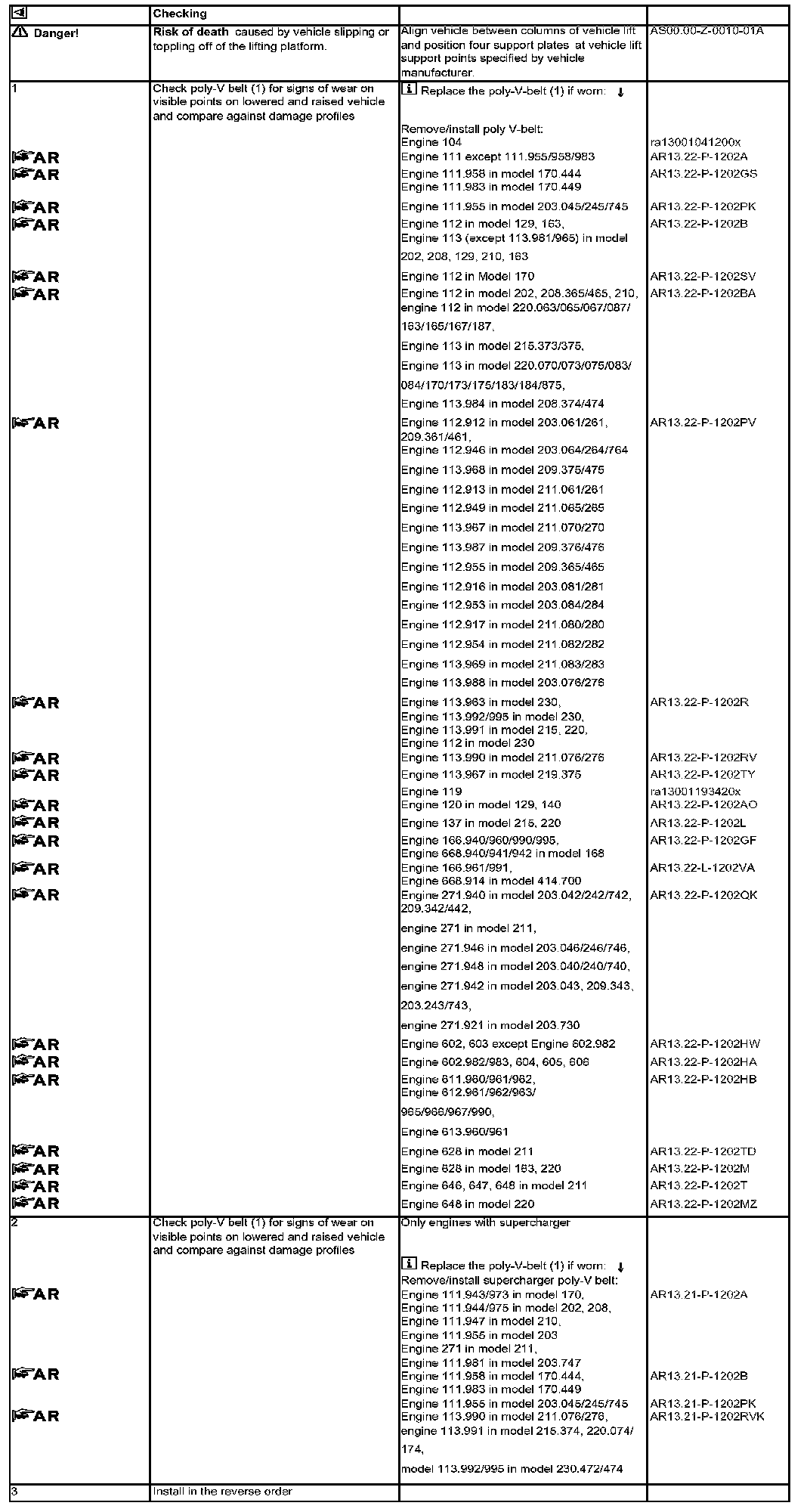

Steps 1 - 3:
