AR42.10-P-0010P Bleed Brake System

Bleed brake system

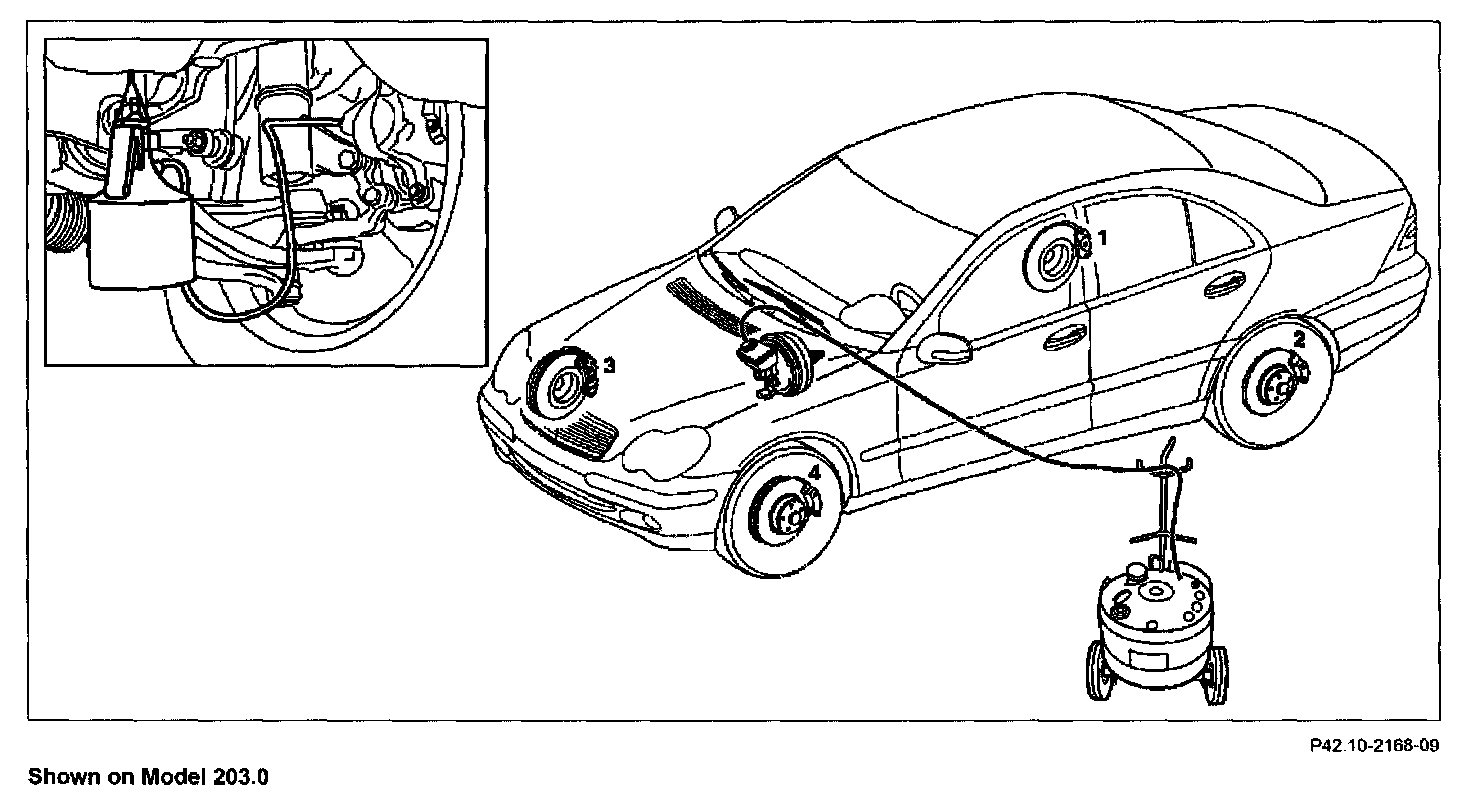

Shown On Model 203.0:

Bleeding

DANGER:
- Risk of poisoning from swallowing brake fluid. Risk of injury from brake fluid coming into contact with skin and eyes.
- Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.

CAUTION:
- See brake fluid notes
- See notes on repairs to brake system
- See notes on externally invisible brake fluid loss

1 Connect filling and bleeding device

NOTE: Pay attention to manufacturer's operating instructions.

- Bleeding pressure 2 bar.

DANGER:
- Risk of death. Death may result if vehicle slips or topples from the lifting platform.
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

2 Jacking up and supporting vehicle
3 Carrying out bleeding operation
4 Connect filling and bleeding unit

Inspect
5 Check brake fluid in brake fluid reservoir and correct if necessary.
6 Check brake system for leaks.
